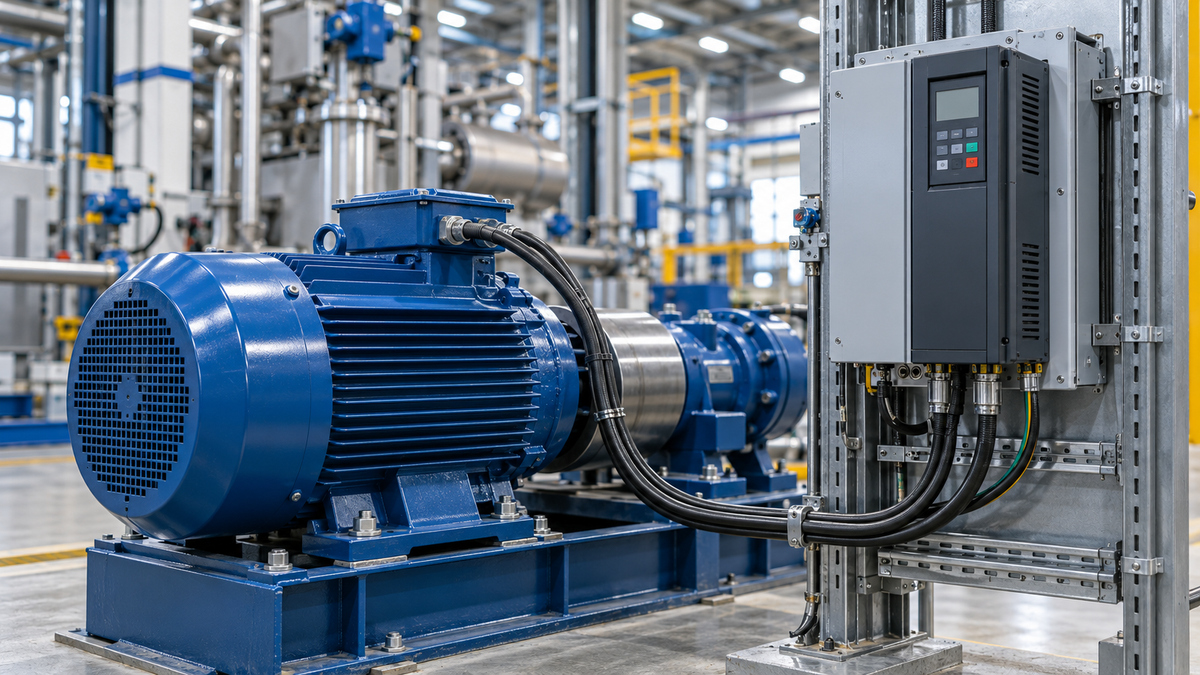

A variable frequency drive (VFD) provides adjustable motor speed by varying the frequency and voltage supplied to an electric motor. However, not every motor is suitable for VFD operation. Motor type, winding insulation, cooling arrangements, load characteristics, and drive compatibility all affect whether a motor can operate reliably under variable-speed control.
For industrial applications, selecting the correct combination of motor and drive is essential for controlling speed, managing torque, limiting overheating, and avoiding premature equipment failure. A standard three-phase induction motor may operate successfully with a VFD under suitable conditions, while single-phase motors, specialised motor designs, and motors exposed to demanding operating conditions need additional assessment.
This guide explains which motors can be used for variable frequency drives, the technical limitations to consider, and how to select a compatible drive for an industrial application.
Can a VFD Be Used on Any Electric Motor?
No. A VFD cannot be used with every electric motor. Compatibility depends on the motor’s electrical design, the drive’s output characteristics, and the requirements of the driven equipment.
Three-phase squirrel-cage induction motors are among the most common candidates for VFD control. Many can operate across a range of speeds, provided the voltage, current, frequency, cooling, and insulation requirements are addressed.
Other motor types need more careful selection:
- Standard three-phase induction motors: Often suitable, subject to manufacturer approval, operating speed, load, and insulation limitations.
- Inverter-duty motors: Designed for the electrical and thermal demands associated with VFD operation. These are often preferred for continuous variable-speed industrial applications across various industries.
- Single-phase induction motors: Generally unsuitable for conventional three-phase VFDs. Capacitor-start, capacitor-run and other single-phase designs may lose their required starting or running characteristics when supplied with variable-frequency output.
- Permanent-magnet synchronous motors: Need a compatible drive with the appropriate motor-control algorithm and configuration.
- Brushless DC motors: Generally need a dedicated electronic controller rather than a conventional induction-motor VFD.
- Wound-rotor and other specialised motors: Need confirmation of the drive topology and control method before making the connection.
Here, the major difference is that a VFD is not simply a universal speed controller. It must be designed and configured to operate the electrical architecture of the motor.
How Variable Frequency Drives Control Motor Speed
A conventional AC induction motor’s synchronous speed is determined by the supply frequency and the number of magnetic poles. The relationship is:
Synchronous speed (rpm) = 120 x frequency / number of poles
The actual rotor speed of an induction motor is slightly lower under load due to slip. A VFD changes the output frequency to regulate motor speed. It also adjusts the output voltage according to the selected control method, such as volts-per-hertz control or vector control.
This relationship makes VFDs useful for applications including pumps, fans, conveyors, mixers, and machine tools. However, reducing frequency does not automatically guarantee adequate torque, cooling, or safe operation. Those factors must be assessed against the motor’s operating limits.
Which Motors Are Compatible With a Variable Frequency Drive?
Compatibility of a motor should be established using the nameplate from the manufacturer, technical datasheet, and drive documentation rather than the motor’s rated power alone.
1. Standard Three-Phase Induction Motor
Many standard three-phase induction motors can be operated from a VFD, including motors that are originally installed for fixed-frequency operations. This can make a drive-based retrofit practical when an existing machine needs adjustable speed. However, the suitability of the existing motor depends on the following conditions:
- The motor voltage and current must be compatible with the VFD output.
- The winding insulation must tolerate the drive’s pulse-width-modulated waveform and associated voltage transients.
- The motor must remain within its permitted thermal and mechanical speed range.
- The load must not demand more torque or current than the motor drive can provide.
- The installation must address cooling, cable length, and bearing-current risks where applicable.
2. Inverter-Duty Motors
An inverter-duty motor is specially designed to work under the electrical stresses linked with variable-frequency power. Depending on its power, design, and rating, it may include improved winding insulation, a defined constant-torque speed range, and provisions for managing bearing currents.
These motors are worth considering when the application includes:
- Continuous variable-speed operation.
- Low-speed operation under significant mechanical load.
- Frequent acceleration and deceleration.
- Long motor cable runs or challenging PWM voltage conditions.
- Critical machinery where unplanned downtime is expensive.
3. Single-Phase Motors
A conventional single-phase VFD should be connected directly to an ordinary single-phase motor without explicit confirmation that the motor and drive are designed for that arrangement.
Single-phase induction motors often depend on capacitors, switching mechanisms, and auxiliary windings in order to establish starting torque. Changing the supply frequency can alter these operating characteristics and cause starting problems, excessive current, or even overheating. Some specialised drives support particular single-phase motor types, but compatibility must be confirmed for the exact motor model.
Where speed is required, a three-phase motor paired with a compatible VFD may be a more practical engineering solution, provided the supply, installation and mechanical requirements permit the change.
4. Permanent-Magnet and Bushless Motors
Permanent-magnet synchronous motors and brushless DC motors use different control principles from conventional induction motors. Their operation depends on the motor’s electrical characteristics and the controller’s commutation or field-oriented control strategy.
A standard induction-motor VFD should not be assumed to support these motor types. Some advanced drives also offer permanent-magnet motor control, but the drive must explicitly support the motor configuration and any required position or speed feedback.
What Determines Motor-VFD Compatibility?
Several factors should be checked before selecting a VFD:
| Factor for selection | Technical requirement | Potential consequences if overlooked |
|---|---|---|
| Motor voltage | Match the motor’s rated voltage to the available supply and VFD output | Underperformance, overcurrent, or insulation stress |
| Rated current | Select the drive using motor nameplate current and the required duty rating | Drive overload trips or inadequate motor protection |
| Motor type | Confirm that the drive supports the motor’s electrical design | Failure to start or incorrect control |
| Frequency and speed range | Verify minimum and maximum permitted operating needs | Overheating, excessive vibration, or mechanical damage |
| Torque demand | Match drive overload capability and motor torque characteristics to the load | Stalling or thermal overload |
| Winding insulation | Check suitability for PWM output and voltage transients | Premature insulation failure |
| Cooling | Confirm adequate cooling throughout the intended speed range | Excessive winding temperature |
| Cable and bearings | Evaluate cable length, reflected-wave voltage, and bearing-current risk | Insulation damage or bearing fluting |
The correct specifications depend on the complex motor-drive-load system. A drive’s kilowatt or horsepower rating is only one part of the selection process.
Can a Standard Motor Run at Low Speed on a Variable Frequency Drive?
Yes, some standard motors can operate at reduced speed, but the permissible load may need to be reduced as well. This difference between constant-torque and variable-torque applications is important.
Constant-torque loads: Conveyors and positive-displacement equipment may need substantial torque even when operating at low speed. Reduced shaft-fan airflow can therefore create a thermal limitation.
Variable-torque loads: Centrifugal fans and pumps often need less torque as speed decreases. Under suitable operating conditions, this can reduce motor loading and make low-speed operation easier to manage thermally.
However, these are general load characteristics, not guarantees. Starting requirements, process pressure, fluid properties, gearbox limitations, and minimum operating speeds can change the final result.
For demanding low-speed duty, specify a motor with a documented torque-speed envelope and suitable cooling arrangements rather than assuming the motor can deliver rated torque throughout the entire frequency range.
How to Select a Correct VFD for an Industrial Motor
A reliable selection process starts with the motor itself and driven equipment rather than the drive catalogue.
Step 1: Record the motor nameplate data
Document the rated voltage, current, frequency, power, phase configuration, and duty rating. Record the connection arrangement and any manufacturer restrictions on inverter-fed operation.
Step 2: Establish the load requirements
Determine the required speed range, starting torque, continuous torque, acceleration time, braking requirements, and overload duration. A conveyor that must start while fully loaded has different requirements from a centrifugal fan that accelerates gradually.
Step 3: Check drive current and overload capacity
Compare the motor’s rated current with the drive’s continuous output-current rating and then assess the required overload capability and its permitted duration.
Do not select a VFD on kilowatt rating alone. Two applications with the same motor power can need different drive ratings because of their torque and duty characteristics.
Step 4: Verify speed and thermal limits
Check the motor manufacturer’s permissible operating range, cooling requirements, and maximum mechanical speed. Assess whether an auxiliary fan, temperature monitoring, or derating is required.
Step 5: Review installation conditions
Confirm the cable length, earthing equipment, electromagnetic compatibility requirements, and need for output filtering or bearing protection.
Step 6: Configure and commission the drive
Enter the correct motor nameplate data and select the correct control mode. Complete the manufacturer’s commissioning procedure, verify rotation direction, test operation across the required speed range, and monitor current, temperature, and vibration under representative load.
Commissioning should be performed by suitably qualified personnel in accordance with the drive manufacturer’s instructions and applicable electrical safety requirements.
When You Should Replace a Standard Motor With an Inverter-Duty Motor?
Retaining an existing motor may reduce initial retrofit costs, but the decision should account for operating risk and expected service life.
| Application condition | Recommended approach |
|---|---|
| Existing three-phase motor with moderate speed variation | Assess the motor manufacturer’s approval for operating limits |
| Continuous low-speed operation with high torque | Evaluate an inverter-duty motor and independent cooling |
| Long motor cable or elevated voltage-transient risk | Assess insulation suitability and appropriate output filtering |
| Critical process with costly downtime | Prioritise documented motor-drive compatibility and reliability |
| Single-phase motor needs speed control | Verify dedicated drive compatibility or assess an alternative motor arrangement |
| Permanent-magnet or brushless motor | Specify a drive explicitly designed for the motor type |
Choosing Variable Frequency Drives from Industrial Motor Warehouse
Selecting a VFD for industrial application needs more than matching a drive to the rated power of the motor. The motor type, load profile, required speed range, electrical installation, and operating environment all influence the specification.
Industrial Motor Warehouse supplies industrial motor and drive-related equipment for applications where compatibility and correct component selection matter. When reviewing the available drive options, establish the motor’s electrical requirements and application duty before deciding which product is suitable. Therefore, before buying, you should confirm:
- The drive’s supported motor type and control method.
- Input supply requirements and output voltage.
- Continuous output current and overload capability.
- Compatibility with the motor’s rated frequency and speed range.
- Required accessories, protection, and installation provisions.
Explore Industrial Motor Warehouse to review the available industrial motor and drive products. For a retrofit or a demanding variable-speed application, use the motor and drive manufacturer’s technical documentation to verify compatibility before ordering.
Conclusion
Variable frequency drives provide accurate speed control and can also improve process flexibility, but they are not universally compatible with every electric motor. Standard three-phase induction motors are often suitable, while single-phase, permanent-magnet, and other specialised motors need careful assessment of the drive’s control capabilities.
For reliable operation, evaluate motor voltage and current, load torque, operating speed, cooling, winding insulation, cable length, and bearing protection. Confirm the final selection against the relevant manufacturer documentation before installation.
Industrial Motor Warehouse is a useful starting point for reviewing industrial motor and drive equipment. A technically sound motor-drive specification helps minimise avoidable failures, protect equipment and achieve the required operating performance.
Frequently Asked Questions
Can I connect a VFD to any three-phase motor?
No. Many three-phase induction motors can operate with a suitable VFD, but compatibility depends on insulation, cooling, current, speed limits, load duty and installation conditions. Specialised motors may require a dedicated drive or control method.
Can I use a VFD with an old electric motor?
Potentially. An older motor can sometimes be retained if its condition and design are suitable for inverter-fed operation. Assess the winding insulation, bearings, cooling, cable length and expected operating range before commissioning it with a VFD.
Are variable motors and variable speed motors the same thing?
The term variable motor is sometimes used informally when referring to a motor operating at adjustable speeds. A variable speed motor is a motor-drive arrangement capable of changing operating speed. In many industrial installations, the speed is controlled by a VFD, but the motor must still be compatible with the drive.
Can a VFD damage a standard motor?
Yes. Incorrect application can cause overheating, winding-insulation damage or bearing-current problems. Risk increases when the motor operates outside its permitted thermal or mechanical range or when the installation creates excessive electrical stress.
Can I run a motor below 50 Hz using a VFD?
Often, yes, if the motor and load are suitable. However, a shaft-fan-cooled motor may lose cooling capacity as speed decreases. The permissible load and minimum operating speed must be checked against the motor manufacturer’s specifications.
Does a VFD need to match the motor’s kilowatt rating exactly?
Not necessarily. The drive must meet the application’s continuous current, overload, voltage and control requirements. Motor power is an important selection parameter, but current and load duty can determine the final drive rating.
Is an inverter-duty motor always necessary?
No. Some standard motors are suitable for VFD operation under approved conditions. An inverter-duty motor is worth specifying when the operating range, electrical stresses, cooling requirements or reliability expectations exceed what the standard motor can support.
