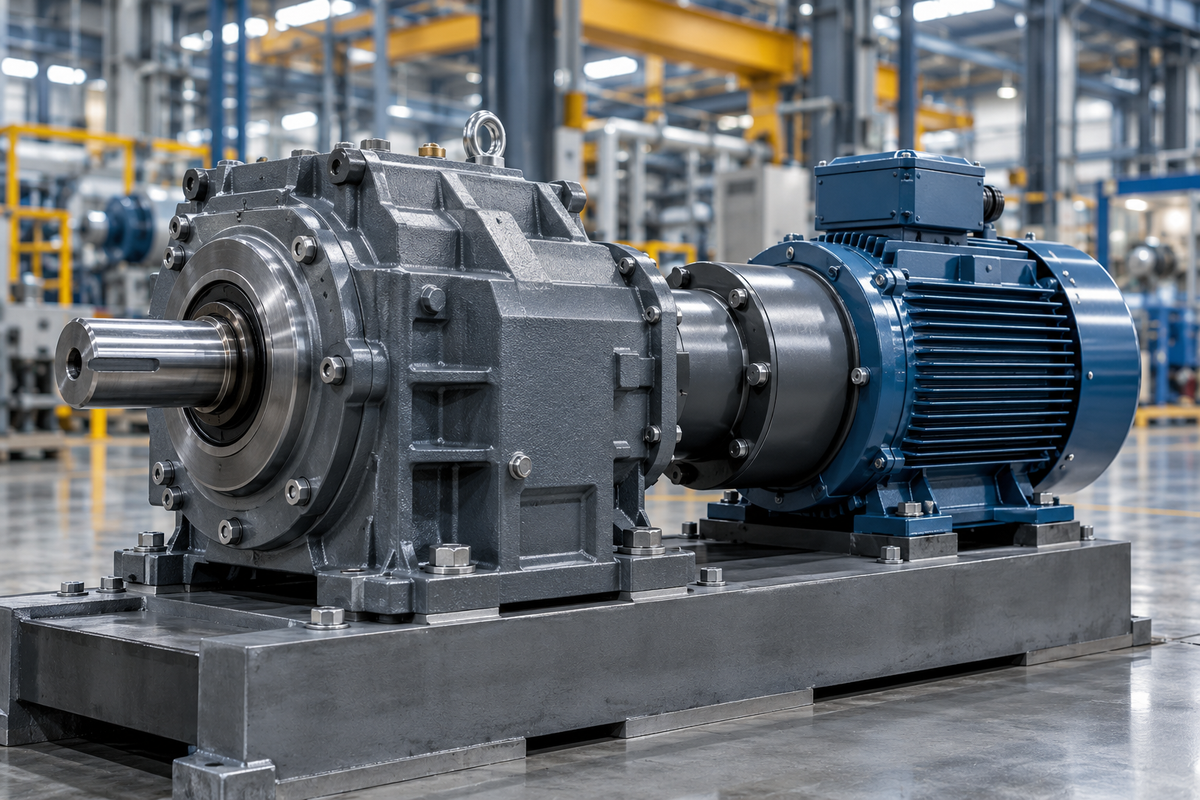

Selecting the correct gearbox for an electric motor needs more than matching shaft sizes or choosing a suitable reduction ratio. The gearbox must transmit the required torque, deliver the correct output speed, withstand the operating duty, and integrate mechanically and electrically with the motor and driven equipment. Incorrect selection can lead to excessive bearing loads, overheating, vibration, premature gear wear, and unnecessary energy consumption.
For engineers, maintenance teams, OEMs, and industrial purchasing managers, understanding the technical differences between gearbox configurations is essential to achieving reliable power transmission.
This guide explains how to evaluate industrial gearboxes by load characteristics, gear ratio, torque requirements, efficiency, mounting arrangements, and operating conditions, with practical considerations for sourcing compatible equipment from Industrial Motor Warehouse.
Why Gearbox Selection Matters in Electric Motor Applications
An electric motor typically operates most efficiently within a particular speed and load range, while the driven machine may need a substantially different speed or torque. A gearbox bridges this difference by converting the motor’s input speed and torque into the output characteristics required by the application.
For example, a motor driving a conveyor may need a low output speed and high starting torque, whereas a motor used in a packaging machine may need controlled motion, accurate positioning, and frequent acceleration and deceleration.
A correctly selected industrial gearbox helps engineers achieve:
- Appropriate output speed: Matches the driven machine’s required operating speed.
- Adequate output torque: Provides sufficient force to start, accelerate, and sustain the load.
- Reliable load transmission: Accommodates radial, axial, shock, and cyclic loading within rated limits.
- Efficient power transfer: Minimises losses associated with gear meshing, bearings, lubrication, and seals.
- Longer service life: Reduces excessive thermal stress, wear, and mechanical fatigue.
- Installation compatibility: Ensures the gearbox fits the motor, coupling, frame, and driven machinery.
Gearbox selection should therefore begin with the drive machine’s operating requirements rather than the motor’s rated power alone.
1. Calculate the Required Gear Ratio
The gear ratio determines how much the gearbox reduces or increases rotational speed. For a conventional reduction gearbox, the output shaft rotates more slowly than the input shaft, increasing available torque in proportion to the reduction ratio, with less mechanical loss.
The basic gear ratio is:
i = ninnout
Where:
- i = gearbox reduction ratio
- nin = gearbox input speed in rpm
- nout = gearbox output speed in rpm
Why Actual speed of the motor matters
The rated speed on a motor nameplate is not always the same as synchronous speed or actual operating speed. For an induction motor, slip causes the rotor speed to fall below synchronous speed under load. A variable-frequency drive(VFD) can also change the operating speed of the motor.
When selecting industrial gearboxes for variable-speed applications, calculate the required ratio using the intended motor operating speed and confirm that the gearbox’s permitted input-speed range covers the full operating envelope.
2. Evaluate the Required Output Torque
Torque is one of the most important gearbox selection parameters. A gearbox can provide the correct output speed and still be unsuitable if its rated torque is insufficient for the load.
For rotational systems, the relationship between mechanical power, torque, and angular speed is:
P = Tn/9550
Rearranging it gives:
T = 9550P/n
Where P = mechanical power in kW
T = torque in Nm
n = rotational speed in rpm
The equation assumes power and speed refer to the same shaft and operating point.
Account for the efficiency of the gearbox
For a reduction gearbox, output power is lower than input power because of mechanical losses. The approximate relationship is:
Pout = Pin η
Where η represents gearbox efficiency as a decimal.
If the efficiency of the gearbox is 90%, a 2 kW input delivers approximately 1.8 kW at the output under the assumed operating conditions.
For preliminary selection, engineers should calculate the required output torque and verify it against the manufacturer’s rated output torque. The gearbox should also fulfil the manufacturer’s thermal rating and permissible peak torque, not just its nominal mechanical rating.
3. Choose the Correct Gearbox Type
Different gearbox designs offer different combinations of efficiency, torque capacity, reduction ratio, shaft orientation, noise levels, and installation flexibility. However, the best choice depends on the machine’s mechanical requirements and operating environment.
Common industrial gearbox configurations
Helical Gearboxes: Helical gears transmit load through angled teeth, allowing progressive tooth engagement. This generally produces smoother operation and lower noise than comparable straight-tooth arrangements. Helical gearboxes are well suited to conveyors, mixers, material-handling equipment, and continuous-duty production lines.
Worm Gearboxes: Worm drives provide compact right-angle transmission and can obtain substantial reduction ratios in a single stage. Sliding contact between the worm and wheel typically generates more heat and lower efficiency than a comparable well-designed helical drive. Do not assume that a worm gearbox is self-locking; verify the manufacturer’s back-driving and holding characteristics for the specific model.
Bevel and bevel-helical gearboxes
Bevel gearing changes the direction of power transmission, typically through 90 degrees. Bevel-helical arrangements combine this geometry with helical stages to achieve higher reduction ratios and torque capacity. They are useful where the motor and driven shaft cannot share the same axis.
Planetary gearboxes
Planetary systems distribute torque through multiple planet gears around a central sun gear. Their coaxial layout provides high torque density in a compact housing. They are commonly considered for servo systems, automated machinery, indexing equipment, and applications with demanding space or dynamic-response requirements.
Industrial gearbox comparison
| Gearbox type | Main advantage | Important selection consideration |
|---|---|---|
| Helical | High efficiency and smooth operation | Axial thrust, shaft arrangement, and bearing capacity |
| Worm | Compact right-angle drive and high reduction per stage | Heat dissipation, efficiency, and back-driving |
| Bevel-helical | Efficient right-angle power transmission | Mounting geometry and load direction |
| Planetary | High torque density and compact dimensions | Backlash, torsional stiffness, and peak torque |
These are general design characteristics, not universal performance guarantees. Actual efficiency, maximum ratio, permissible torque, and service life depend on the manufacturer’s specific gearbox design.
What is a universal gearbox?
The term universal gearbox is used commercially for different products, including molecular reducers and gearboxes designed for multiple mounting or shaft configurations. It is not a single standardised gearbox type with one fixed set of performance characteristics.
When evaluating a universal gearbox, check whether the particular model supports the required mounting positions, input adapters, shaft arrangements, reduction ratios, and output torque. A flexible mounting arrangement does not automatically mean the unit is suitable for every industrial application.
For procurement, compare the manufacturer’s model-specific technical documentation rather than relying on the product description alone.
4. Apply the Correct Service Factor
The service factor accounts for operating conditions that impose additional mechanical demands beyond the nominal load. These include shock loading, frequent stopping, reversing, long operating hours, and variations in driven-machine resistance.
Tdesign = Trequired × SF
Where:
- Tdesign = preliminary design torque
- Trequired = calculated application torque
- SF = application service factor
How duty conditions affect selection
| Operating condition | Engineering implication |
|---|---|
| Uniform, steady load | Lower cyclic stress, subject to rated duty |
| Frequent starts and stops | Increased acceleration torque and thermal cycling |
| High-inertia load | Additional torque needed to accelerate rotating components |
| Shock loading | Higher transient tooth and shaft stresses |
| Frequent reversals | Repeated torque transients and backlash-related impacts |
| Continuous operation | Sustained thermal loading and lubrication demands |
For high-inertia systems, calculate acceleration torque from the load’s moment of inertia and the required angular acceleration. A service factor alone may not adequately verify the peak torque requirement.
5. Verify Thermal Capacity and Gearbox Efficiency
A gearbox may have sufficient mechanical torque capacity but still overheat during continuous operation. This happens when the heat generated by gear meshing, bearings, seals, and lubricant friction exceeds the heat the housing can dissipate.
Thermal rating is particularly important in compact enclosures, high-ratio worm drives, hot industrial environments, and applications running continuously at low speed.
Before selecting an industrial gearbox, check:
- Rated mechanical power and permissible thermal power.
- Ambient temperature and expected operating temperature.
- Lubricant viscosity and recommended operating temperature range.
- Cooling requirements, if any.
- Input speed and the effects of variable-speed operation.
- Whether the manufacturer specifies a thermal derating factor.
6. Check Shaft Loads, Mounting and Motor Compatibility
Mechanical compatibility is a frequent source of installation problems. Even when the gearbox ratio and torque ratings are correct, an incompatible mounting arrangement or excessive shaft load can shorten component life.
Shaft configuration
Confirm whether the application needs inline, parallel-shaft, right-angle, solid-shaft, hollow-shaft, or flange-mounted output arrangements.
For direct motor mounting, verify the motor frame size, flange dimensions, shaft diameter, shaft extension, and coupling or adapter requirements. An IEC motor interface should be confirmed against the specific gearbox adapter rather than assumed from nominal power alone.
Radial and axial loads
Loads from belt drives, chain drives, gears, and other external components can impose radial forces on the gearbox output shaft. Helical gearing and some other gear arrangements also generate axial forces internally.
Check the manufacturer’s permissible radial and axial load ratings at the actual output speed, load position, and shaft management. A gearbox’s maximum torque rating does not establish its allowable overhung load.
Mounting position and lubrication
Gearboxes are designed for specified mounting orientations. Changing the orientation may alter oil distribution, bearing lubrication, breather position, and the required oil quantity.
Before installation, verify the approved mounting position, lubricant specification, fill level, and any model-specific requirements for alternative orientations. Incorrect lubrication can cause overheating, accelerated wear, and premature bearing failure.
7. Consider Variable-Frequency Drives and Operating Speed
Where an electric motor is controlled by a variable-frequency drive, the gearbox must be suitable for the complete operating range rather than just the motor’s nominal speed.
Three issues deserve particular attention.
Low-speed orientation: Motor-mounted cooling fans may provide less airflow at low speed. Although this is primarily a motor concern, the complete drive system must still meet its thermal requirements.
High-speed orientation: Operating above the motor’s base frequency may increase gearbox input speed, bearing losses, vibration, and lubrication demands. Confirm the gearbox’s maximum permissible input speed.
Dynamic loading: Rapid acceleration, deceleration, and reversal can generate torque peaks that exceed steady-state values. Check the motor’s available torque, VFD current, and torque limits, load inertia, and gearbox peak torque rating together.
For servo-driven equipment, also consider backlash, torsional stiffness, reflected inertia, and positioning accuracy. A gearbox suitable for a constant-speed conveyor may not deliver the dynamic performance needed for a precision indexing system.
8. Match the Gearbox to the Industrial Application
The driven machine determines which design characteristics matter most. The following examples provide a starting point for comparing requirements.
| Application | Key selection priorities |
|---|---|
| Belt conveyors | Output torque, starting load, external shaft loads, and duty cycle |
| Mixers and agitators | Variable resistance, continuous duty, sealing, and corrosion exposure |
| Packaging machinery | Backlash, speed control, compact dimensions, and repeatability |
| Pumps | Required speed, load characteristics, alignment, and thermal performance |
| Crushers and heavy material handling | Shock loading, peak torque, shaft loads, and robust mounting |
| Automated positioning systems | Backlash, torsional stiffness, dynamic torque, and inertia matching |
These are application considerations rather than fixed gearbox prescriptions. A conveyor, for example, may need a different solution depending on belt length, incline, loading profile, starting frequency, and whether it operates continuously or intermittently.
9. Common Gearbox Selection Mistakes to Avoid
Before placing an order, review the following common specification errors.
- Selecting by motor kW alone: Power does not establish the gearbox’s required output torque or shaft-load capacity.
- Ignoring starting torque: Breakaway friction and acceleration can demand substantially more torque than steady operation.
- Using an arbitrary service factor: The factor must reflect the application and the manufacturer’s rating methodology.
- Overlooking thermal limits: A mechanically adequate gearbox may still be unsuitable for continuous duty.
- Assuming mounting positions are interchangeable: Lubrication and bearing arrangements may differ between orientations.
- Ignoring efficiency: Small efficiency differences can accumulate into significant operating costs over long service periods.
- Replacing a gearbox based only on dimensions: A physically compatible replacement may have different ratios, torque ratings, shaft loads, or lubrication requirements.
Choosing and Sourcing Industrial Gearbox from Industrial Motor Warehouse
Once the engineering requirements are established, the next step is to identify a gearbox that matches the application and can be integrated with the existing or planned motor assembly.
Industrial Motor Warehouse provides an industrial motor and drive equipment sourcing point for engineers, maintenance professionals, and buyers. When reviewing available products, use the technical specifications, not simply the product category or advertised power rating, to establish suitability.
Before requesting a quotation, prepare the following information:
- Motor power, rated speed, supply frequency, and motor type.
- Required gearbox output speed and reduction ratio.
- Required continuous output torque and estimated peak torque.
- Load type, duty cycle, starts per hour, and reversing frequency.
- Required shaft arrangement, mounting position, and motor interface.
- Ambient temperature, contamination, moisture, and other environmental conditions.
- Any dimensional restrictions or existing gearbox identification details.
Request confirmation of the gearbox’s related torque, mechanical, and thermal capacity, efficiency, permissible shaft loads, lubrication requirements, and compatibility with the motor. Where operating conditions are complex, provide the load profile and relevant mechanical drawings for a more complete application assessment.
The appropriate model should be selected only after these parameters have been checked against the manufacturer’s technical data.
Conclusion
Selecting the correct industrial gearbox needs a structured engineering assessment of speed, torque, ratio, service factor, efficiency, thermal capacity, shaft loads, and installation constraints. The correct selection must satisfy both steady-state operating requirements and the transient conditions faced during starting, stopping, reversing, and changing loads.
For engineers and purchasing teams sourcing equipment through Industrial Motor Warehouse, the most reliable approach is to define the application first, calculate the required operating parameters, and verify the shortlisted gearbox against its manufacturer’s technical documentation. This process supports more reliable power transmission, controlled operating costs, and longer service life across industrial motor applications.
