Lenze i550 Cabinet vs. Motec vs. Protec: Which Version Fits Your Application?
Choosing a variable frequency drive is not simply a matter of matching motor power to inverter output. Installation location, enclosure protection, wiring architecture, communication requirements, service access, and machine layout can all affect which drive configuration is appropriate.
The Lenze i550 family is designed around this principle. Rather than using one physical format for every application, Lenze offers the i550 as cabinet, motec, and protec variants. All three are designed for variable-speed control, but their mechanical design and installation concepts are significantly different.
For engineers specifying a Lenze inverter, understanding these differences can help prevent unnecessary cabinet space, additional wiring, unsuitable environmental protection, or difficult commissioning.
Quick Answer: Which Lenze i550 Version Should You Consider?
| Version | Mounting concept | Typical protection | Main application concept |
|---|---|---|---|
| i550 cabinet | Control cabinet | IP20 | Centralised machine control panels |
| i550 motec | Wall or motor mounted | IP66 / NEMA 4X | Decentralised drive architecture |
| i550 protec | Wall mounted | IP31/IP55/IP66 depending on configuration | Decentralised installation where protected enclosure design is required |
The i550 cabinet is intended for conventional control-panel installation, while motec and protec move the Lenze VFD closer to the machine. Lenze documentation identifies the i550 cabinet at up to 132 kW, i550 motec up to 45 kW, and i550 protec up to 75 kW, depending on supply configuration.
What Is the Lenze i550?
The Lenze i550 is a frequency inverter platform for controlling motor speed and torque in applications including conveyors, pumps, fans, packaging machinery, extruders, winding systems, travelling drives, and hoisting applications.
The platform supports various communication technologies, including EtherCAT, EtherNet/IP, Modbus TCP, PROFINET, and other fieldbus options depending on the specific variant and configuration. The i550 cabinet also provides five digital inputs, one digital output, two analogue inputs, one analogue output, and a relay interface.
This makes the i550 more than a basic speed controller. It can form part of a broader machine-control architecture where drive diagnostics, PLX communication, motor monitoring and functional safety need to work together.
The key point is that Lenze i550 inverter variants share much of the same drive technology while addressing different physical installation requirements.

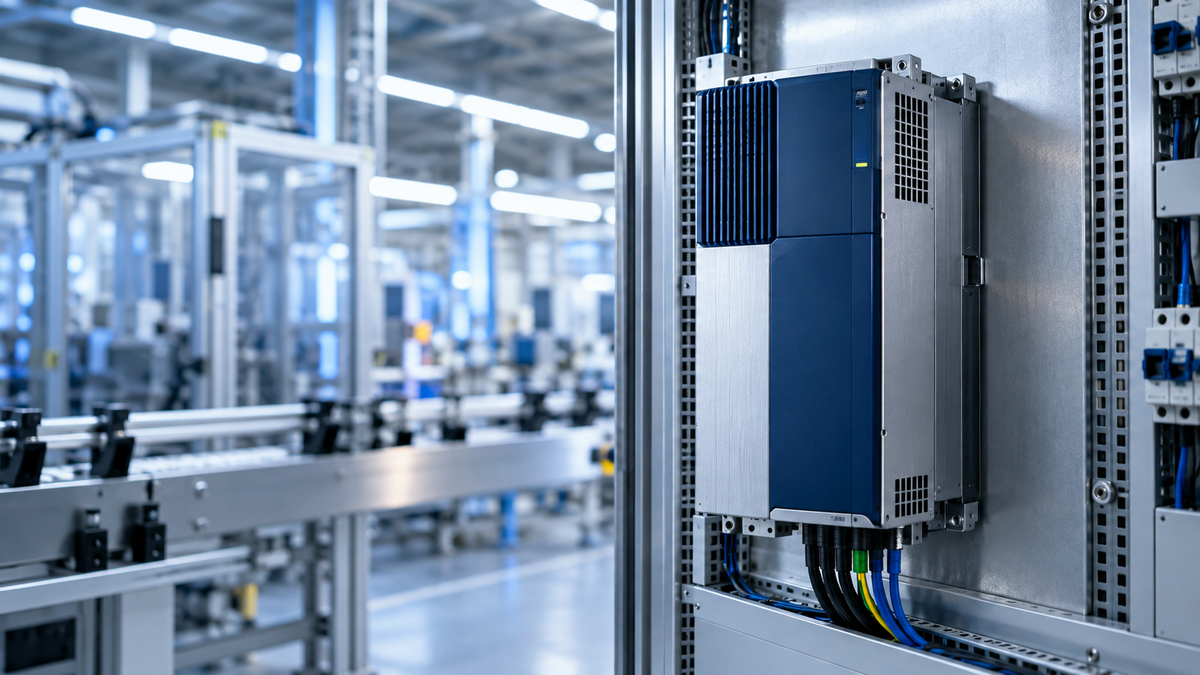

Lenze i550 Cabinet: Centralised Control Panel Installation
The i550 cabinet is the conventional control-cabinet version of the platform.
It uses an IP20 enclosure concept, making it appropriate for installation inside a suitable electrical cabinet rather than direct exposure to the machine environment.
Where does this fit?
This configuration is suitable when:
- Multiple drives are installed in a central MCC or control cabinet
- The machine already has a dedicated electrical enclosure
- Environmental protection is provided by the cabinet
- Drive wiring is routed back to a central control point
- Engineers want a familiar and more suitable DIN-rail/panel-based drive architecture
- Higher motor ratings need the cabinet range
- The control system uses centralised PLC and fieldbus infrastructure
Cabinet Installation and serviceability
A major engineering advantage of the cabinet architecture is that the drive, PLC, circuit protection, contractors, terminals, and other automation equipment can be arranged within a controlled electrical environment.
For a machine builder that produces a panel with multiple VFDs, this can simplify overall system organisation.
The i550 cabinet also supports optional Safe Torque Off functionality, with Lenze specifying SIL 3 according to EN IEC 61508 and performance level according to EN ISO 13849-1 for the relevant configuration.
Lenze i550 Motec: Decentralised Drive Architecture
The i550 motec takes a different approach.
Instead of locating the inverter inside a central control cabinet, the motec is designed for wall or motor mounting. Lenze specifies an IP66 enclosure and describes the product as a decentralised VFD intended for demanding automation environments.
This can substantially change the machine’s electrical architecture.
Rather than routing every motor cable from the machine back to a central cabinet, the drive can be positioned close to the motor or machine module.
Typical applications of Lenze i550 Motec
The i550 motec can be particularly relevant to:
- Conveyor systems
- Distributed machine modules
- Packaging machinery
- Material-handling equipment
- Machines with limited cabinet space
- Applications that need motor-level installation
- Equipment where decentralised I/O is beneficial
Lenze i550: Decentralised Wall Mounted Protection
The i550 protec sits between the centralised cabinet approach and the motor-mounted concept.
It is a decentralised Lenze frequency inverter that is designed for wall mounting and uses a high-protection housing compared with the IP20 cabinet model. Lenze describes the protec as using the same established technology as its cabinet inverters while adapting the housing for decentralised installation.
Features relevant to machine builders
The i550 protec can be configured with features such as:
- Repair/disconnect switch options
- Keypad options
- WLAN module options
- Integrated micro-USB diagnostic interface
- IO-Link
- Multiple industrial Ethernet protocols
- Optional STO
In Comparison: Technicalities of I550 Cabinet vs. Motec vs. Protec
| Specification | i550 Cabinet | i550 Motec | i550 Protec |
|---|---|---|---|
| Installation | Control cabinet | Wall or motor | Wall |
| Enclosure type | IP20 | IP66 | IP31/IP55/IP66 configurations |
| Decentralised installation | No | Yes | Yes |
| Motor mounting | No | Yes | No |
| Maximum listed power range | Up to 132 kW | Up to 45 kW | Up to 75 kW |
| Digital I/O | 5 DI/ 1 DO | Configurable | 5 DI/ 1 DO |
| Analogue I/O | 2 AI/ 1AO | Configuration dependent | 2 AI/ 1 AO |
| IO-Link | Available depending on configuration | Integrated | Available depending on configuration |
| STO | Available | Available | Available depending on configuration |
| Diagnostic interface | USB module option | USB-C | Micro-USB |
| Typical architecture | Centralised | Decentralised | Decentralised |
How to Select the Correct Lenze Drive for Your Application
The correct Lenze drive should be selected from the complete machine specification rather than motor kW alone.
1. Check the electrical supply
Check:
- Single-or three-phase supply
- Nominal voltage
- Motor rated voltage
- Motor rated current
- Frequency
- Available short-circuit current
- Required overload capacity
2. Determine the installation environment
This is one of the clearest differences between the three versions. If the inverter will be protected inside an electrical circuit, the i550 cabinet may be the logical architecture.
If the drive needs to operate outside the cabinet, consider protec or motec, depending on whether wall or motor mounting is required and what enclosure protection the application demands.
3. Consider wiring architecture
A centralised machine can make the cabinet model straightforward. A large machine with multiple distributed motor modules may benefit from decentralised drives. The i550 motec, in particular, is designed around reducing wiring and installation complexity through motor-or wall-mounted deployment and connectorised connections.
4. Match the communication network
Communication requirements should be defined before ordering the drive.
Depending on model and configuration, the i550 family supports industrial networks including:
- EtherCAT
- EtherNet/IP
- PROFINET
- Modbus TCP
- Modbus RTU
- CANopen
- IO-Link
5. Check safety requirements
Where the machine safety architecture needs controlled torque removal, STO availability can be an important selection criterion.
Where to Source a Lenze i550 Inverter
For machine builders, OEMs, maintenance teams, and individual users, selecting the exact part number is as important as choosing the i550 family.
Motor voltage, rated current, control-unit configuration, communications, enclosure type, and required options should all be confirmed before purchase.
Industrial Motor Warehouse supplies industrial drive and motor solutions for applications where correct specification matters. Its range provides an option for engineers looking for Lenze inverter, motor-control, and industrial automation equipment rather than treating a VFD as a generic replacement arrangement.
Conclusion
The Lenze i550 cabinet, motec and protec are not simply three versions with different housings. They represent different approaches to machine electrical design.
The i550 cabinet is designed around centralised control-panel installation and offers the broadest power range of the three. The i550 motec is focused on decentralised wall or motor mounting, with IP66 protection, connectorised installation and integrated decentralised functionality. The i550 protec provides a wall-mounted decentralised alternative with higher enclosure protection than the cabinet version.
For a final selection, engineers should verify the motor’s rated current, supply voltage, overload requirement, mounting environment, enclosure rating, communication protocol, safety functions, and available options against the current Lenze technical documentation.
That approach helps ensure the selected Lenze i550 is not only electrically compatible with the motor but also correctly matched to the machine’s complete control and installation architecture.
