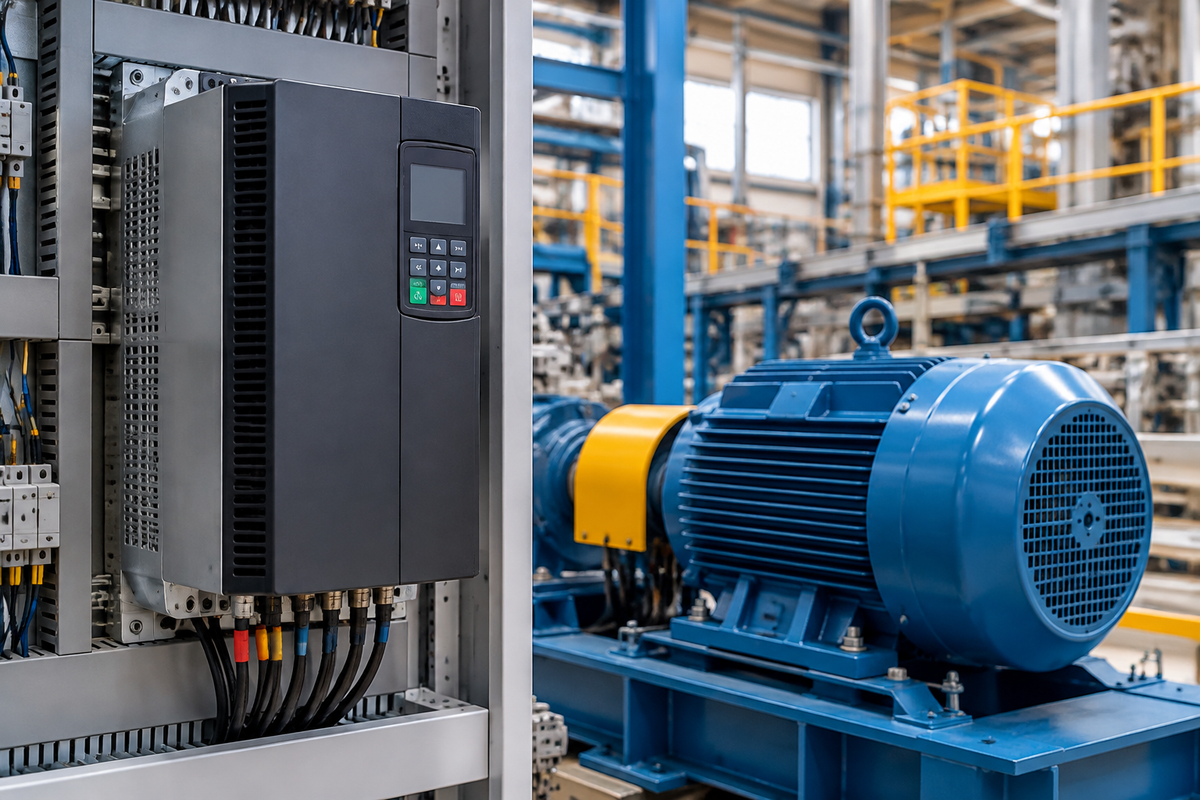

Three-Phase DC Drives Explained: Operation, Applications and Selection
A three-phase DC drive converts three-phase AC electrical power into controlled DC power for regulating the speed, torque, and acceleration of a DC motor. These drives remain important in industrial applications where existing DC motors provide reliable performance, high starting torque, and precise speed control.
Although many modern systems use AC variable speed drives, three-phase DC drives continue to be used in applications where replacing the complete motor and control system is unnecessary or where the characteristics of a DC motor provide operational advantages.
Industrial Motor Warehouse supplies a range of industrial motor control solutions including DC motor drives for UK industrial applications, maintenance requirements, and OEM projects.
Quick Answer: What Is a Three-Phase DC Drive?
A three-phase DC drive is an electronic controller that converts three-phase AC input power into a controlled DC output for operating a DC motor.
The drive regulates the motor’s armature voltage and current to control:
- Motor speed
- Torque output
- Acceleration
- Deceleration
- Braking performance
- Operating stability
A correct DC drive selection depends on more than motor power. Engineers need to consider:
- Motor armature voltage
- Armature current rating
- Field voltage and current
- Supply voltage
- Feedback requirements
- Quadrant operation
- Load characteristics
- Braking requirements
- Environmental conditions
How Does a Three-Phase DC Drive Work?
A three-phase DC drive uses controlled semiconductor devices to regulate the conversion of AC power into DC power supplied to the motor.
In traditional thyristor-based systems, the firing angle of the power devices controls the average DC output voltage. By adjusting this voltage, the drive controls the speed of the DC motor.
The relationship between torque and current is:
T ∝ Ia
Where:
- T = Motor torque
- Ia = Armature current
The motor speed relationship is:
N ∝ (Va − IaRa) / Φ
Where:
- N = Motor speed
- Va = Armature voltage
- Ia = Armature current
- Ra = Armature resistance
- Φ = Motor field flux
This allows the drive to provide controlled motor operation by adjusting the electrical power supplied to the motor rather than simply switching the motor supply on or off.
Armature Control
The armature circuit supplies the main motor power and has a direct effect on motor speed and torque performance.
By controlling armature voltage, the drive can regulate motor speed. By controlling armature current, the drive can manage torque output and protect the motor from excessive current conditions.
This makes DC drives suitable for applications where accurate speed regulation and controlled torque response are required.
Field Control in DC Motors
Separately excited DC motors use a dedicated field circuit to create the magnetic flux required for operation.
Field control can be used for applications requiring operation above base speed. Reducing field flux can increase motor speed, although this must be managed carefully because excessive field weakening can reduce available torque.
When selecting a three-phase DC drive, engineers need to confirm that the controller supports the required field voltage and current ratings.
Non-Regenerative vs Regenerative DC Drives
One of the most important decisions when selecting a DC drive is whether the application requires non-regenerative or regenerative operation.
Non-Regenerative DC Drives
A non-regenerative DC drive provides power from the electrical supply to the motor but does not return braking energy back to the supply.
These drives are suitable for applications where:
- The motor operates mainly in one direction
- Controlled stopping is sufficient
- The load does not drive the motor
- Frequent regenerative braking is not required
Regenerative DC Drives
A regenerative DC drive can return energy generated during braking back through the drive system.
These drives are useful for applications involving:
- Frequent acceleration and deceleration
- High-inertia loads
- Overhauling loads
- Forward and reverse operation
- Controlled braking requirements
The correct choice depends on the machine operating cycle and mechanical requirements.
| Feature | Analogue DC Drive | Digital DC Drive |
|---|---|---|
| Control method | Analogue electronics | Microprocessor-based control |
| Commissioning | Straightforward adjustment | Parameter configuration |
| Diagnostics | Basic fault indication | Advanced monitoring |
| Communication | Limited options | Multiple communication options |
| Typical use | Replacement and simple applications | Complex industrial systems |
Applications of Three-Phase DC Drives
4. Select Quadrant Operation
The required operating quadrant depends on how the motor and load behave.
| Quadrant | Operation | Typical Applications |
|---|---|---|
| 1 Quadrant | Forward motoring only | Simple speed-control applications |
| 2 Quadrant | Motoring and braking in one direction | Controlled stopping applications |
| 4 Quadrant | Forward/reverse motoring and braking | Reversing and regenerative applications |
5. Check Feedback Requirements
The feedback method influences the accuracy and performance of the motor control system.
Common feedback options include:
- Armature voltage feedback
- Tachogenerator feedback
- Encoder feedback
Applications requiring high speed accuracy or improved regulation under changing loads may benefit from closed-loop feedback.
6. Consider Environmental Conditions
The installation environment can affect drive performance and service life.
Engineers should consider:
- Control cabinet temperature
- Ventilation requirements
- Dust and contamination levels
- Humidity
- Altitude
- Panel protection rating
- Cable installation requirements
Maintenance Considerations for Three-Phase DC Drives
Regular maintenance helps maintain reliable operation and reduces unexpected downtime.
Important maintenance activities include:
- Checking electrical connections
- Inspecting cooling systems
- Monitoring unusual operating temperatures
- Checking motor brushes and commutators
- Reviewing fault history
- Testing feedback devices
- Inspecting control wiring
- Cleaning accumulated dust from equipment
Although modern DC drives are designed for industrial reliability, the complete motor-drive system requires appropriate inspection and maintenance procedures.
Common Three-Phase DC Drive Selection Mistakes
Selecting Only by Motor Power
Choosing a drive only based on the motor kW rating can result in incorrect sizing. The armature current, voltage, and application duty are equally important.
Ignoring Braking Requirements
Applications with high inertia or frequent stopping cycles may require regenerative capability or additional braking arrangements.
Using Incorrect Feedback
The wrong feedback method can reduce speed regulation performance and affect machine operation.
Ignoring Environmental Conditions
Temperature, dust, ventilation, and enclosure conditions can affect the usable capacity and reliability of the drive.
Three-Phase DC Drives from Industrial Motor Warehouse
Industrial Motor Warehouse supplies a range of industrial DC drives and motor-control equipment for UK applications.
The available range includes Sprint Electric solutions designed for different motor-control requirements, including analogue and digital DC drives, single-phase and three-phase systems, and regenerative drive options.
For engineers replacing existing equipment or specifying a new control system, selecting the correct DC drive requires matching the controller with the motor specification and the actual machine requirements.
Three-Phase DC Drive Selection Checklist
| Check | Requirement |
|---|---|
| Motor voltage | Confirm armature and field voltage compatibility |
| Motor current | Match continuous and peak current requirements |
| Supply | Confirm three-phase AC input requirements |
| Feedback | Select suitable speed feedback method |
| Quadrant operation | Match application braking and reversing requirements |
| Environment | Check temperature, enclosure, and installation conditions |
Conclusion
Three-phase DC drives continue to provide reliable speed and torque control for industrial applications where DC motors remain the preferred solution.
The correct drive selection requires consideration of motor voltage, current, feedback, quadrant operation, braking requirements, and environmental conditions. Selecting a drive based only on motor power can lead to incorrect operation and reduced system performance.
For UK industrial users, maintenance teams, and OEMs, a correctly specified three-phase DC drive can extend equipment life, improve motor control, and provide a practical solution for existing and new machine applications.
Before selecting a replacement or new DC drive, always review the motor nameplate information and application requirements to ensure compatibility.
Frequently Asked Questions
What is a three-phase DC drive?
A three-phase DC drive is an electronic controller that converts three-phase AC power into controlled DC power for operating a DC motor. It regulates motor speed, torque, acceleration, and braking by controlling the voltage and current supplied to the motor.
Why are three-phase DC drives still used in industrial applications?
Three-phase DC drives remain useful because DC motors can provide high starting torque, accurate speed control, and reliable performance in demanding applications. They are also commonly used for upgrading or maintaining existing machinery where replacing the complete motor system is unnecessary.
What information is required when selecting a three-phase DC drive?
When selecting a three-phase DC drive, engineers need to check the motor armature voltage, armature current, field voltage and current, AC supply voltage, feedback requirements, quadrant operation, braking requirements, and application duty cycle.
What is the difference between regenerative and non-regenerative DC drives?
A non-regenerative DC drive supplies power to the motor but does not return braking energy to the electrical supply. A regenerative DC drive can return energy generated during braking and is suitable for applications requiring frequent stopping, reversing, or high-inertia load control.
What are the main applications of three-phase DC drives?
Three-phase DC drives are commonly used in steel processing, metalworking equipment, printing machinery, paper processing systems, conveyors, material handling equipment, test systems, and existing industrial machines requiring accurate speed and torque control.
Are analogue or digital DC drives better for industrial applications?
The choice depends on the application requirements. Analogue DC drives are often suitable for straightforward speed-control applications and replacement projects. Digital DC drives provide advanced configuration, diagnostics, communication options, and improved monitoring capabilities for more complex systems.
How does feedback improve DC motor control?
Feedback allows the drive to compare the commanded motor speed with the actual motor speed. This helps maintain accurate speed regulation when the load changes. Common feedback options include armature voltage feedback, tachogenerator feedback, and encoder feedback.
Can a three-phase DC drive replace an existing DC drive?
A replacement DC drive can often be used where an existing system requires upgrading. However, the replacement must be matched with the motor voltage, current rating, feedback method, control signals, braking requirements, and application conditions.
How do you maintain a three-phase DC drive system?
Maintenance includes checking electrical connections, inspecting cooling arrangements, monitoring operating temperatures, reviewing fault history, testing feedback devices, inspecting motor brushes and commutators, and keeping equipment clean from dust and contamination.
Where can I buy three-phase DC drives in the UK?
Industrial Motor Warehouse supplies industrial DC drives, including Sprint Electric solutions, for UK maintenance teams, OEMs, and engineering applications. The correct drive should always be selected according to the motor specification and machine requirements.
