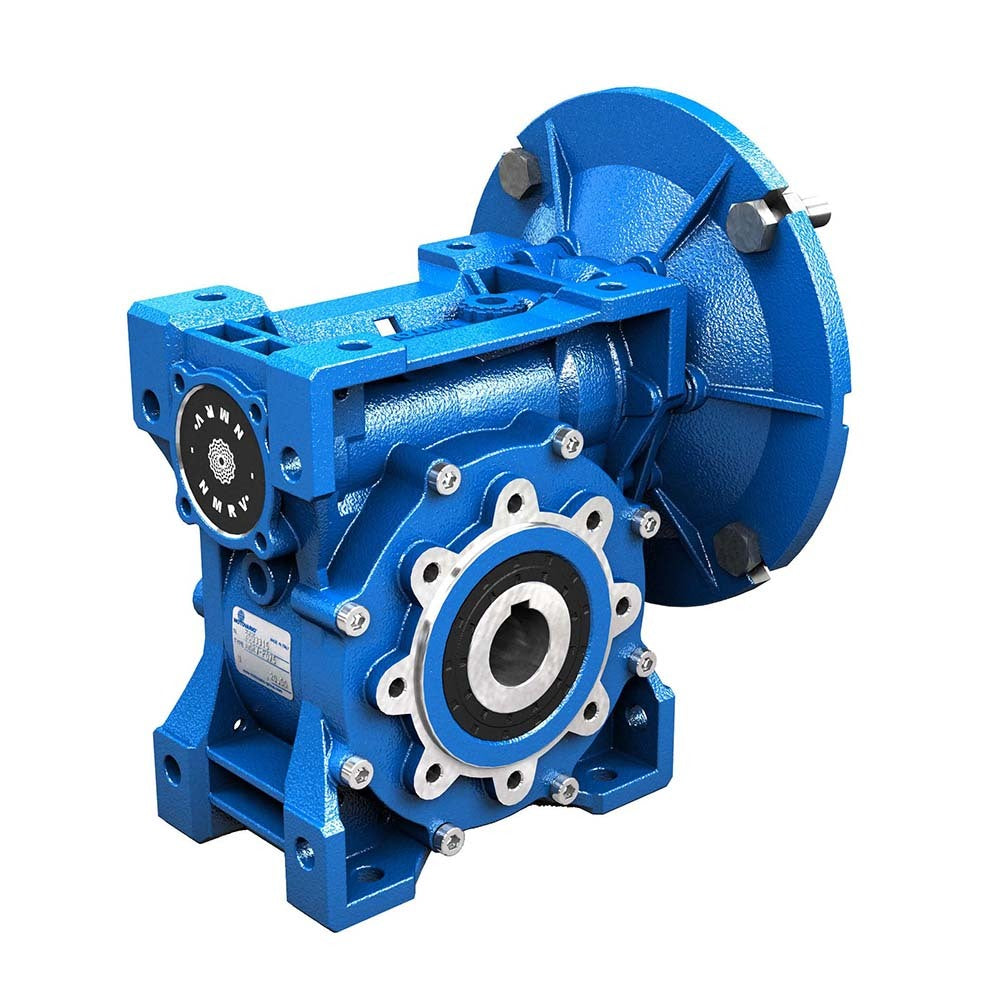

NMRV050 20:1 Worm Gearbox - 25mm Hollow Output Bore, IEC 71/80 Input, Aluminium
Drop-in replacement - standard IEC input flange and output shaft.
SKU: NMRV050-020-D71C
£220.68
ex VAT
£264.82 inc. VAT
Motor Input
Order in -
→ despatched today, arrives tomorrow before 5pm
★ 2pm Promise: place your order before 2pm and it is despatched the same working day. Guaranteed, not just aimed for.
Not sure this is the right gearbox?
Talk to a UK engineer. Average response < 5 min. 100% no-obligation
Larger quantities?
Get in touch for a custom quote.
The Motovario NMRV050 20:1 worm gearbox is a single-reduction, aluminium-housed 50mm centre-distance worm/wheel reducer with a 25mm hollow output bore. Available with IEC 71/80 B14 motor input - select your motor frame from the dropdown. Supplied bare (no motor) with synthetic long-life lubrication.
Technical specification
- Frame: NMRV050 (centre distance 50mm)
- Reduction ratio: 20:1
- Output bore: 25mm hollow (reducing bushes available)
- Input mounting: IEC 71/80 B14 face flange
- Housing: aluminium, B3 foot-mounted
- Worm: hardened & ground steel; wheel: centrifugally cast bronze
- Lubrication: synthetic long-life, factory filled
- Approx. gearbox weight: 5.5kg
- Duty: S1 continuous
- Motovario part numbers: NMRV050-020-D71C, NMRV050-020-D80C
Applications
Conveyors, dosing pumps, mixers, label applicators, rotary tables, packaging machinery, light material handling.
Warranty and delivery
24-month Motovario manufacturer warranty. UK stock with next-day delivery.
| Input flange | B14 |
|---|---|
| IEC frame | 71 |
| Ratio | 20:1 |
| Centre distance | 50 mm |
| Output bore | 25 mm |
| Type | Worm Gearbox |
| Housing material | Aluminium |
| Series | NMRV050 |
| Brand | Motovario |
| Warranty | 12 months manufacturer |
| SKU | NMRV050-020-D71C |
| Input flange | B14 |
|---|---|
| IEC frame | 80 |
| Ratio | 20:1 |
| Centre distance | 50 mm |
| Output bore | 25 mm |
| Type | Worm Gearbox |
| Housing material | Aluminium |
| Series | NMRV050 |
| Brand | Motovario |
| Warranty | 12 months manufacturer |
| SKU | NMRV050-020-D80C |
UK delivery
Next working day to most of the UK, on a fully tracked courier - you'll have the tracking link the moment it leaves our racking.
★ 2pm Promise: place your order before 2pm and it is despatched the same working day. Guaranteed, not just aimed for.
Shipping worldwide
We ship to 70+ countries with rates calculated live at checkout, so the price you see is the price you pay - no surprise invoice a week later. Moving several units, or need pallet freight? Get a freight quote on WhatsApp.
Returns
Specified the wrong one? Send it back within 14 days, unused and in its original packaging, and we'll refund it. Built-to-order and modified items are the one exception. Read the full returns policy →
Availability
6 × 71 B14 on the shelf in our UK warehouse, boxed and ready to go out today.
8 × 80 B14 on the shelf in our UK warehouse, boxed and ready to go out today.
Which mounting do I need?
The mounting type describes how the motor is fixed in place and how the shaft connects to your equipment. Choosing the right one ensures a direct, drop-in fit.
- B3 (Foot) - bolts down through feet on the base. The most common general-purpose mounting.
- B5 (Flange) - a large machined flange with clearance holes bolts directly to your gearbox or machine face.
- B14 (Face) - a smaller spigot/face flange with tapped holes, for lighter direct-coupled loads.
- B35 / B34 - combination mountings that provide both feet and a flange for extra support.
Still not sure? Message an engineer with your machine or existing motor's frame and we'll confirm the exact mounting for you.
