Motovario TH80A6 0.37 kW 6-Pole 80 Frame Three-Phase Motor (IE2)

Drop-in replacement - IEC frame dimensions.
SKU: AH63-00037-D80B14

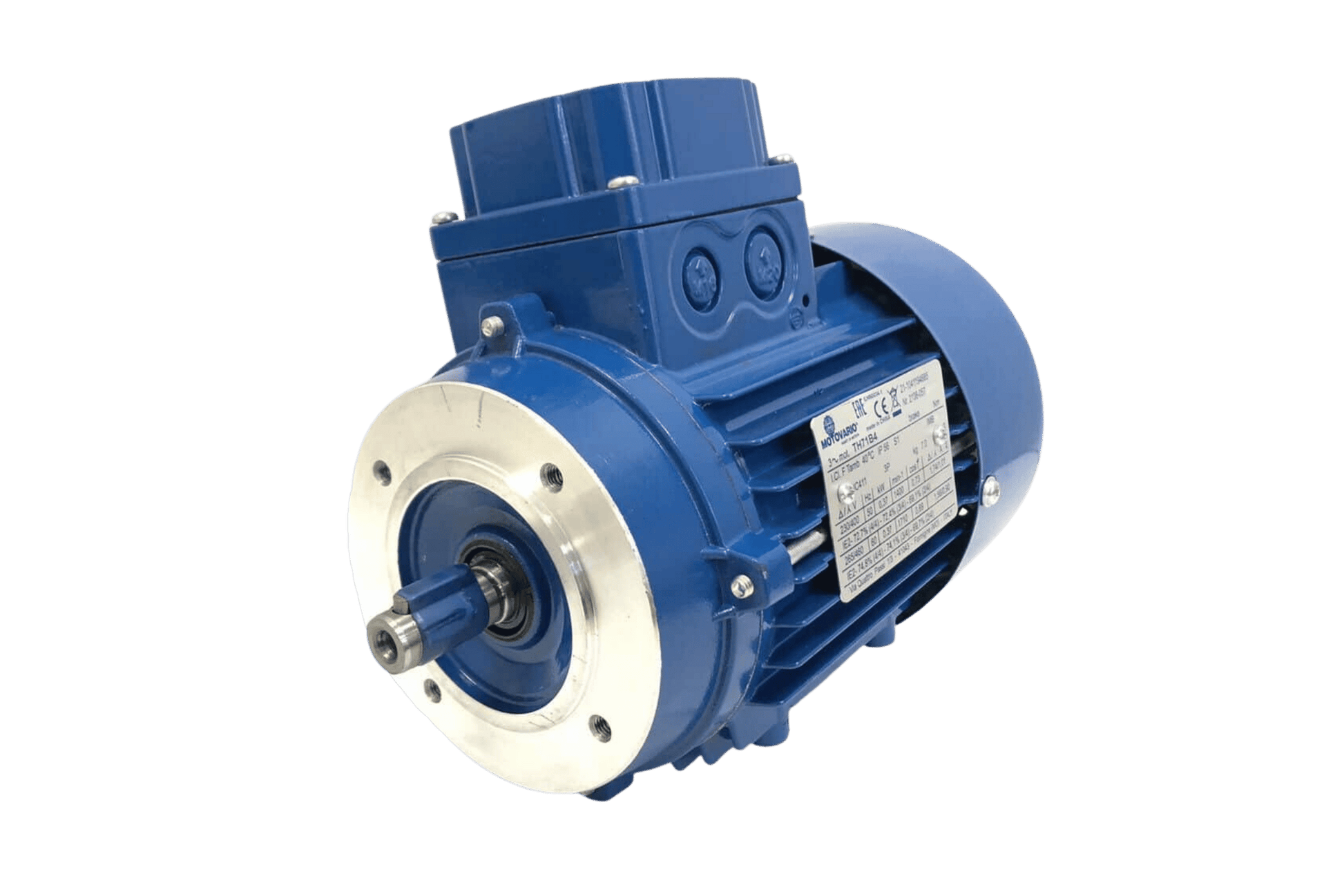

B14 Face

Datasheet

★ Free · Per-variant
CEUKCAIE2RoHSIEC 60034-30-1
£234.12 ex VAT
£280.94 inc. VAT
Mounting
Order in - → despatched today, arrives tomorrow before 5pm
★ 2pm Promise: place your order before 2pm and it is despatched the same working day. Guaranteed, not just aimed for.
Not sure this is the right motor? Talk to a UK engineer. Average response < 5 min. 100% no-obligation
WhatsApp an engineer Call 0116 403 0175
Larger quantities? Get in touch for a custom quote.
Request a quote

The Motovario TH80A6 is a 0.37 kW 6-pole three-phase asynchronous motor in IEC 80 aluminium frame, available with B5 flange or B14 face mount. Supplied direct from Industrial Motor Warehouse with rapid UK and worldwide despatch.

Specification

Brand Motovario
Series M Series (TH-TBH)
Motor Type Code TH80A6
Rated Power 0.37 kW
Poles 6-Pole (940 rpm @ 50 Hz)
Frame Size IEC 80

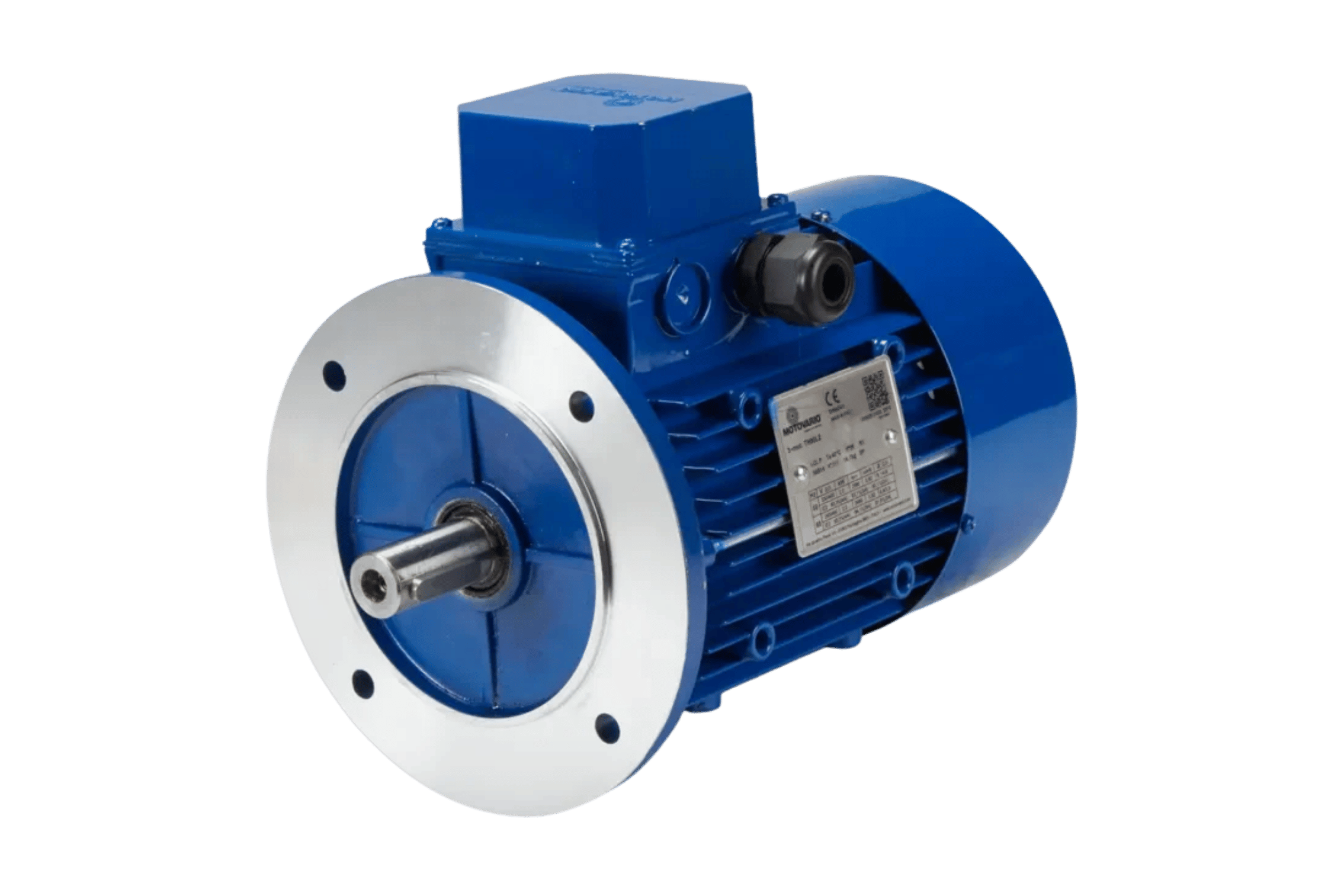

Mounting Options B5 (Flange) and B14 (Face) – select on variant picker
Voltage 230/400-265/460 V
Phase / Frequency 3-Phase / 50–60 Hz
Efficiency Class IE2
Rated Efficiency (4/4 load) 67.6%
Power Factor (cosφ) 0.67
Rated Current (400V) 1.18 A
Rated Torque 3.80 Nm
Insulation Class Class F
Protection IP55
Cooling IC411 (TEFC, self-ventilated)
Frame Material Aluminium
Flange Diameter Ø120
Shaft (DE) Ø19x40
Net Weight 9.6 kg
Country of Origin Italy

Features

  • IE2 efficiency class – meets EU minimum efficiency regulations (MEPS)
  • Aluminium frame – lightweight, corrosion-resistant, easy to handle and install
  • Suitable for variable-frequency drive (VFD) operation
  • Class F insulation – long winding and bearing life
  • IP55 protection – dust- and water-jet protected for harsh industrial environments
  • Dual-voltage (star/delta) connection, 50/60 Hz operation
  • Choice of B5 flange or B14 face mount on a single SKU page

Typical Applications

  • Pumps, fans and blowers
  • Conveyors and material-handling equipment
  • Compressors and packaging machinery
  • Machine tools and general-purpose industrial drives
  • Drop-in pairing with Motovario NMRV, NMRV-P and HW worm gearboxes

Datasheet & Drawings

Per-variant Motovario datasheet (full electrical, mechanical and dimensional drawings) available on the variant picker above. For technical assistance contact Industrial Motor Warehouse on +44 116 403 0175 or info@industrialmotorwarehouse.com.
