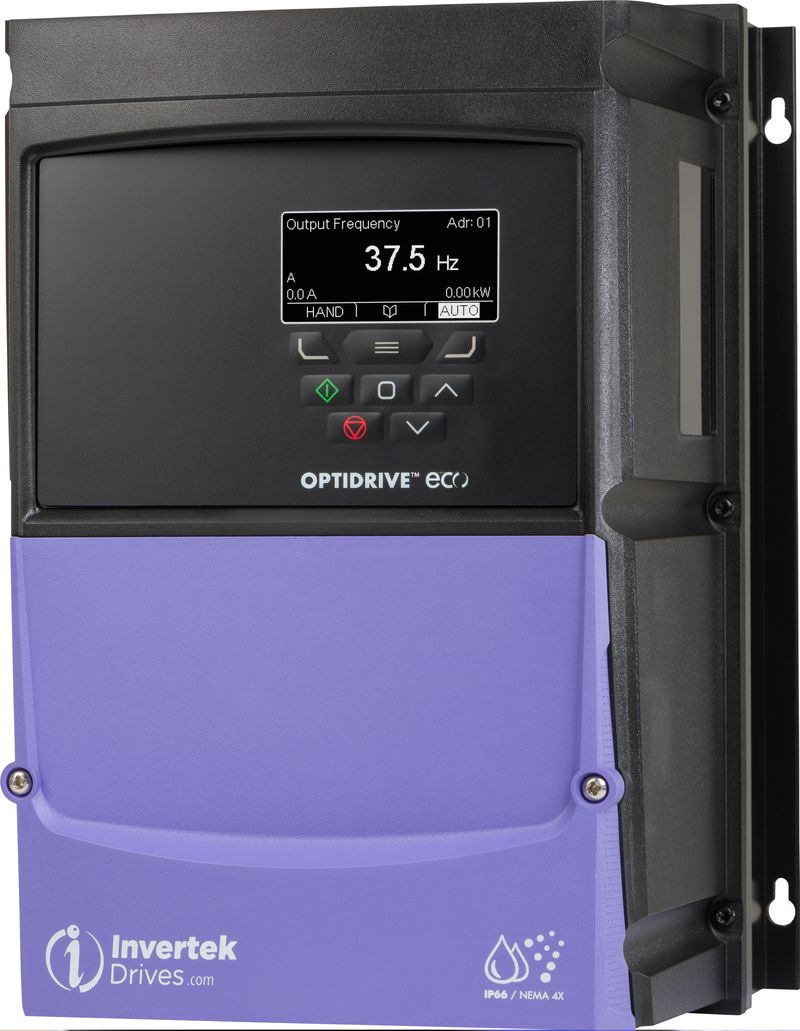

7.5kW 400V Invertek Optidrive Eco Series Drive
Direct swap - standard panel footprint and terminal layout.
SKU: ODV-3-340180-3F1A
£1,244.00
ex VAT
£1,492.80 inc. VAT
Phase / IP Rating
Order in -
→ despatched today, arrives tomorrow before 5pm
★ 2pm Promise: place your order before 2pm and it is despatched the same working day. Guaranteed, not just aimed for.
Not sure this is the right drive?
Talk to a UK engineer. Average response < 5 min. 100% no-obligation
Larger quantities?
Get in touch for a custom quote.
Designed with durability in mind, the 7.5kW 400V Invertek Optidrive Eco Series Drive delivers reliable results. Perfect for industrial environments where strength and reliability are essential.
| Power | 7.5 kW |
|---|---|
| Power (HP) | 10 HP |
| Rated output current | 18 A |
| Supply voltage | 380–480 V AC |
| Supply phase | Three-phase |
| Output frequency | 0–250 Hz |
| RFI filter | Integrated |
| Frame size | Size 3 |
| IP rating | IP66 |
| Weight | 6.6 kg |
| Series | Optidrive Eco |
| Brand | Invertek |
| Manufacturer part no. | ODV-3-340180-3F1A |
| Warranty | 12 months manufacturer |
| SKU | ODV-3-340180-3F1A |
| Power | 7.5 kW |
|---|---|
| Power (HP) | 10 HP |
| Rated output current | 18 A |
| Supply voltage | 380–480 V AC |
| Supply phase | Three-phase |
| Output frequency | 0–250 Hz |
| RFI filter | Integrated |
| Frame size | Size 3 |
| IP rating | IP66 Isolator |
| Weight | 6.6 kg |
| Series | Optidrive Eco |
| Brand | Invertek |
| Manufacturer part no. | ODV-3-340180-3F1E |
| Warranty | 12 months manufacturer |
| SKU | ODV-3-340180-3F1E |
UK delivery
Next working day to most of the UK, on a fully tracked courier - you'll have the tracking link the moment it leaves our racking.
★ 2pm Promise: place your order before 2pm and it is despatched the same working day. Guaranteed, not just aimed for.
Shipping worldwide
We ship to 70+ countries with rates calculated live at checkout, so the price you see is the price you pay - no surprise invoice a week later. Moving several units, or need pallet freight? Get a freight quote on WhatsApp.
Returns
Specified the wrong one? Send it back within 14 days, unused and in its original packaging, and we'll refund it. Built-to-order and modified items are the one exception. Read the full returns policy →
Availability
2 × Three Phase / Three Phase / IP66 on the shelf in our UK warehouse, boxed and ready to go out today.
3 × Three Phase / Three Phase / IP66 Isolator on the shelf in our UK warehouse, boxed and ready to go out today.
Which mounting do I need?
The mounting type describes how the motor is fixed in place and how the shaft connects to your equipment. Choosing the right one ensures a direct, drop-in fit.
- B3 (Foot) - bolts down through feet on the base. The most common general-purpose mounting.
- B5 (Flange) - a large machined flange with clearance holes bolts directly to your gearbox or machine face.
- B14 (Face) - a smaller spigot/face flange with tapped holes, for lighter direct-coupled loads.
- B35 / B34 - combination mountings that provide both feet and a flange for extra support.
Still not sure? Message an engineer with your machine or existing motor's frame and we'll confirm the exact mounting for you.
