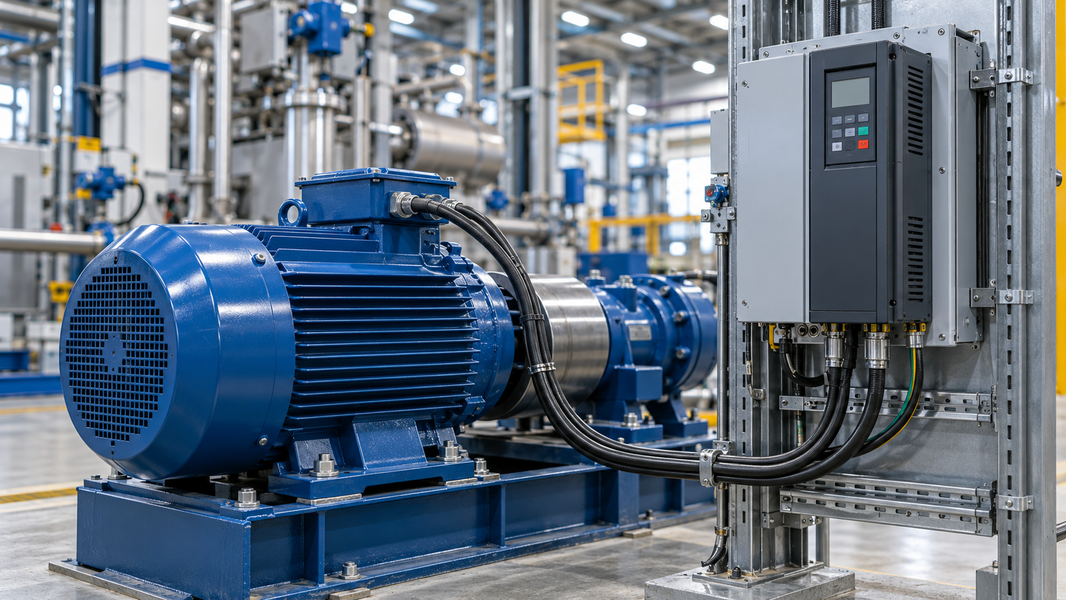

Can You Use a Variable Frequency Drive on Any Motor?
A variable frequency drive (VFD) provides adjustable motor speed by varying the frequency and voltage supplied to an electric motor. However, not e...
5.0★★★★★
12 reviews
11kW 3000rpm 2 Pole 380-415V/660-690V 50Hz IE3 UM3A Universal Motors
Drop-in replacement - IEC frame dimensions.
SKU: UM3A 160M-2 B3
£694.73
ex VAT
£833.68 inc. VAT
Mounting
Order in -
→ despatched today, arrives tomorrow before 5pm
★ 2pm Promise: place your order before 2pm and it is despatched the same working day. Guaranteed, not just aimed for.
Not sure this is the right motor?
Talk to a UK engineer. Average response < 5 min. 100% no-obligation
Larger quantities?
Get in touch for a custom quote.
The Universal Motors UM3A 160M-2 is a 11kW 2-pole three-phase induction motor in an aluminium frame. It is rated IE3 Premium Efficiency and runs at 2965rpm on a 50Hz supply. The winding is dual voltage, 380-415V delta or 660-690V star, so it suits direct-on-line or star-delta starting.
Technical specifications
| Part number | UM3A 160M-2 |
|---|---|
| Series | Universal Motors UM3A, aluminium, IE3 Premium Efficiency |
| Rated output | 11 kW (15 hp) |
| Poles / synchronous speed | 2 pole / 3000 rpm |
| Rated speed | 2965 rpm |
| Supply | 380-415V / 660-690V, 3-phase, 50Hz |
| Efficiency at full load | 91.2% |
| Rated current at 400V | 19.56 A |
| Power factor (cos φ) | 0.89 |
| Rated torque | 35.4 Nm |
| Starting current (Ia/In) | 7.9 |
| Frame size | IEC 160M1 |
| Enclosure | TEFV, IP55 |
| Insulation class | F |
| Duty | S1 continuous |
| Bearings | DE 6309 2Z C3 / NDE 6209 2Z C3 |
| Noise | 87 dB(A) |
| Weight (B3) | 100 kg |
Why choose an aluminium IE3 motor
An aluminium frame keeps the motor light and easy to handle, resists corrosion and dissipates heat well. IE3 Premium Efficiency keeps running costs down on motors that run for long hours. At 91.2% full-load efficiency, the UM3A 160M-2 is rated IE3 on the manufacturer's datasheet.
Typical applications
- Pumps and fans
- Compressors
- Conveyors and packaging machinery
- General-purpose industrial drives
Download the datasheet for each mounting from this page. For help with sizing, starting method or a matched drive, contact our engineers.
| Power | 11.0 kW |
|---|---|
| Power (HP) | 15.0 HP |
| Poles | 2 |
| Full-load speed | 2965 rpm |
| Frequency | 50 Hz |
| Voltage | 380-415V/660-690V |
| Phase | Three-Phase |
| Nominal current | 19.56 A |
| Power factor (cos φ) | 0.89 |
| Efficiency class | IE3 |
| Efficiency | 91.2% |
| Rated torque | 35.4 Nm |
| Starting current (Ia/In) | 7.9 |
| Duty rating | S1 |
| Protection rating | IP55 |
| Insulation class | F |
| Frame size | 160M1 |
| Frame material | Aluminium |
| Mounting | B3 Foot |
| Bearings (DE / NDE) | DE 6309 2Z C3 / NDE 6209 2Z C3 |
| Noise level | 87 dB(A) |
| Weight | 100.0 kg |
| Series | UM3A |
| Brand | Universal Motors |
| Motor type code | UM3A 160M-2-2 |
| Base part number | UM3A 160M-2 |
| Full part number | UM3A 160M-2 B3 |
| Warranty | 12 months manufacturer |
| SKU | UM3A 160M-2 B3 |
| Power | 11.0 kW |
|---|---|
| Power (HP) | 15.0 HP |
| Poles | 2 |
| Full-load speed | 2965 rpm |
| Frequency | 50 Hz |
| Voltage | 380-415V/660-690V |
| Phase | Three-Phase |
| Nominal current | 19.56 A |
| Power factor (cos φ) | 0.89 |
| Efficiency class | IE3 |
| Efficiency | 91.2% |
| Rated torque | 35.4 Nm |
| Starting current (Ia/In) | 7.9 |
| Duty rating | S1 |
| Protection rating | IP55 |
| Insulation class | F |
| Frame size | 160M1 |
| Frame material | Aluminium |
| Mounting | B5 Flange |
| Bearings (DE / NDE) | DE 6309 2Z C3 / NDE 6209 2Z C3 |
| Noise level | 87 dB(A) |
| Weight | 100.0 kg |
| Series | UM3A |
| Brand | Universal Motors |
| Motor type code | UM3A 160M-2-2 |
| Base part number | UM3A 160M-2 |
| Full part number | UM3A 160M-2 B5 |
| Warranty | 12 months manufacturer |
| SKU | UM3A 160M-2 B5 |
| Power | 11.0 kW |
|---|---|
| Power (HP) | 15.0 HP |
| Poles | 2 |
| Full-load speed | 2965 rpm |
| Frequency | 50 Hz |
| Voltage | 380-415V/660-690V |
| Phase | Three-Phase |
| Nominal current | 19.56 A |
| Power factor (cos φ) | 0.89 |
| Efficiency class | IE3 |
| Efficiency | 91.2% |
| Rated torque | 35.4 Nm |
| Starting current (Ia/In) | 7.9 |
| Duty rating | S1 |
| Protection rating | IP55 |
| Insulation class | F |
| Frame size | 160M1 |
| Frame material | Aluminium |
| Mounting | B14 Face |
| Bearings (DE / NDE) | DE 6309 2Z C3 / NDE 6209 2Z C3 |
| Noise level | 87 dB(A) |
| Weight | 100.0 kg |
| Series | UM3A |
| Brand | Universal Motors |
| Motor type code | UM3A 160M-2-2 |
| Base part number | UM3A 160M-2 |
| Full part number | UM3A 160M-2 B14 |
| Warranty | 12 months manufacturer |
| SKU | UM3A 160M-2 B14 |
| Power | 11.0 kW |
|---|---|
| Power (HP) | 15.0 HP |
| Poles | 2 |
| Full-load speed | 2965 rpm |
| Frequency | 50 Hz |
| Voltage | 380-415V/660-690V |
| Phase | Three-Phase |
| Nominal current | 19.56 A |
| Power factor (cos φ) | 0.89 |
| Efficiency class | IE3 |
| Efficiency | 91.2% |
| Rated torque | 35.4 Nm |
| Starting current (Ia/In) | 7.9 |
| Duty rating | S1 |
| Protection rating | IP55 |
| Insulation class | F |
| Frame size | 160M1 |
| Frame material | Aluminium |
| Mounting | B35 Foot and Flange |
| Bearings (DE / NDE) | DE 6309 2Z C3 / NDE 6209 2Z C3 |
| Noise level | 87 dB(A) |
| Weight | 100.0 kg |
| Series | UM3A |
| Brand | Universal Motors |
| Motor type code | UM3A 160M-2-2 |
| Base part number | UM3A 160M-2 |
| Full part number | UM3A 160M-2 B35 |
| Warranty | 12 months manufacturer |
| SKU | UM3A 160M-2 B35 |
| Power | 11.0 kW |
|---|---|
| Power (HP) | 15.0 HP |
| Poles | 2 |
| Full-load speed | 2965 rpm |
| Frequency | 50 Hz |
| Voltage | 380-415V/660-690V |
| Phase | Three-Phase |
| Nominal current | 19.56 A |
| Power factor (cos φ) | 0.89 |
| Efficiency class | IE3 |
| Efficiency | 91.2% |
| Rated torque | 35.4 Nm |
| Starting current (Ia/In) | 7.9 |
| Duty rating | S1 |
| Protection rating | IP55 |
| Insulation class | F |
| Frame size | 160M1 |
| Frame material | Aluminium |
| Mounting | B34 Foot and Face |
| Bearings (DE / NDE) | DE 6309 2Z C3 / NDE 6209 2Z C3 |
| Noise level | 87 dB(A) |
| Weight | 100.0 kg |
| Series | UM3A |
| Brand | Universal Motors |
| Motor type code | UM3A 160M-2-2 |
| Base part number | UM3A 160M-2 |
| Full part number | UM3A 160M-2 B34 |
| Warranty | 12 months manufacturer |
| SKU | UM3A 160M-2 B34 |
UK delivery
Next working day to most of the UK, on a fully tracked courier - you'll have the tracking link the moment it leaves our racking.
★ 2pm Promise: place your order before 2pm and it is despatched the same working day. Guaranteed, not just aimed for.
Shipping worldwide
We ship to 70+ countries with rates calculated live at checkout, so the price you see is the price you pay - no surprise invoice a week later. Moving several units, or need pallet freight? Get a freight quote on WhatsApp.
Returns
Specified the wrong one? Send it back within 14 days, unused and in its original packaging, and we'll refund it. Built-to-order and modified items are the one exception. Read the full returns policy →
Availability
7 × B3 Foot mounting on the shelf in our UK warehouse, boxed and ready to go out today.
10 × B5 Flange mounting on the shelf in our UK warehouse, boxed and ready to go out today.
9 × B14 Face mounting on the shelf in our UK warehouse, boxed and ready to go out today.
11 × B35 Foot and Flange mounting on the shelf in our UK warehouse, boxed and ready to go out today.
5 × B34 Foot and Face mounting on the shelf in our UK warehouse, boxed and ready to go out today.
Which mounting do I need?
The mounting type describes how the motor is fixed in place and how the shaft connects to your equipment. Choosing the right one ensures a direct, drop-in fit.
- B3 (Foot) - bolts down through feet on the base. The most common general-purpose mounting.
- B5 (Flange) - a large machined flange with clearance holes bolts directly to your gearbox or machine face.
- B14 (Face) - a smaller spigot/face flange with tapped holes, for lighter direct-coupled loads.
- B35 / B34 - combination mountings that provide both feet and a flange for extra support.
Still not sure? Message an engineer with your machine or existing motor's frame and we'll confirm the exact mounting for you.
