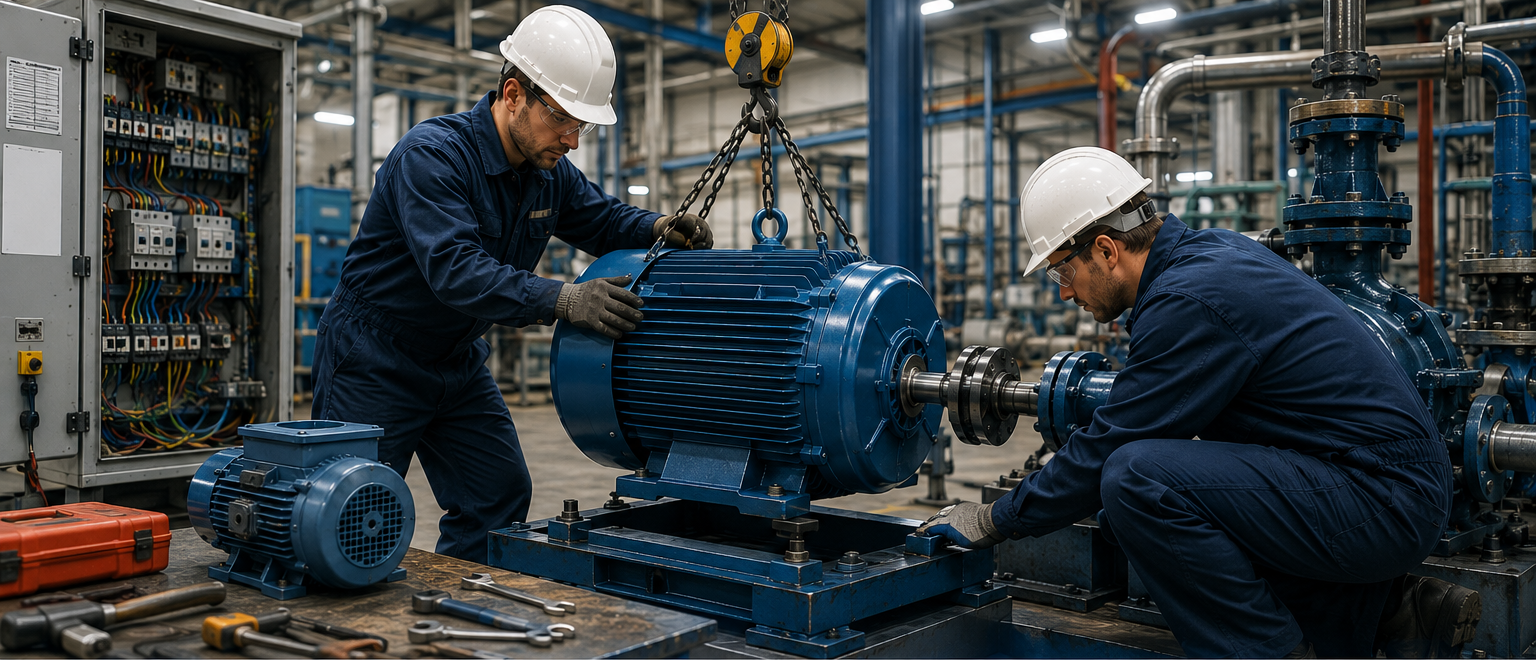

Step-by-Step Process for Replacing an Industrial Electric Motor

Industrial electric motors power everything from pumps to conveyors to compressors, fans, mixers, and manufacturing equipment. When a motor reaches the end of its service life, replacing it correctly is important in order to maintain productivity, reduce energy costs, and avoid unplanned downtime.

If you are a maintenance engineer, plant manager, facility operator, or procurement professional, it is important to understand the motor replacement process. This can help to prevent costly mistakes and improve the reliability of the equipment.

This blog explains the complete step-by-step process for replacing an industrial electric motor, including selection of the motor, installation, commissioning, and common pitfalls to avoid.

Industrial Motor Replacement Checklist

• Record motor nameplate data
• Verify frame size
• Confirm shaft dimensions
• Check voltage and frequency
• Review load requirements
• Isolate power using LOTO
• Align the motor and driven equipment
• Verify rotation direction
• Measure current draw
• Monitor vibration after startup

What Is the Process for Replacing an Industrial Electric Motor?

Step 1: Collect Motor Nameplate Information

Before contacting an industrial electric motor supplier, gather complete specifications of the motor.

Key information includes:

Specification	Why It Matters
Horsepower HP or kW	Determines output capacity
Voltage	Ensures electrical compatibility
Full Load Current FLA	Supports protection settings
Speed RPM	Matches equipment requirements
Frequency 50 Hz UK Standard	Required for proper operation
Frame Size	Ensures mounting compatibility
Duty Rating	Confirms application suitability
Enclosure Type	Protects against environmental conditions
Efficiency Rating	Impacts operating costs

Having accurate nameplate data helps to avoid oversizing or undersizing the replacement order.

Step 2: Evaluate Repair vs Replacement

A common question among maintenance teams is:

Should you repair or replace an industrial motor?

Replacement is generally recommended when:

• Repair costs exceed 50-60% of replacement cost
• Multiple failures have occurred
• Efficiency upgrades are available
• Downtime costs are high
• Spare parts are difficult to obtain

Repair may be appropriate when:

• The motor is relatively new
• Damage is limited
• Replacement lead times are excessive

Many facilities in the UK now replace older motors with IE3 and IE4 efficiency models in order to reduce energy consumption and comply with sustainability targets.

Step 3: Choose the Correct Replacement Motor

Selecting the correct motor from the best industrial motor manufacturers in the UK includes more than matching horsepower.

Critical Selection Factors

Power Rating

The replacement motor should match actual load requirements.

Oversized motors can:

• Waste energy
• Operate inefficiently
• Increase operating costs

Undersized motors can:

• Overheat
• Trip protection devices
• Fail permanently

Speed Requirements

Common industrial motor speeds include:

• 750 RPM
• 1,000 RPM
• 1,500 RPM
• 3,000 RPM

Incorrect speed selection can affect equipment performance and process output.

Environmental Conditions

Consider:

• Ambient temperature
• Moisture exposure
• Dust levels
• Chemical contaminants
• Outdoor installation requirements

Enclosure Types

Common options include:

• TEFC Totally Enclosed Fan Cooled
• ODP Open Drip Proof
• Explosion-Proof
• Washdown Duty

Step 4: Source the Motor from a Reliable Supplier

Working with an experienced industrial electric supplier helps ensure correct motor selection and technical support.

When evaluating suppliers, consider:

• Stock availability
• Technical expertise
• Energy-efficiency options
• Lead times
• Warranty coverage
• After-sales support

Many facilities also partner with a motor control warehouse that can supply compatible drives, starters, protection devices, and control components alongside replacement motors.

Step 5: Verify Mechanical Compatibility

Before installation, confirm that the new motor matches existing equipment.

Check:

Frame Size

Frame dimensions must align with existing mounting arrangements.

Shaft Diameter

Incorrect shaft sizing can prevent coupling installation.

Mounting Configuration

Common configurations include:

• Foot-mounted
• Flange-mounted
• Face-mounted

Couplings and Pulley Systems

Inspect all connected components for wear or damage before installing the new motor.

Step 6: Isolate and Lock Out Power Sources

Safety is a critical part of any motor replacement project.

Before starting the work, you should:

• Shut down the equipment completely
• Apply lockout/tagout procedures
• Verify zero voltage
• Follow UK electrical safety regulations
• Wear appropriate PPE

Failure to isolate electrical energy can result in serious injury or equipment damage.

Step 7: Remove the Existing Motor

After power isolation:

1. Disconnect wiring.
2. Label all conductors.
3. Remove coupling or belt systems.
4. Loosen mounting hardware.
5. Lift the motor using approved lifting equipment.
6. Inspect the baseplate and mounting surfaces.

Heavy industrial motors often require cranes, hoists, or lifting frames for safe removal.

Step 8: Install the Replacement Motor

Position the replacement motor carefully.

Mounting

Ensure the motor sits evenly on the base.

Alignment

Proper alignment is essential as misalignment can cause:

• Bearing failures
• Excessive vibration
• Shaft damage
• Increased energy consumption

Laser alignment systems are commonly used in modern UK industrial facilities to obtain accurate alignment.

Fastening

Torque all mounting bolts according to manufacturer specifications.

Step 9: Connect Electrical Systems and Controls

Reconnect wiring according to the motor wiring diagram. Verify:

• Voltage settings
• Phase sequence
• Grounding connections
• Overload protection settings

Many industrial motors now operate with Variable Frequency Drives in order to improve efficiency and process control.

Step 10: Test the Motor Before Full Operation

Before returning equipment to service, perform commissioning tests.

Recommended Startup Checks

Rotation Direction

Verify correct motor rotation.

Current Draw

Compare operating current with nameplate values.

Voltage Balance

Check for voltage imbalance between phases.

Vibration Analysis

Measure vibration levels to identify alignment or installation issues.

Temperature Monitoring

Confirm normal operating temperatures.

Step 11: Monitor Performance After Startup

The first few weeks after installation are critical. Therefore, it is important to monitor:

• Bearing temperatures
• Current consumption
• Noise levels
• Vibration readings
• Energy use

Establishing baseline performance data supports future predictive maintenance programs.

Repair vs Replace Industrial Motor

Factor	Repair	Replace
Upfront Cost	Lower	Higher
Efficiency	Same	Improved
Reliability	Variable	Higher
Warranty	Limited	Full
Downtime Risk	Higher	Lower

Conclusion

Replacing an industrial electric motor involves far more than swapping one unit for another. Proper motor selection, accurate installation, alignment, commissioning, and post-startup monitoring all play critical roles in long-term equipment reliability.

By following a structured replacement process and working with a reputable industrial electric motor supplier such as Industrial Motor Warehouse, maintenance teams can minimise downtime, improve energy efficiency, and extend the life of valuable industrial equipment.
