Industrial facilities, workshops, agricultural operations, and commercial buildings often depend on a three phase AC motor for its efficiency, reliability, and ability to handle heavy loads. However, one of the most common questions engineers, maintenance teams, and business owners ask is: Can a Three Phase AC Motor run on a Single Phase Power?
Yes, a three phase AC motor can run on single-phase power when used with a Variable Frequency Drive (VFD), rotary phase converter, or static phase converter. A VFD is generally the most efficient and reliable option, allowing many motors to obtain 90-95% of normal performance while providing speed control and motor protection.
This guide explains how it works, available methods for conversion, performance limitations, costs, and when conversion makes commercial sense.
Understanding a Three Phase AC Motor
A three phase AC motor uses three electrical phases separated by 120 degrees. This creates a rotating magnetic field that delivers:
- Higher starting torque
- Improved efficiency
- Smoother operation
- Reduced vibration
- Better power delivery for industrial machinery
These motors are commonly used in:
- Manufacturing plants
- Conveyor systems
- Industrial pumps
- Air compressors
- HVAC equipment
- Agricultural machinery
- Commercial workshops
According to the International Energy Agency, electric motors consume nearly half of the global electricity generated, making motor efficiency a major factor in reducing operational costs.
Why a Three Phase Motor Cannot Normally Start on Single Phase Power?
Single-phase electricity produces a pulsating magnetic field rather than a rotating magnetic field.
Because of this:
- The motor cannot generate sufficient starting torque
- The rotor may not begin rotating
- Excessive heat can build up
- Windings may become damaged
- Motor lifespan can be significantly reduced
This is why a direct connection between a motor three phase supply and a single phase supply is generally not recommended.
Methods to Run a Three Phase AC Motor on Single Phase Power

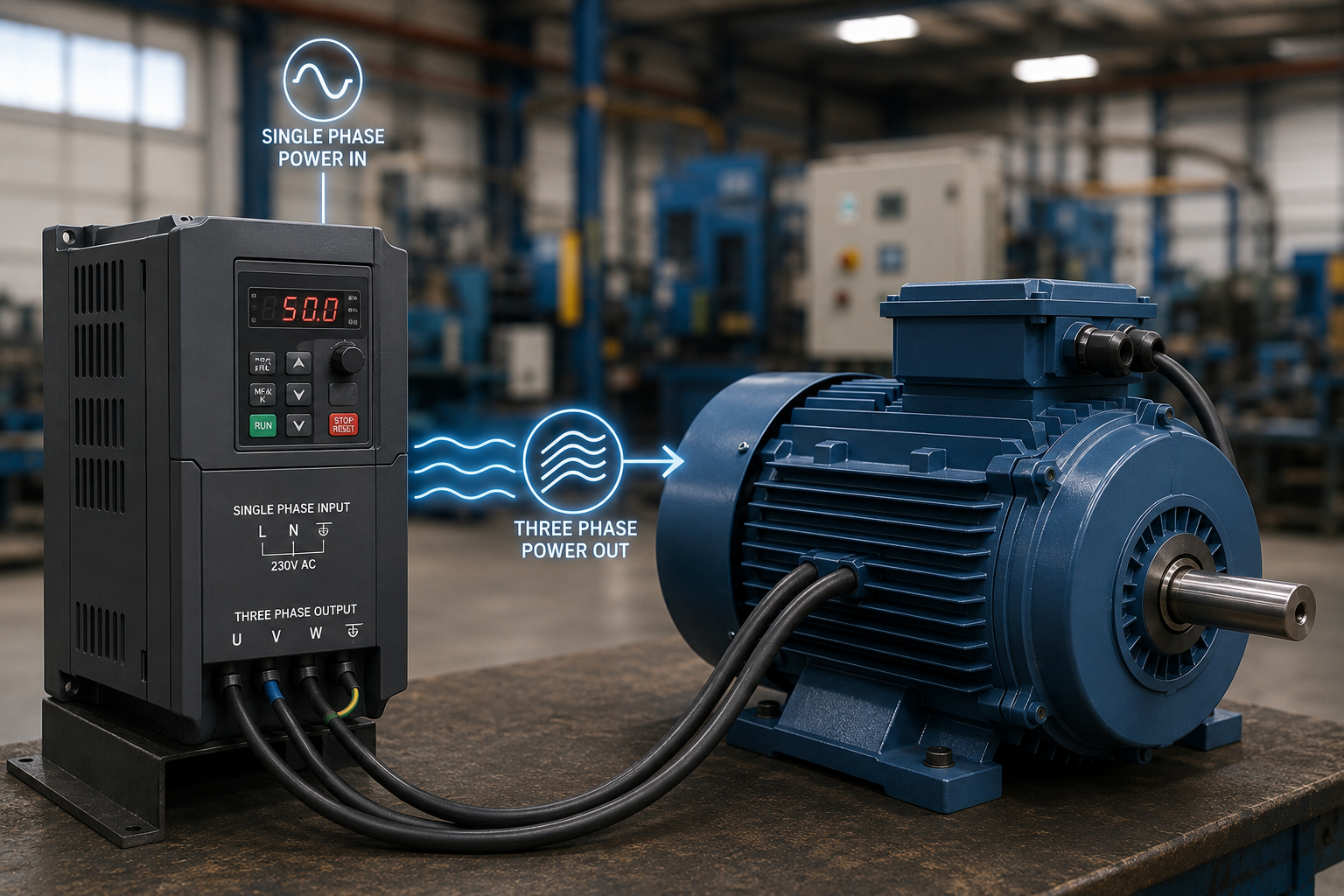

1. Variable Frequency Drive (VFD) - Recommended Solution
A VFD converts incoming single phase power into a simulated three phase output.
Benefits include:
- Smooth motor starting
- Adjustable speed control
- Improved energy efficiency
- Reduced mechanical stress
- Better motor protection
Many UK industrial facilities use VFDs when upgrading equipment in locations where three phase utility power is unavailable.
Example
A woodworking workshop with only 230V single phase power can operate a 2.2kW three phase compressor using a VFD sized at approximately 3kW input capacity.
2. Rotary Phase Converter
A rotary phase converter generates the additional phases mechanically.
Advantages:
- Suitable for larger motors
- Can operate multiple machines
- Reliable for workshop environments
Disadvantages:
- Higher costs for installation
- Additional maintenance requirements
- Increased energy consumption
3. Static Phase Converter
Static converters are typically used for light-duty applications.
Advantages:
- Lower upfront costs
- Simple installation
Disadvantages:
- Reduced starting torque
- Lower efficiency
- Not suitable for heavy industrial loads
For most industrial users, a VFD remains the preferred option.
Performance Comparison
| Feature | Three Phase Supply | Single Phase with VFD |
|---|---|---|
| Starting Torque | Excellent | Very Good |
| Efficiency | Highest | High |
| Speed Control | Limited | Excellent |
| Installation Cost | Higher utility connection | Lower infrastructure cost |
| Industrial Suitability | Excellent | Excellent for many applications |
Power Loss and Efficiency Considerations
When properly sized, a VFD can allow three phase electric motors to obtain approximately 90-95% of their optimal performance.
However, factors affecting performance include:
- Motor size
- Load characteristics
- VFD quality
- Supply voltage
- Operating environment
Oversized motors often experience reduced efficiency when operated through conversion equipment.
Expert Insight from Industrial Motor Specialists
In real-world industrial environments, the decision is rarely about whether conversion is possible; it is about whether it is economical.
For motors under 5kW, a high-quality VFD is often the most cost-effective solution. For larger motors above 10kW, businesses should evaluate the long-term benefits of installing a dedicated three phase supply.
Industrial motor engineers frequently recommend performing a full load assessment before selecting a conversion method. This prevents undersized drives, overheating issues, and unexpected downtime.
Common Applications
Industrial three-phase motors operating from single phase power are frequently found in:
- Woodworking machinery
- Commercial compressors
- Agricultural pumps
- Packaging equipment
- CNC machines
- Workshop machinery
- HVAC systems
These applications often benefit from the speed control and soft-start functionality provided by modern VFD technology.
Industrial Motor Selection Tips
Before converting a motor, verify:
- Motor voltage rating
- Full-load current requirements
- Starting torque demands
- Duty cycle requirements
- Environmental conditions
- VFD compatibility
Working with an experienced industrial electric motor supplier can help ensure proper sizing and long-term reliability.
Conclusion
So, can a Three Phase AC Motor run on Single Phase Power?
Yes, but it requires suitable conversion equipment such as a Variable Frequency Drive, rotary phase converter, or static converter.
For most industrial and commercial applications, a properly sized VFD provides the best balance of performance, efficiency, motor protection, and cost savings.
Businesses considering a conversion should evaluate load requirements, operating conditions, and future expansion plans before selecting a solution. When implemented correctly, running a three phase AC motor on single-phase power can be a reliable and economical alternative to installing a new three-phase electrical service.
Frequently Asked Questions
No. A direct connection generally will not allow the motor to start properly and may cause overheating or damage.
A Variable Frequency Drive (VFD) is typically the most effective and efficient solution.
A properly sized VFD usually allows the motor to achieve around 90-95% of its intended performance.
Yes, but larger motors may require rotary phase converters or dedicated three-phase power depending on load demands.
In many cases, yes. Small and medium-sized facilities often find motor conversion significantly more affordable than utility infrastructure upgrades.
Yes. VFDs can reduce energy consumption by matching motor speed to actual load requirements and minimizing startup current.
