Replacing an industrial motor is not simply a matter of matching horsepower. A motor that appears similar can have different voltage, speed, frame dimensions, enclosure, mounting configuration, service factor, or duty characteristics.
Choosing the wrong specification can result in poor performance, overheating, excessive current draw, premature bearing failure, or mechanical fitment problems.

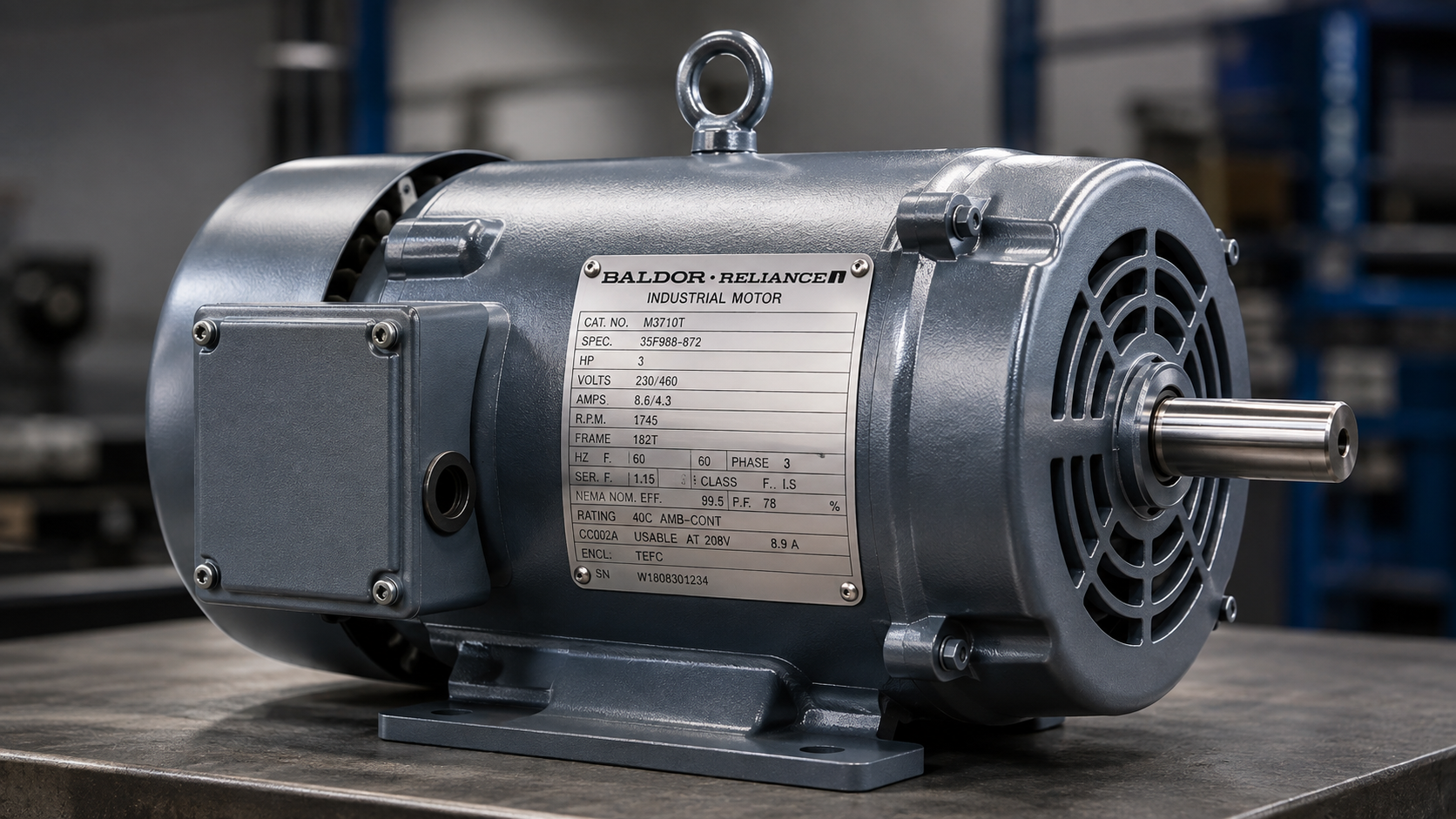

For engineers and maintenance teams working with Baldor motors, the nameplate is the most important starting point. It contains the mechanical and electrical information needed to identify the existing motor and select a technically compatible replacement.
Quick Answer: What Should You Match on a Baldor Motor Nameplate?
When replacing a Baldor electric motor, do not match horsepower alone. At minimum, compare:
- Manufacturer and catalog/model number
- Horsepower
- Voltage
- Phase
- Frequency
- Full-load amperage
- RPM
- NEMA frame
- Enclosure
- Service factor
- Efficiency
- Mounting configuration
- Shaft dimensions and rotation requirements
- Application or duty classification
For a direct replacement, the frame, mounting dimensions, shaft configuration, electrical ratings, enclosures, and operating characteristics are just as important as horsepower.
Understanding the Information on a Baldor Motor Nameplate
1. Horsepower: Match the Required Mechanical Output
Horsepower indicates the motor’s rated mechanical output. A 10 HP motor, for example, is designed to deliver 10 horsepower at its rated operating conditions.
However, simply replacing a 10 HP motor with another 10 HP motor does not guarantee compatibility.
The replacement must also provide appropriate torque characteristics, speed, voltage, current, and mechanical dimensions.
For applications such as conveyors, pumps, compressors, fans, and machine tools, the driven load determined the required motor characteristics. A motor with the correct HP but unmatchable starting torque or speed can perform poorly even though the nameplate rating appears correct.
2. Voltage and Phase
Voltage is one of the most important electrical specifications.
Common industrial Baldor Reliance motors are available in configurations such as 230/460 V three-phase. The correct correction depends on the motor’s lead configuration and the supply voltage.
A single-phase motor cannot simply replace a three-phase motor because the horsepower rating is identical. Likewise, a Baldor three phase motor must be evaluated against the available three-phase supply and the motor’s connection diagram.
ABB’s current Baldor-Reliance general-purpose three-phase enclosed motor range covers applications from fractional horsepower ratings through hundreds of horsepower, demonstrating why the complete nameplate specification, not just the brand, is essential when selecting a replacement
3. Frequency
Frequency is normally shown as Hz.
Some modern Baldor-Reliance motors are designed for dual-frequency operation and may display 50 Hz and 60 Hz ratings.
Frequency affects motor speed. For an induction motor, synchronous speed is approximately:
Ns = 120 × f / P
Where:
- Ns = synchronous speed in RPM
- f = frequency in Hz
- P = number of poles
For example, a four-pole motor has a synchronous speed of 1,8000 RPM at 60 Hz. Its actual rated speed will normally be lower because an induction motor operates with slip.
This makes the RPM shown on the nameplate particularly important when replacing a motor connected to a pump, gearbox, fan, conveyor, or other speed-sensitive load.
4. RPM and Motor Speed
A typical industrial AC induction motor may have a rated speed around:
- 3,600 RPM for a two-pole design
- 1,800 RPM for a four-pole design
- 1,200 RPM for a six-pole design
- 900 RPM for an eight-pole design
These are approximate synchronous speeds at 60 Hz; actual nameplate RPM is lower because of slip.
For example, a 1,750 RPM nameplate motor should not automatically be replaced with a 3,450 RPM motor simply because they both have the same horsepower.
Doubling motor speed can dramatically change the driven equipment’s operating point. For centrifugal pumps and fans, speed changes can have particularly significant effects because affinity relationships make flow, head/pressure, and power highly speed-dependent.
Industry Insight: Always verify the existing motor’s actual nameplate RPM before selecting a replacement. Speed is a performance specification, not merely an identification number.
5. Full-Load Amps (FLA)
Full-load amperage indicates current the motor draws at rated load and rated operating conditions.
FLA is useful for:
- Checking electrical mobility
- Sizing conductors and protective equipment
- Evaluating motor loading
- Troubleshooting abnormal current
- Comparing replacement motor efficiency and operating characteristics
Do not use FLA as the sole method of determining whether a motor is a replacement. Two motors with the same horsepower can have different full-load currents because of differences in voltage, efficiency, power factor, design, and other characteristics.
6. Service Factor
Service Factor (SF) indicates the multiplier associated with a motor’s rated horsepower under specified conditions.
For example, a 10 HP motor with a 1.15 service factor has a service-factor horsepower of 11.5 HP. This does not mean the motor should continuously be operated at 11.5 HP.
Current Baldor-Reliance standard motor documentation shows that many NEMA T- frame TEFC motors have a 1.15 service factor, although service factor varies by design of the motor and product category. Inverter-duty and vector-duty AC motors can have a 1.0 service factor.
Therefore, always match the actual service-factor requirement rather than assuming every Baldor AC motor has the same SF.
7. NEMA Frame: One of the Most Important Replacement Specifications
The NEMA frame is critical for mechanical interchangeability.
A frame destination such as 143T, 145T, 182T, 213T, or 215T defines standardized mechanical dimensions, including important mounting and shaft relationships.
However, similar-looking frame numbers should never be treated as interchangeable without checking the dimensional data.
The frame affects:
- Mounting-hole dimensions
- Shaft height
- Shaft diameter
- Shaft extension
- Overall dimensions
- Mounting arrangement
Baldor-Reliance catalogs cover a wide range of NEMA frames, from small fractional-horsepower motors through large industrial designs.
Replacement Rule: If the existing motor is mounted directly to machinery, verify the complete frame and dimensional requirements before ordering.
8. Enclosure: TEFC, ODP, and More
The enclosure determines how the motor is protected from its environment.
Two common configurations are:
TEFC — Totally Enclosed Fan Cooled:
A closed motor with an external fan providing cooling. TEFC designs are widely used in industrial environments where protection from dust, moisture, and contaminants is important.
ODP — Open Drip Proof:
An open construction that permits greater airflow but provides less environmental protection than a TEFC design.
Replacing an ODP motor with a TEFC motor or vice versa needs consideration of cooling, environmental conditions, dimensions, and application requirements.
Baldor-Reliance offers multiple enclosure and duty configurations, including general purpose, severe-duty, washdown, and speciality motors.
9. Efficiency and Power Factor
Efficiency tells you how effectively electrical input power is converted into mechanical output.
For an industrial motor:
Input power = Output power ÷ Efficiency
A more efficient motor can reduce electrical losses, particularly in applications with long operating hours.
When replacing an older motor, comparing efficiency can therefore be commercially important.
A high-efficiency replacement may reduce operating costs over the motor’s life. Although, the actual savings depend on operating hours, load profile, electricity cost, and difference in efficiency.
10. Mounting and Shaft Configuration
Electrical compatibility does not guarantee mechanical compatibility.
Check whether the motor is:
- Foot mounted
- C-face mounted
- Footless
- Flange mounted
- Vertical
- Horizontal
- Equipped with a brake
Then verify shaft diameter, shaft extension, keyaway, and mounting dimensions.
For example, a motor with correct horsepower and frame family may still need a different shaft arrangement for the driven equipment.
Baldor Motor Replacement: What Should You Compare?
| Specification | Existing Motor | Replacement Requirement |
|---|---|---|
| HP | Nameplate rating | Same or engineering-approved alternative |
| Voltage | Nameplate voltage | Must watch supply |
| Phase | 1 or 3 phase | Must match supply |
| Frequency | 50/60 Hz | Must match application |
| RPM | Rated RPM | Match load requirements |
| Frame | NEMA frame | Verify dimensional compatibility |
| Enclosure | TEFC/ODP/etc. | Match environment |
| Service Factor | Nameplate SF | Match or exceed application requirement |
| Efficiency | Rated efficiency | Prefer equal or higher where needed |
| Mounting | Foot/C-face/etc. | Must physically fit |
| Shaft | Diameter/extension/key | Must match driven equipment |
| Duty | General/severe/inverter/etc. | Match application |
Finding the Right Baldor Motor Replacement
Selecting the correct replacement begins with accurate nameplate information. Record the model/catalog number first, then verify HP, voltage, phase, frequency, RPM, frame, enclosure, service factor, efficiency, mounting, and dimensions of the shaft.
For industrial buyers, maintenance departments, OEMs, and engineers looking for replacement Baldor motors, Industrial Motor Warehouse provides access to a range of Baldor motor solutions for industrial applications.
Explore the available range of Baldor electric motors and compare specifications before selecting your replacements.
Shop Baldor Motors at Industrial Motor Warehouse
If you are unsure which motor matches an existing installation, use the complete nameplate and dimensional information,not just the horsepower, to identify the correct replacement.
Frequently Asked Questions
Can I replace a Baldor motor with the same horsepower from another manufacturer?
Potentially, but horsepower alone is insufficient. Voltage, phase, frequency, RPM, frame, enclosure, shaft dimensions, mounting, service factor, efficiency, and duty should all be evaluated.
What is the most important number on a Baldor motor nameplate?
There is no single number that determines compatibility. The catalog/model number is an excellent identification starting point, but the complete nameplate and mechanical dimensions should be checked before replacement.
What does the T in a NEMA frame such as 184T mean?
The suffix identifies a particular NEMA frame construction and dimensional standard. Always consult the applicable dimensional information rather than assuming two frames with similar numbers are interchangeable.
Are Baldor-Reliance motors still available?
Yes. Current ABB motor product lines include Baldor-Reliance branded NEMA motors across general-purpose, severe-duty, washdown, inverter-duty, and other industrial categories.
Should I choose a higher-efficiency motor as a replacement?
It can make economic sense, especially for heavily loaded motors with long annual operating hours. However, the replacement must still satisfy the application's electrical, mechanical, thermal, speed, torque, and environmental requirements.
Technical note: Motor selection should be validated against the manufacturer's current catalog, applicable NEMA requirements, the driven equipment's specifications, and site electrical conditions before installation.
