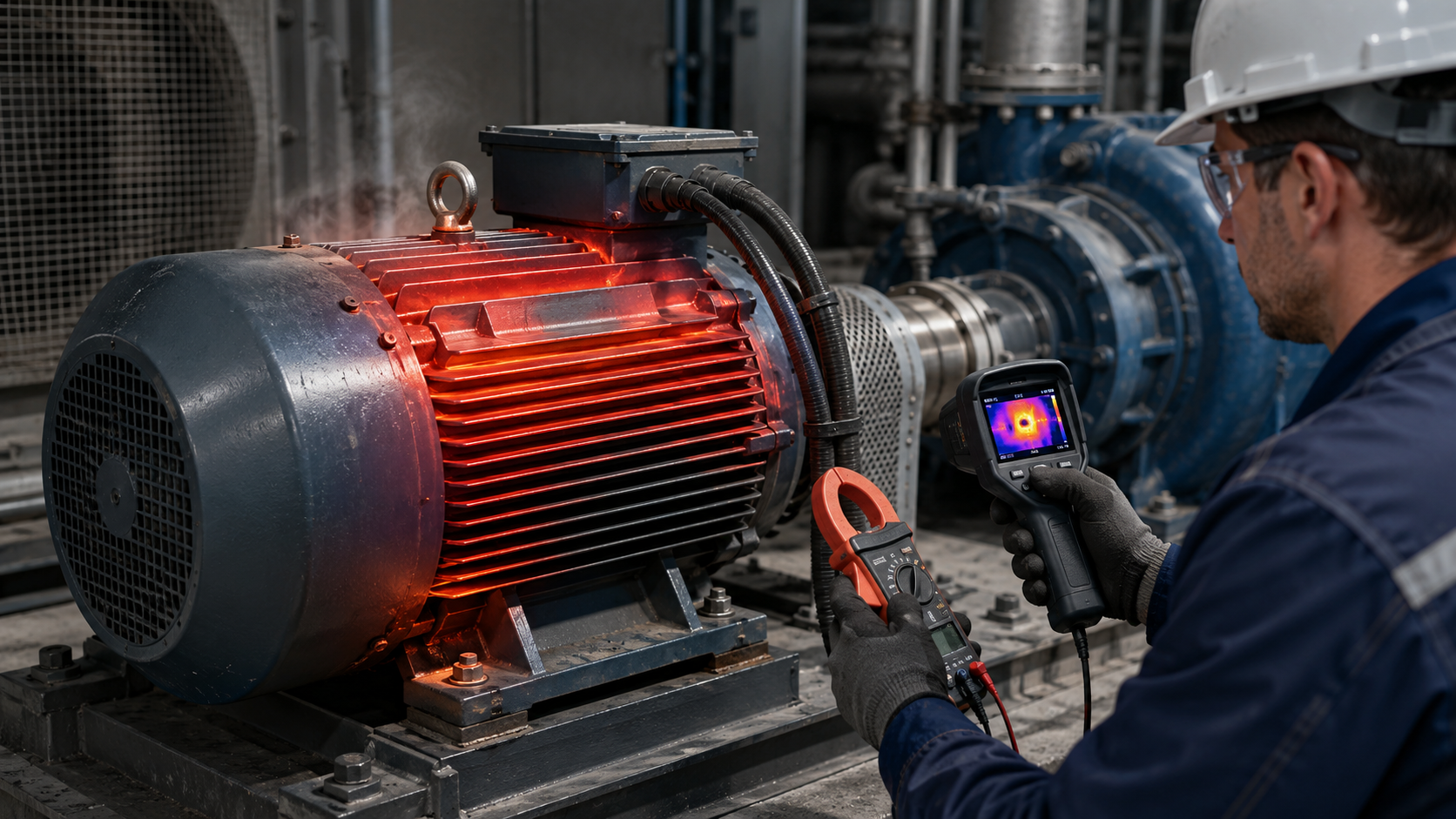

Overheating is a common issue affecting an AC electric motor in most of the industrial applications. An AC induction electric motor is used in industrial systems, HVAC equipment, or manufacturing lines.
Excess heat can ultimately reduce performance and degrade insulation. Therefore, it is crucial to understand the root causes of overheating along with early signs to detect, so that you can take the necessary preventive measures.
This technical guide explains the main reasons why an electric motor AC system overheats and provides practical diagnostic steps.
Understanding Heat Generation in AC Electric Motors
All AC electric motors produce heat during normal operations due to mechanical and electric losses. These typically include:
-
Copper losses in stator and rotor windings
-
Core losses from hysteresis and eddy currents
-
Mechanical losses from friction in bearings and air resistance
In a properly functioning AC induction electric motor, this heat is dissipated via cooling systems such as ventilation paths, fans, or external cooling mechanisms. Overheating happens when the generation exceeds the motor’s ability to dissipate it.
Common Causes of AC Electric Motor Overheating
1. Overloading
One of the main causes of overheating is operating the motor beyond its rated capacity. Thus, when an AC electric motor is overloaded:
-
The current drawn increases significantly
-
Copper losses rise exponentially
-
Insulation temperature rises quickly
What to check:
-
Compare actual load vs. rated load
-
Measure the current drawn using a clamp meter
-
Check for mechanical binding or excessive load demand
2. Poor Ventilation or Improper Cooling
Cooling is important in order to maintain safe operating temperatures. Blocked airflow or failed cooling systems can instantly lead to overheating.
Common issues are:
-
Clogged air vents or filters
-
Damaged or non-functional cooling fans
-
High ambient temperature environments
What to inspect:
-
Check airflow paths and clean debris
-
Ensure fan blades are intact and functioning correctly
-
Verify that the installation allows ample clearance for ventilation
3. Voltage Imbalance
Voltage imbalance is specifically harmful for AC induction electric motor systems. Even a small imbalance can result in a significant temperature rise.
Effects of voltage imbalance:
-
Uneven current distribution across phases
-
Increased losses and localised heating
-
Reduced motor lifespan and overall efficiency
What to check:
-
Measure phase voltage and calculate the imbalance percentage
-
Ensure the power stability of the power supply
-
Inspect wiring terminals and connections
4. Incorrect Voltage Levels
Operating an electric motor AC at an incorrect voltage, either too high or too low, can lead to overheating.
-
Overvoltage can increase core losses
-
Undervoltage causes higher current draw to maintain torque
What to check:
-
Compare the supply voltage with the motor nameplate rating
-
Monitor fluctuations in voltage during operation
-
Verify transformer or supply system performance
5. Mechanical Friction or Bearing Failure
Mechanical issues often contribute to overheating in AC electric motors.
Common issues such as worn or damaged bearings, insufficient lubrication, and shaft misalignment can result in overheating of an electric motor.
What to check:
-
Listen for unusual noise or vibration
-
Inspect bearing condition and lubrication levels
-
Check the alignment of shafts and other connected equipment
6. Insulation Breakdown
Motor windings are insulated in order to withstand electrical and heat stress. Over time, insulation degrades due to:
-
Thermal aging
-
Contamination like oil, dust, and moisture
-
Electrical stress
Once insulation weakens, it increases resistance and thus heat generation.
What to check:
-
Carry out insulation resistance testing
-
Look for discoloration or burnt smell
-
Check for moisture ingress
7. Frequent Start-Stop Cycles
Starting and stopping an AC electric motor repeatedly can produce excessive heat. This especially happens if the motor does not have enough time to cool between each cycle.
It is important as there is high inrush current at the time of startup and increased thermal stress on windings due to frequent stops.
What to check:
-
Review duty cycle and application requirements
-
Consider soft starters or variable frequency drives
8. Harmonics and Electrical Noise
In advanced industrial systems, non-linear loads and VFDs can introduce harmonics, which affect motor performance. Therefore, impacts on a motor, such as increased losses in windings and additional heating in the rotor and stator, can result in electrical noise.
What to check:
-
Analyse power quality
-
Use filters or harmonic mitigation solutions
AC vs DC Electric Motor: Why AC Motors Overheat Differently
When comparing the AC vs DC electric motor system, overheating behavior differs due to operation and design:
-
AC motors depend on alternating current and magnetic fields. It makes them even more sensitive to voltage harmonics and imbalance.
-
DC motors are more prone to brush and commutator-related issues
AC induction electric motor, especially those used in industrial applications, have a more robust design and need less maintenance. But they still rely heavily on proper electrical supply and cooling conditions.
Diagnostic Approach: What to Check First
When an AC electric motor overheats, you should follow a structured troubleshooting approach:
Step 1: Measure Electrical Parameters
-
Current draw
-
Voltage levels and imbalance
-
Power factors
Step 2: Inspect Mechanical Components
-
Bearings and lubrication
-
Shaft alignment
-
Load conditions
Step 3: Evaluate Cooling System
-
Airflow and ventilation
-
Fan operation
-
Ambient temperature
Step 4: Test Insulation
-
Insulation resistance
-
Winding condition
Step 5: Review Operating Conditions
-
Duty cycle
-
Start-stop frequency
-
Load variations
Tips for Effective Preventive Measures
To avoid overheating and extend the lifespan of an electric motor AC system, you should:
-
Implement regular inspections for electrical and mechanical components
-
Clean cooling systems and ensure unobstructed airflow
-
Monitor load conditions in order to prevent overloading
-
Use proper lubrication for bearings
-
Install protection devices such as thermal overload relays
-
Conduct insulation testing time-to -time
For operations in industrial sectors or facilities sourcing AC electric motors UK, ensuring compliance with standards and proper installation practices is equally important.
Conclusion
In an AC electric motor, overheating is not just a minor issue; it is often a warning sign of deeper mechanical or electrical problems. By understanding the main reasons, such as voltage imbalance, overloading, poor ventilation, and mechanical wear, you can take early corrective action and prevent costly failures.
A systematic diagnostic approach combined with proactive measures ensures that an AC induction electric motor runs efficiently. Keeping temperature under control is essential for performance, safety, and longer service life.
