UMSG90 10:1 Worm Gearbox - 35mm Hollow Output Bore, IEC 80/90/100/112 Input, Aluminium

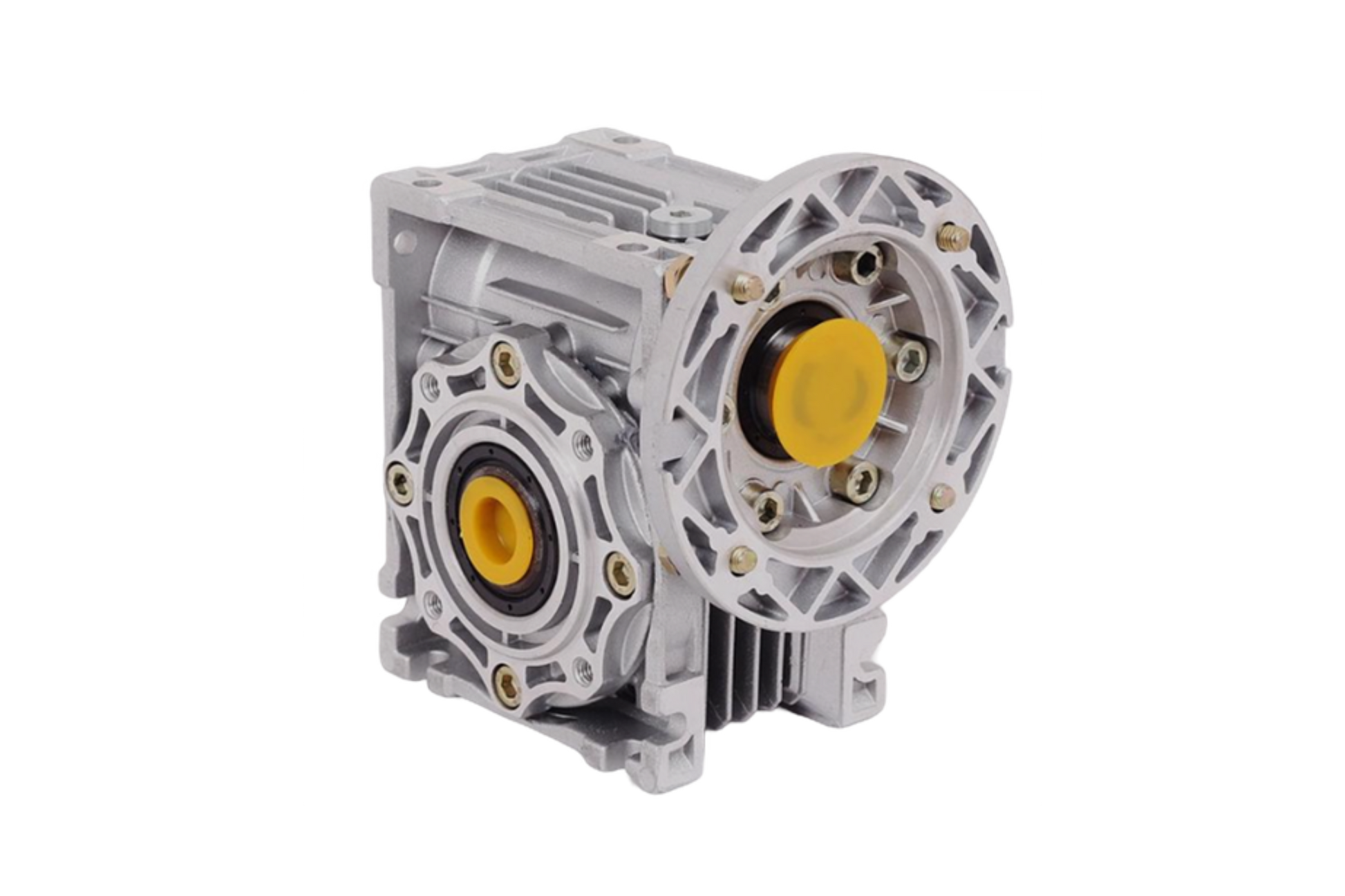

The Universal Motors UMSG90 10:1 worm gearbox is a single-reduction aluminium-housed 90mm centre-distance worm/wheel reducer with a 35mm hollow output bore. This gearbox can be paired with a TEFC IEC squirrel-cage motor, available in your choice of power and input flange - either B14 or B5 motor mounting, in IEC frame sizes 80/90/100/112. Use the motor power dropdown to match your application's torque and speed requirements.
Technical specification
- Frame: UMSG90 (centre distance 90mm)
- Reduction ratio: 10:1
- Output bore: 35mm hollow, reducing bushes available
- Input mounting: IEC 80/90/100/112 (B14 or B5 flange)
- Motor options: 2.2kW, 3kW, 4kW, 5.5kW
- Housing: aluminium, B3 foot-mounted
- Worm: hardened and ground steel; wheel: centrifugally cast bronze
- Lubrication: synthetic long-life, factory filled
- Gearbox weight: 24.0kg
- Maximum output torque: 310 Nm (ratio-dependent)
- Duty: S1 continuous
Applications
Typical uses include heavy conveyors, dosing hoppers, industrial mixers, hoists, bulk material handling.
Cross-reference
Interchangeable with: NMRV090, RV090, Motovario NMRV090, Bonfiglioli VF86.
Warranty and delivery
24-month manufacturer warranty. UK stock with next-day delivery.
