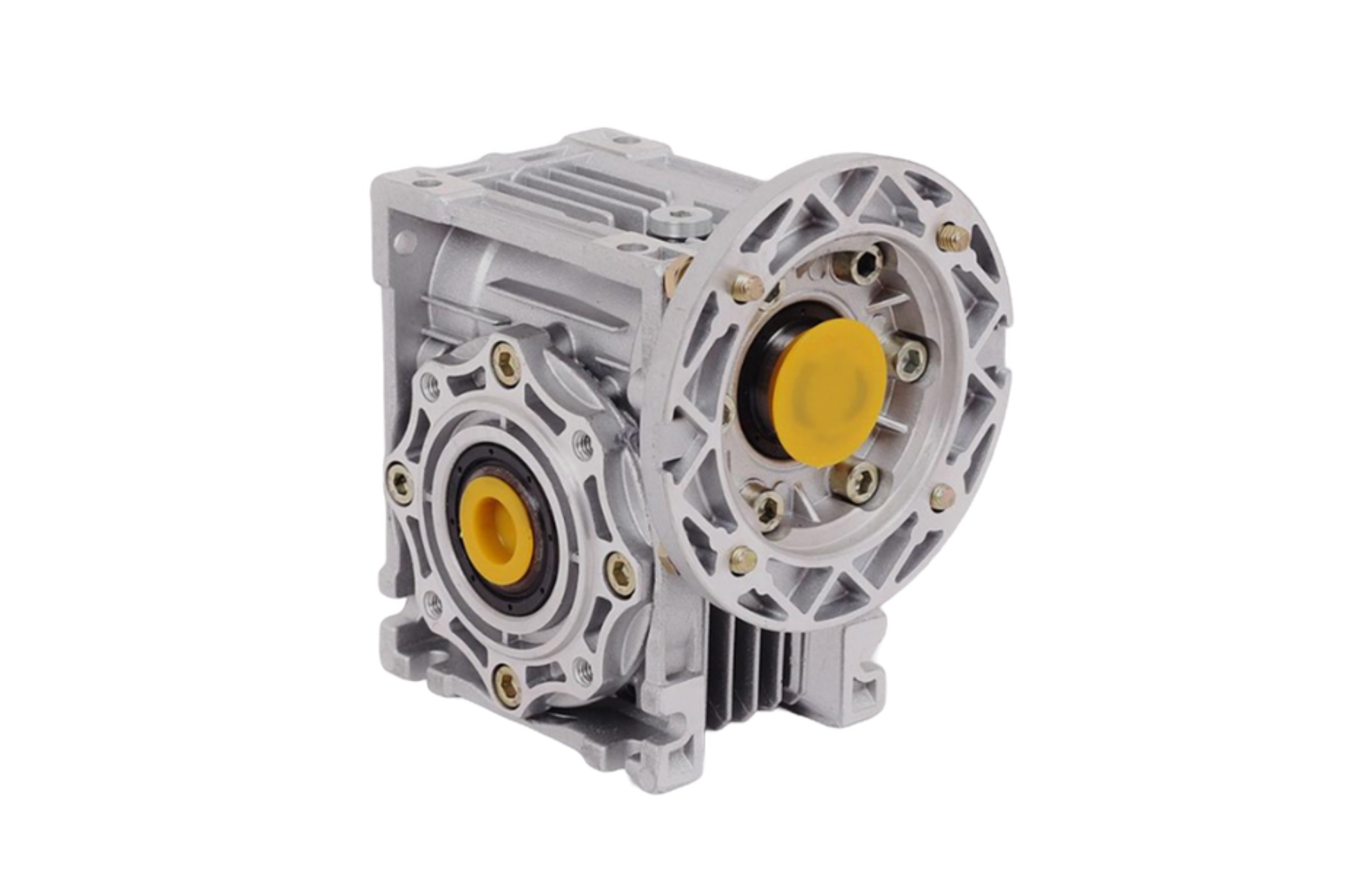

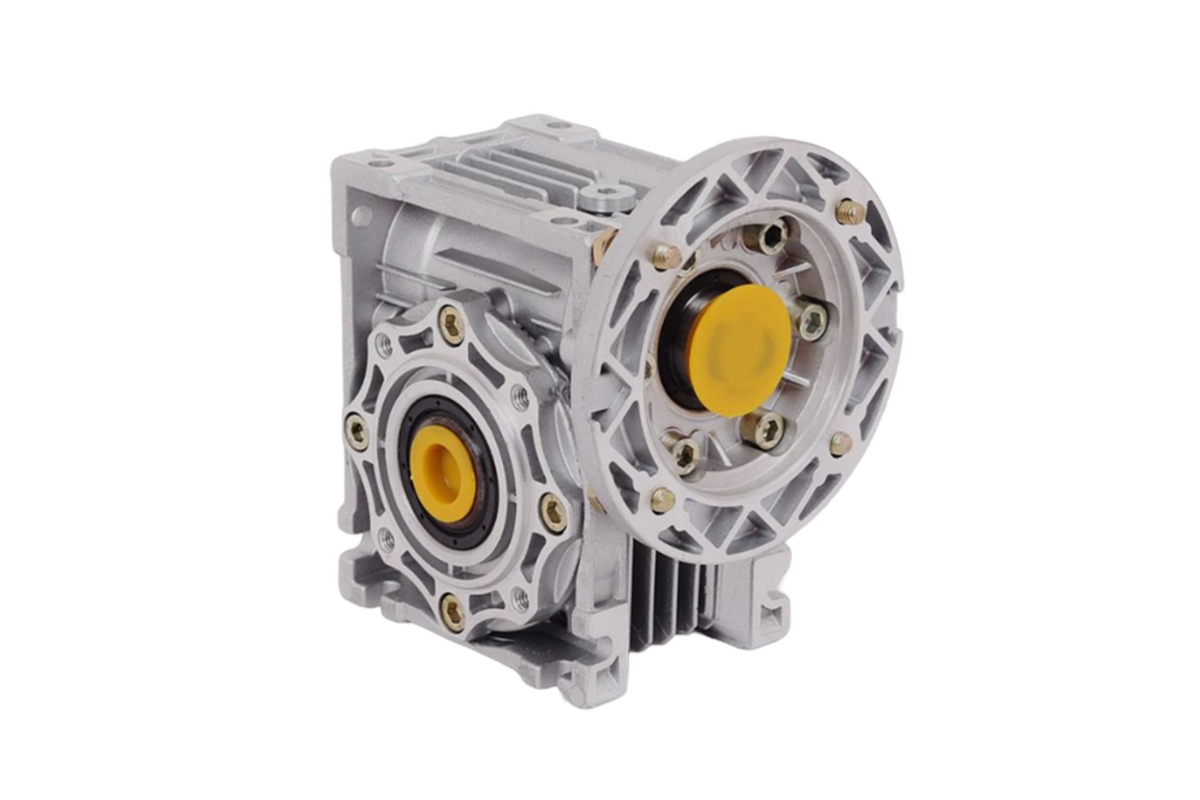

UMSG63 100:1 Worm Gearbox - 25mm Hollow Output Bore, IEC 71/80/90 Input, Aluminium

Drop-in replacement - standard IEC input flange and output shaft.
SKU: IMW-UMSG63-100.0-0.25kW-B14
UMSG63 100:1 Worm Gearbox - 25mm Hollow Output Bore, IEC 71/80/90 Input, Aluminium

Datasheet

★ Free · Per-variant
CEUKCARoHS
£156.35 ex VAT
£187.62 inc. VAT
Motor Power
Order in - → despatched today, arrives tomorrow before 5pm
★ 2pm Promise: place your order before 2pm and it is despatched the same working day. Guaranteed, not just aimed for.
Not sure this is the right gearbox? Talk to a UK engineer. Average response < 5 min. 100% no-obligation
WhatsApp an engineer Call 0116 403 0175
Larger quantities? Get in touch for a custom quote.
Request a quote

The Universal Motors UMSG63 100:1 worm gearbox is a single-reduction aluminium-housed 63mm centre-distance worm/wheel reducer with a 25mm hollow output bore. This gearbox can be paired with a TEFC IEC squirrel-cage motor, available in your choice of power and input flange - either B14 or B5 motor mounting, in IEC frame sizes 71/80/90. Use the motor power dropdown to match your application's torque and speed requirements.

Technical specification

  • Frame: UMSG63 (centre distance 63mm)
  • Reduction ratio: 100:1
  • Output bore: 25mm hollow, reducing bushes available
  • Input mounting: IEC 71/80/90 (B14 or B5 flange)
  • Motor options: 0.25kW, 0.37kW
  • Housing: aluminium, B3 foot-mounted
  • Worm: hardened and ground steel; wheel: centrifugally cast bronze
  • Lubrication: synthetic long-life, factory filled
  • Gearbox weight: 9.0kg
  • Maximum output torque: 118 Nm (ratio-dependent)
  • Duty: S1 continuous

Applications

Typical uses include medium conveyors, bottling lines, food processing, light hoists, mixing vessels.

Cross-reference

Interchangeable with: NMRV063, RV063, Motovario NMRV063, Bonfiglioli VF63.

Warranty and delivery

24-month manufacturer warranty. UK stock with next-day delivery.
