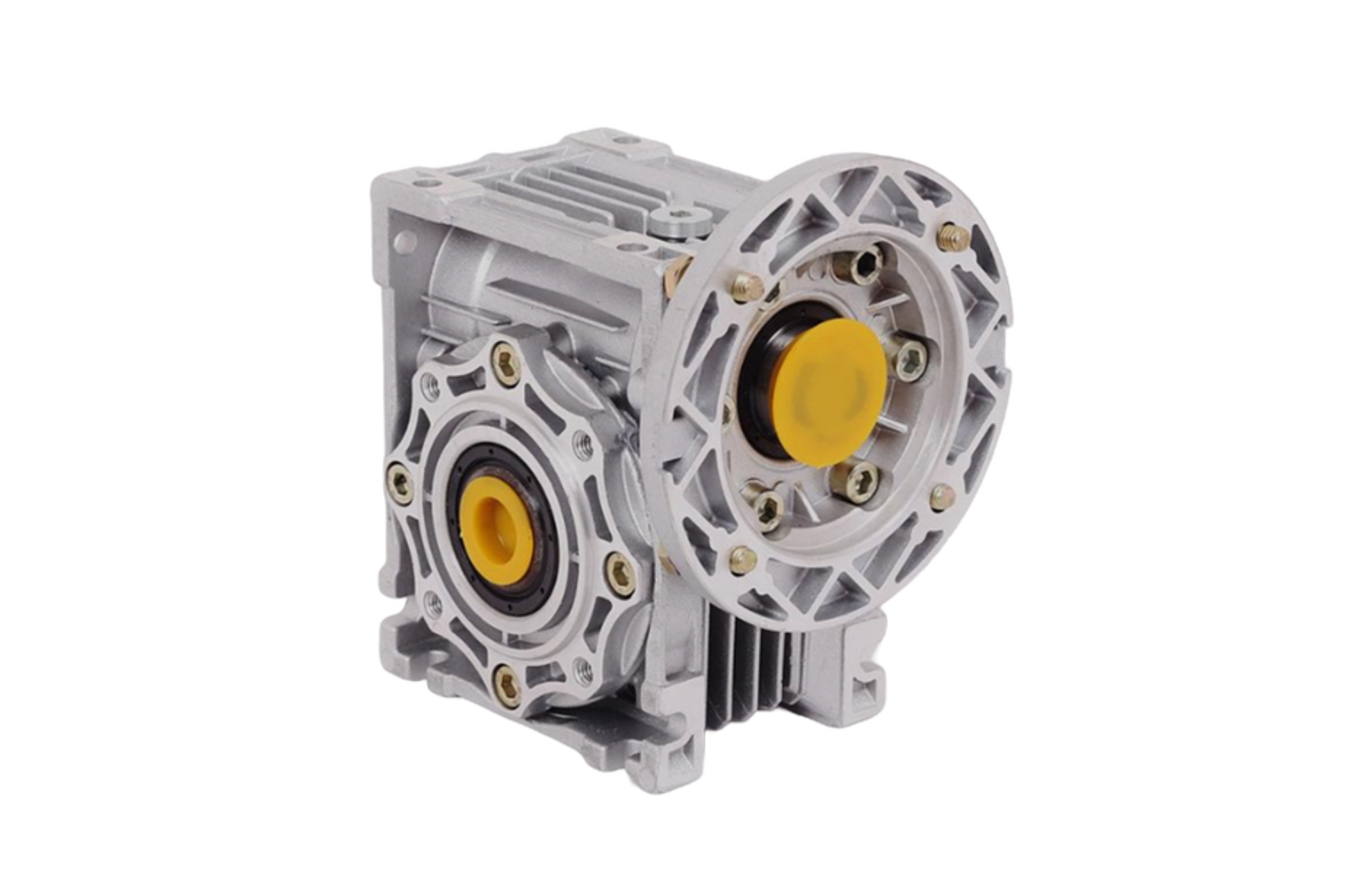

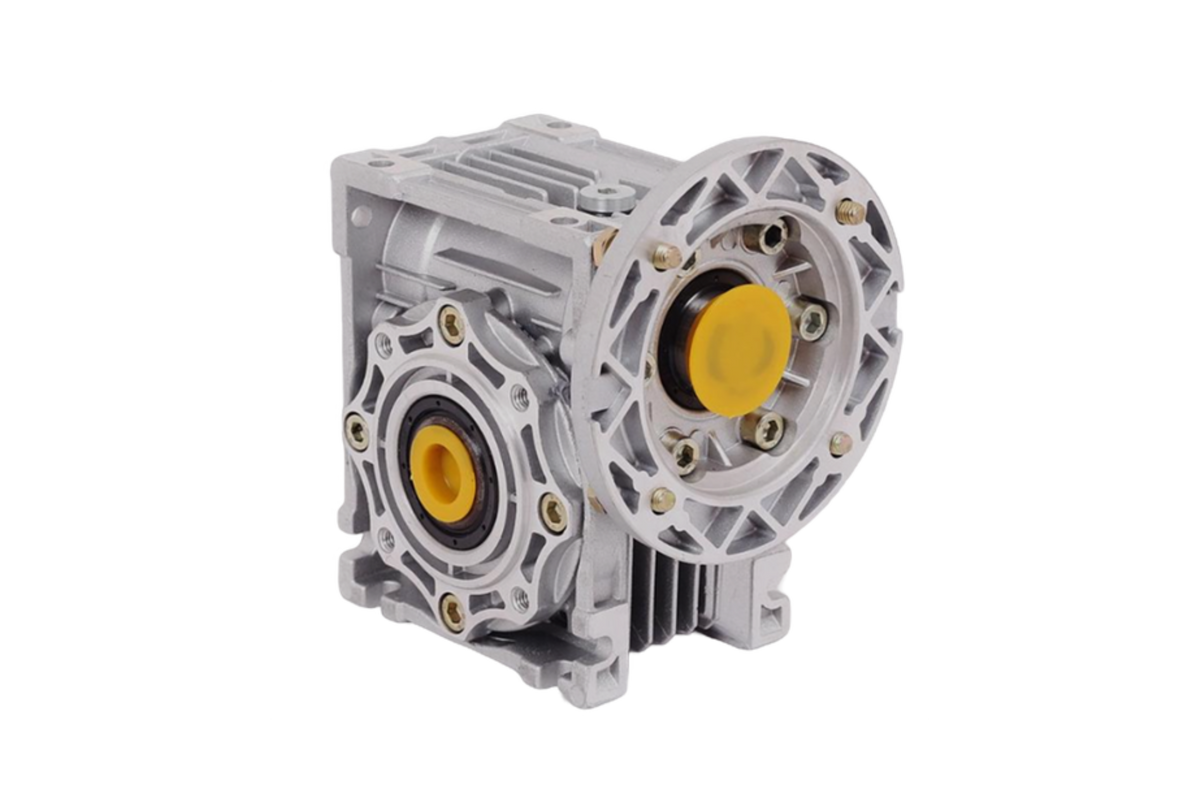

UMSG50 60:1 Worm Gearbox - 25mm Hollow Output Bore, IEC 63/71/80 Input, Aluminium

£116.58 GBP exc. VAT
£116.58 GBP
Shipping calculated at checkout.

The Universal Motors UMSG50 60:1 worm gearbox is a single-reduction aluminium-housed 50mm centre-distance worm/wheel reducer with a 25mm hollow output bore. This gearbox can be paired with a TEFC IEC squirrel-cage motor, available in your choice of power and input flange - either B14 or B5 motor mounting, in IEC frame sizes 63/71/80. Use the motor power dropdown to match your application's torque and speed requirements.

Technical specification

  • Frame: UMSG50 (centre distance 50mm)
  • Reduction ratio: 60:1
  • Output bore: 25mm hollow, reducing bushes available
  • Input mounting: IEC 63/71/80 (B14 or B5 flange)
  • Motor options: 0.12kW, 0.18kW, 0.25kW
  • Housing: aluminium, B3 foot-mounted
  • Worm: hardened and ground steel; wheel: centrifugally cast bronze
  • Lubrication: synthetic long-life, factory filled
  • Gearbox weight: 5.5kg
  • Maximum output torque: 68 Nm (ratio-dependent)
  • Duty: S1 continuous

Applications

Typical uses include conveyors, mixers, dosing systems, packaging lines, light winching.

Cross-reference

Interchangeable with: NMRV050, RV050, Motovario NMRV050, Bonfiglioli VF49.

Warranty and delivery

24-month manufacturer warranty. UK stock with next-day delivery.
