UMSG130 80:1 Worm Gearbox - 45mm Hollow Output Bore, IEC 90/100/112/132 Input, Aluminium

Drop-in replacement - standard IEC input flange and output shaft.
SKU: IMW-UMSG130-80.0-1.1kW-B5
UMSG130 80:1 Worm Gearbox - 45mm Hollow Output Bore, IEC 90/100/112/132 Input, Aluminium

Datasheet

★ Free · Per-variant
CEUKCARoHS
£566.78 ex VAT
£680.14 inc. VAT
Motor Power
Order in - → despatched today, arrives tomorrow before 5pm
★ 2pm Promise: place your order before 2pm and it is despatched the same working day. Guaranteed, not just aimed for.
Not sure this is the right gearbox? Talk to a UK engineer. Average response < 5 min. 100% no-obligation
WhatsApp an engineer Call 0116 403 0175
Larger quantities? Get in touch for a custom quote.
Request a quote

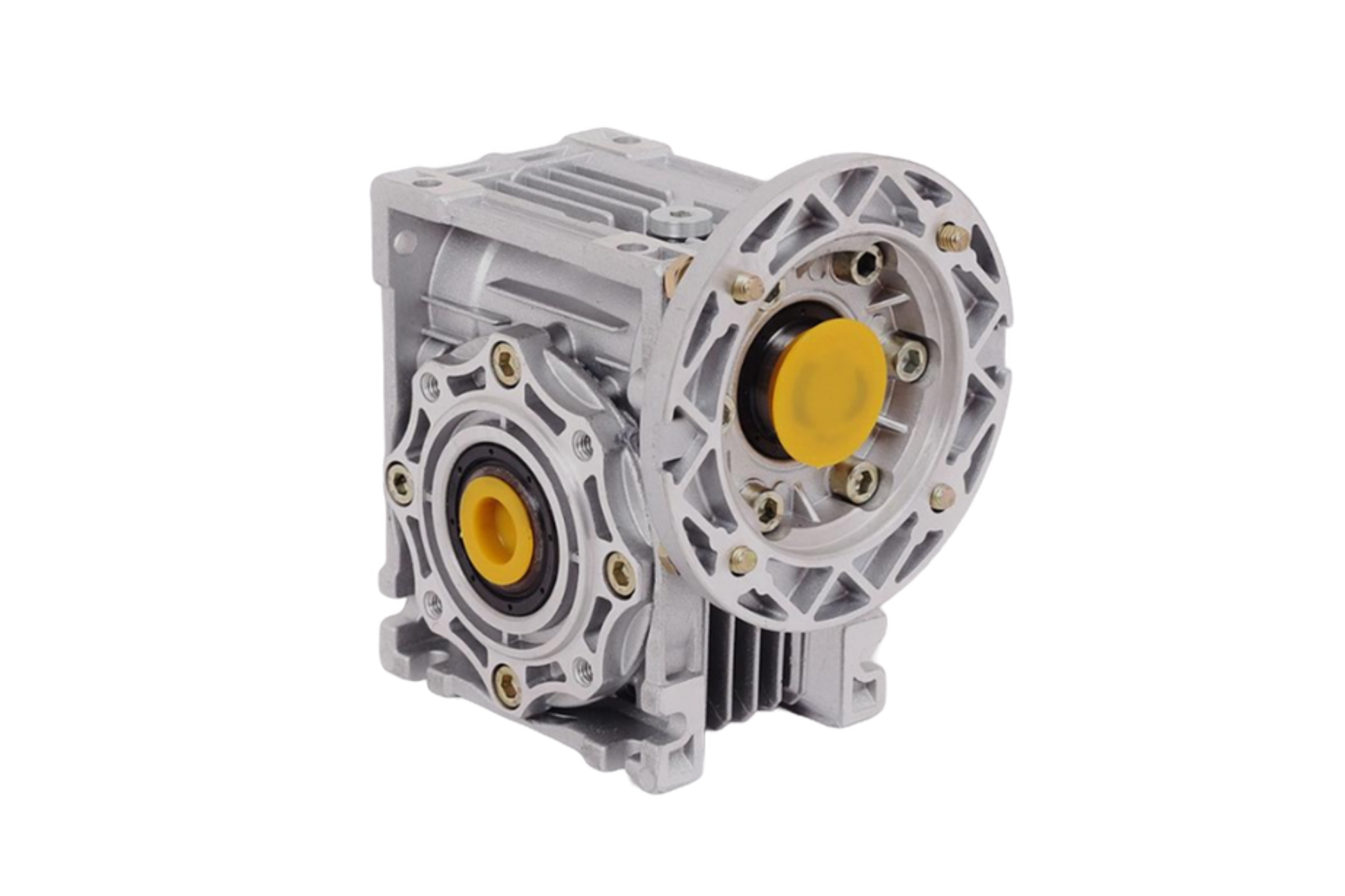

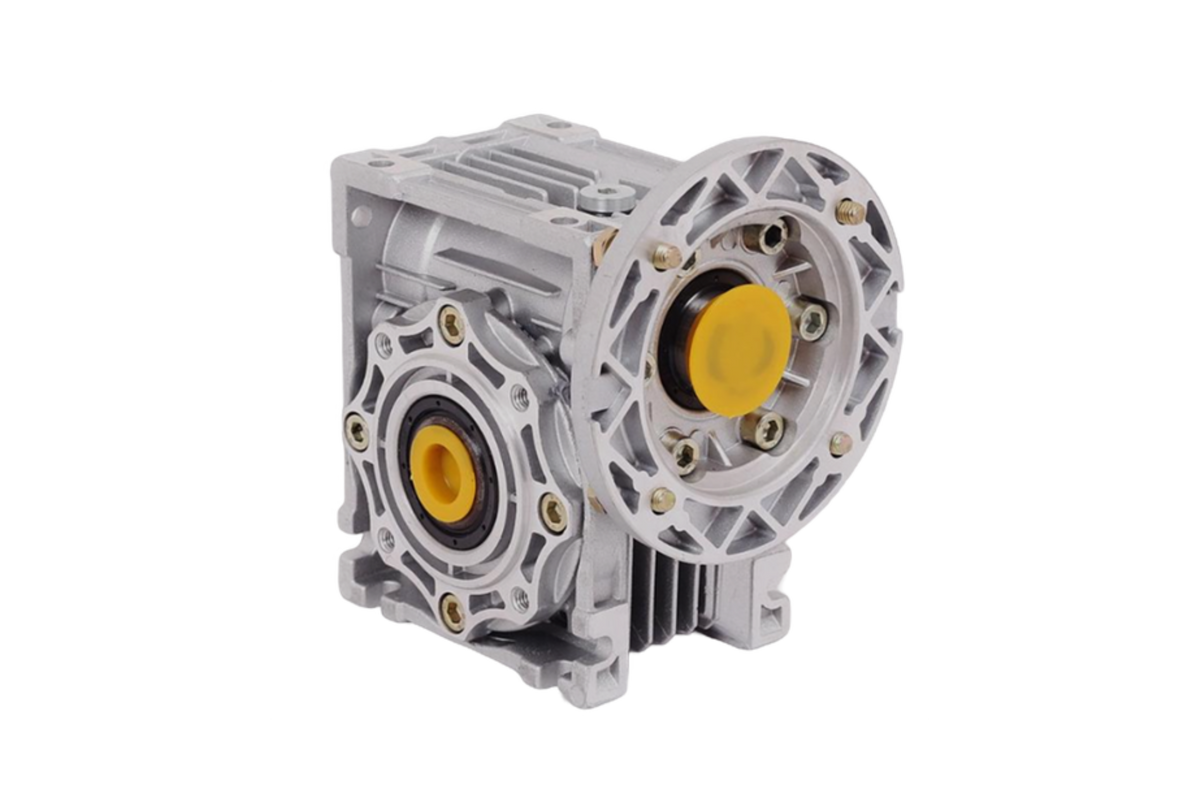

The Universal Motors UMSG130 80:1 worm gearbox is a single-reduction aluminium-housed 130mm centre-distance worm/wheel reducer with a 45mm hollow output bore. This gearbox can be paired with a TEFC IEC squirrel-cage motor, available in your choice of power and B5 motor mounting, in IEC frame sizes in IEC frame sizes 90/100/112/132. Use the motor power dropdown to match your application's torque and speed requirements.

Technical specification

  • Frame: UMSG130 (centre distance 130mm)
  • Reduction ratio: 80:1
  • Output bore: 45mm hollow, reducing bushes available
  • Input mounting: IEC 90/100/112/132 (B5 flange)
  • Motor options: 1.1kW, 1.5kW, 2.2kW
  • Housing: aluminium, B3 foot-mounted
  • Worm: hardened and ground steel; wheel: centrifugally cast bronze
  • Lubrication: synthetic long-life, factory filled
  • Gearbox weight: 70.0kg
  • Maximum output torque: 853 Nm (ratio-dependent)
  • Duty: S1 continuous

Applications

Typical uses include heavy industrial conveyors, bulk handling, heavy mixers, specialist winching systems.

Cross-reference

Interchangeable with: NMRV130, RV130, Motovario NMRV130, Bonfiglioli W110.

Warranty and delivery

24-month manufacturer warranty. UK stock with next-day delivery.
