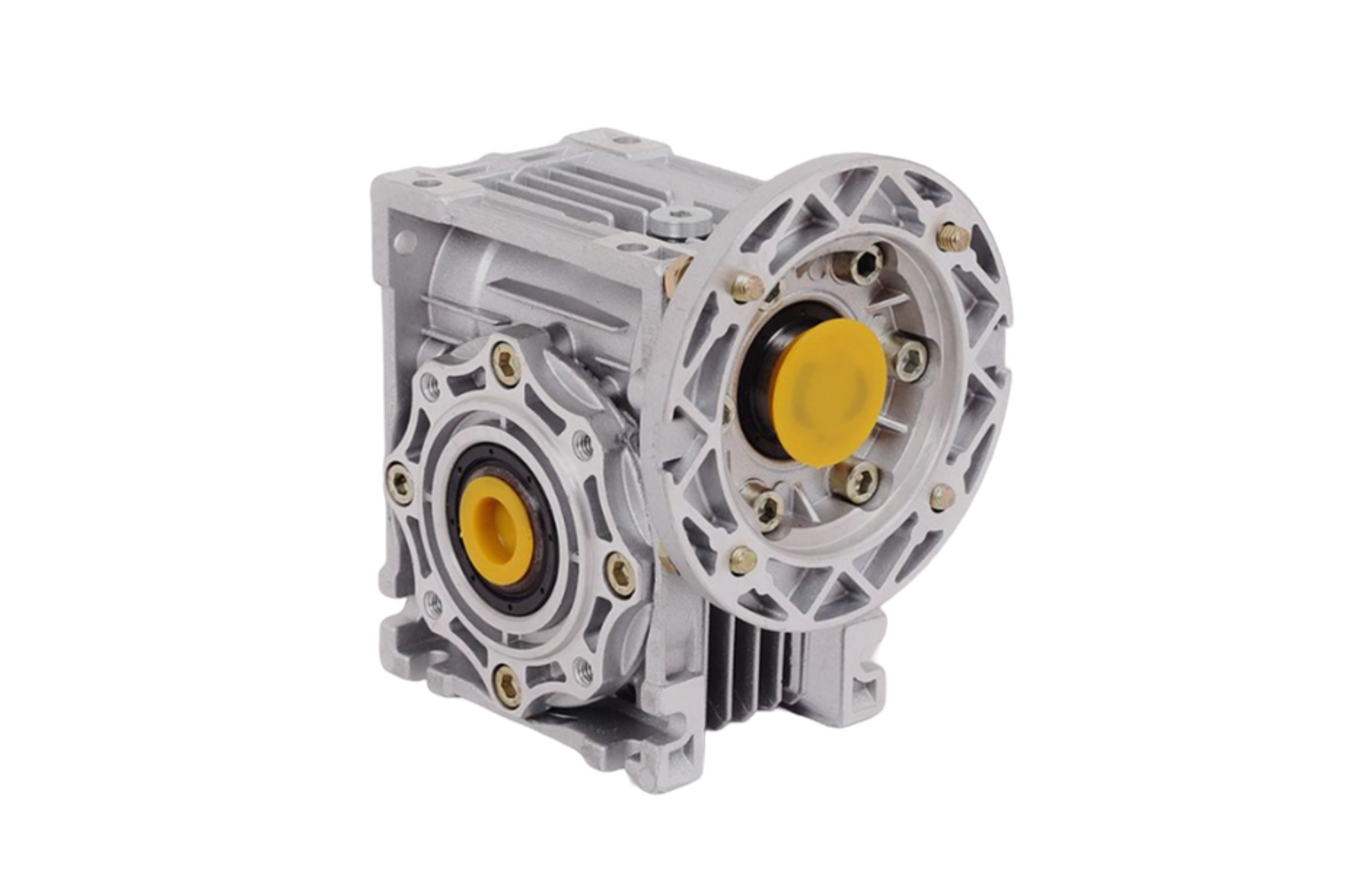

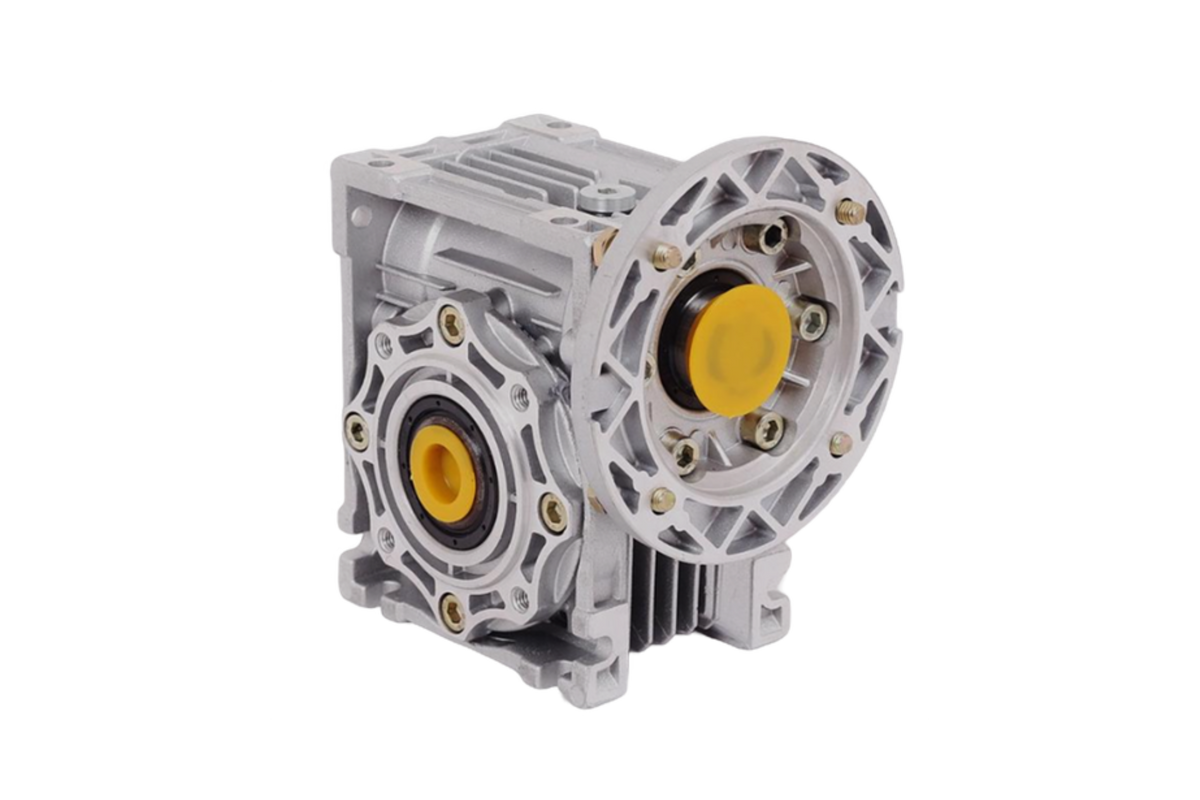

The Universal Motors UMSG130 50:1 worm gearbox is a single-reduction aluminium-housed 130mm centre-distance worm/wheel reducer with a 45mm hollow output bore. This gearbox can be paired with a TEFC IEC squirrel-cage motor, available in your choice of power and B5 motor mounting, in IEC frame sizes in IEC frame sizes 90/100/112/132. Use the motor power dropdown to match your application's torque and speed requirements.
Typical uses include heavy industrial conveyors, bulk handling, heavy mixers, specialist winching systems.
Interchangeable with: NMRV130, RV130, Motovario NMRV130, Bonfiglioli W110.
24-month manufacturer warranty. UK stock with next-day delivery.
| Input power | 1.5 kW |
|---|---|
| Input flange | B5 |
| IEC frame | 90 |
| Input speed | 1400 rpm |
| Ratio | 50:1 |
| Output speed | 29 rpm |
| Output torque | 383.7 Nm |
| Nominal torque | 972 Nm |
| Max output torque | 1023.1 Nm |
| Service factor | 2.53 |
| Efficiency | 80% |
| Centre distance | 130 mm |
| Output bore | 45 mm |
| Type | Worm Gearbox |
| Housing material | Aluminium |
| Series | UMSG130 |
| Brand | Universal Motors |
| Warranty | 12 months manufacturer |
| SKU | IMW-UMSG130-50.0-1.5kW-B5 |
| Input power | 2.2 kW |
|---|---|
| Input flange | B5 |
| IEC frame | 100 |
| Input speed | 1400 rpm |
| Ratio | 50:1 |
| Output speed | 29 rpm |
| Output torque | 562.7 Nm |
| Nominal torque | 972 Nm |
| Max output torque | 1023.1 Nm |
| Service factor | 1.73 |
| Efficiency | 80% |
| Centre distance | 130 mm |
| Output bore | 45 mm |
| Type | Worm Gearbox |
| Housing material | Aluminium |
| Series | UMSG130 |
| Brand | Universal Motors |
| Warranty | 12 months manufacturer |
| SKU | IMW-UMSG130-50.0-2.2kW-B5 |
| Input power | 3 kW |
|---|---|
| Input flange | B5 |
| IEC frame | 100 |
| Input speed | 1400 rpm |
| Ratio | 50:1 |
| Output speed | 29 rpm |
| Output torque | 767.4 Nm |
| Nominal torque | 972 Nm |
| Max output torque | 1023.1 Nm |
| Service factor | 1.27 |
| Efficiency | 80% |
| Centre distance | 130 mm |
| Output bore | 45 mm |
| Type | Worm Gearbox |
| Housing material | Aluminium |
| Series | UMSG130 |
| Brand | Universal Motors |
| Warranty | 12 months manufacturer |
| SKU | IMW-UMSG130-50.0-3kW-B5 |
| Input power | 4 kW |
|---|---|
| Input flange | B5 |
| IEC frame | 112 |
| Input speed | 1400 rpm |
| Ratio | 50:1 |
| Output speed | 29 rpm |
| Output torque | 1023.1 Nm |
| Nominal torque | 972 Nm |
| Max output torque | 1023.1 Nm |
| Service factor | 0.95 |
| Efficiency | 80% |
| Centre distance | 130 mm |
| Output bore | 45 mm |
| Type | Worm Gearbox |
| Housing material | Aluminium |
| Series | UMSG130 |
| Brand | Universal Motors |
| Warranty | 12 months manufacturer |
| SKU | IMW-UMSG130-50.0-4kW-B5 |
Next working day to most of the UK, on a fully tracked courier - you'll have the tracking link the moment it leaves our racking.
★ 2pm Promise: place your order before 2pm and it is despatched the same working day. Guaranteed, not just aimed for.
We ship to 70+ countries with rates calculated live at checkout, so the price you see is the price you pay - no surprise invoice a week later. Moving several units, or need pallet freight? Get a freight quote on WhatsApp.
Specified the wrong one? Send it back within 14 days, unused and in its original packaging, and we'll refund it. Built-to-order and modified items are the one exception. Read the full returns policy →
4 × 1.5kW / B5 Flange on the shelf in our UK warehouse, boxed and ready to go out today.
6 × 2.2kW / B5 Flange on the shelf in our UK warehouse, boxed and ready to go out today.
6 × 3kW / B5 Flange on the shelf in our UK warehouse, boxed and ready to go out today.
3 × 4kW / B5 Flange on the shelf in our UK warehouse, boxed and ready to go out today.
The mounting type describes how the motor is fixed in place and how the shaft connects to your equipment. Choosing the right one ensures a direct, drop-in fit.
Still not sure? Message an engineer with your machine or existing motor's frame and we'll confirm the exact mounting for you.
