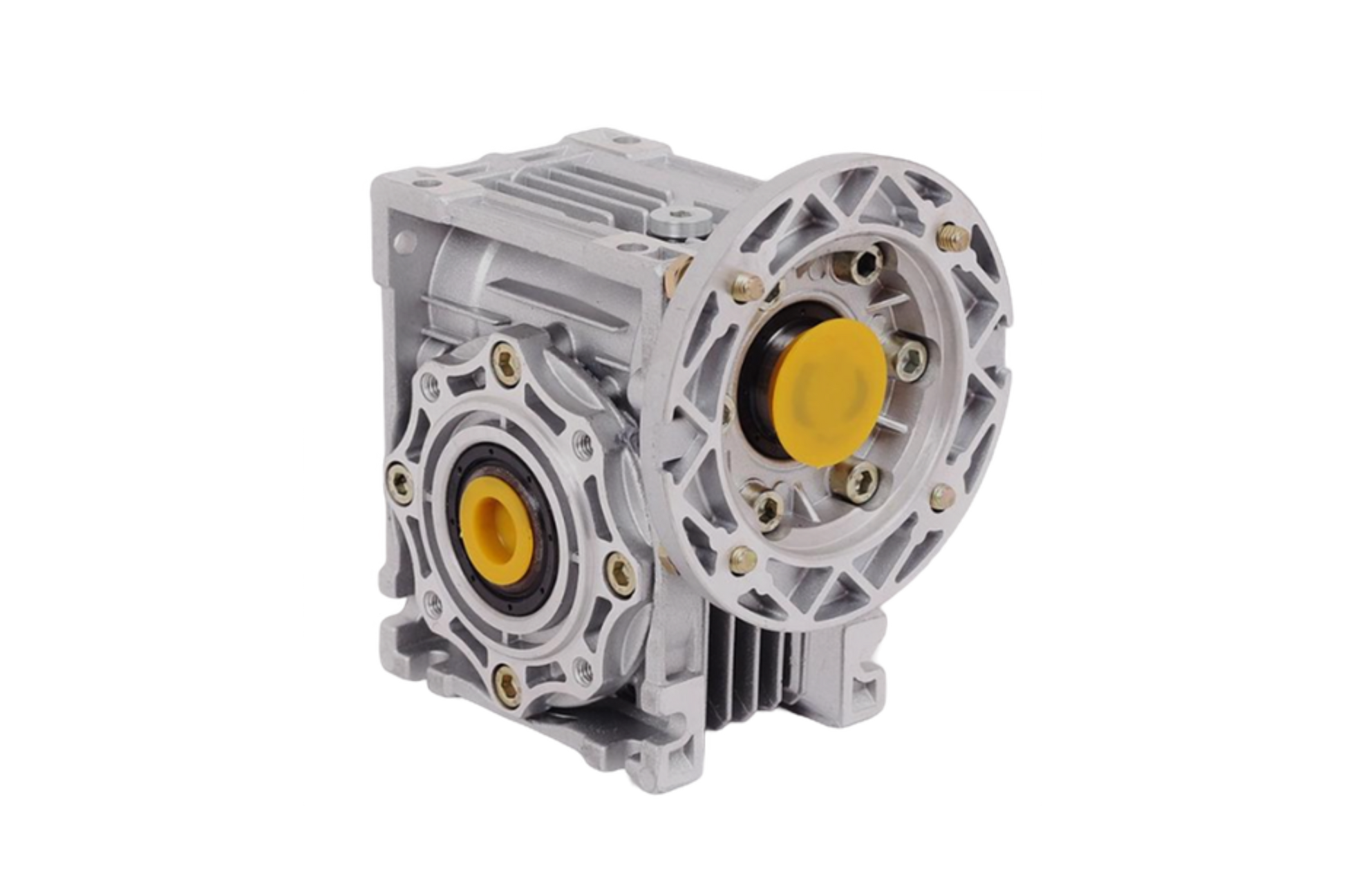

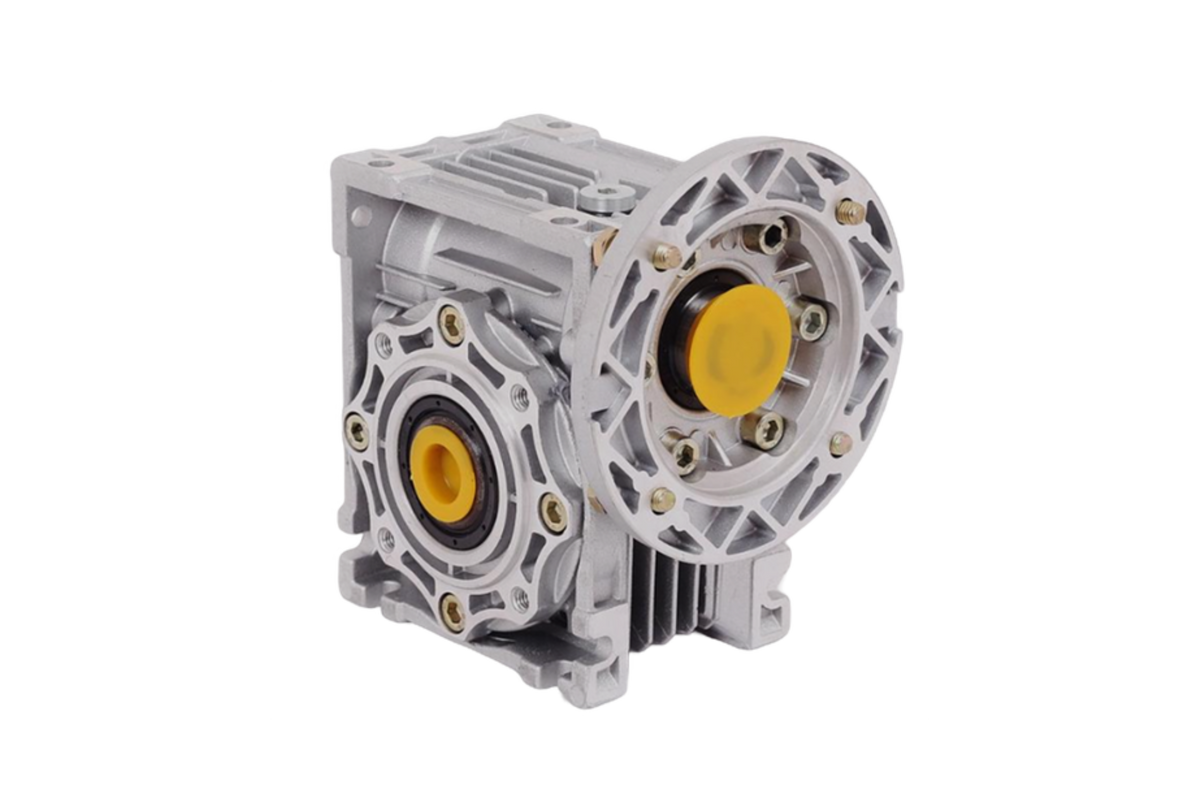

UMSG110 50:1 Worm Gearbox - 42mm Hollow Output Bore, IEC 80/90/100/112/132 Input, Aluminium
The Universal Motors UMSG110 50:1 worm gearbox is a single-reduction aluminium-housed 110mm centre-distance worm/wheel reducer with a 42mm hollow output bore. This gearbox can be paired with a TEFC IEC squirrel-cage motor, available in your choice of power and input flange - either B14 or B5 motor mounting, in IEC frame sizes 80/90/100/112/132. Use the motor power dropdown to match your application's torque and speed requirements.
Technical specification
- Frame: UMSG110 (centre distance 110mm)
- Reduction ratio: 50:1
- Output bore: 42mm hollow, reducing bushes available
- Input mounting: IEC 80/90/100/112/132 (B14 or B5 flange)
- Motor options: 1.1kW, 1.5kW, 2.2kW
- Housing: aluminium, B3 foot-mounted
- Worm: hardened and ground steel; wheel: centrifugally cast bronze
- Lubrication: synthetic long-life, factory filled
- Gearbox weight: 44.0kg
- Maximum output torque: 563 Nm (ratio-dependent)
- Duty: S1 continuous
Applications
Typical uses include heavy-duty conveyors, crushers, mixers, winches, heavy material handling.
Cross-reference
Interchangeable with: NMRV110, RV110, Motovario NMRV110, Bonfiglioli W110.
Warranty and delivery
24-month manufacturer warranty. UK stock with next-day delivery.
| Input power | 1.1 kW |
|---|---|
| Input flange | B14 |
| IEC frame | 90 |
| Input speed | 1400 rpm |
| Ratio | 50:1 |
| Output speed | 29 rpm |
| Output torque | 281.4 Nm |
| Nominal torque | 562.7 Nm |
| Max output torque | 562.7 Nm |
| Service factor | 2 |
| Efficiency | 80% |
| Centre distance | 110 mm |
| Output bore | 42 mm |
| Type | Worm Gearbox |
| Housing material | Aluminium |
| Series | UMSG110 |
| Brand | Universal Motors |
| Warranty | 12 months manufacturer |
| SKU | IMW-UMSG110-50.0-1.1kW-B14 |
| Input power | 1.1 kW |
|---|---|
| Input flange | B5 |
| IEC frame | 90 |
| Input speed | 1400 rpm |
| Ratio | 50:1 |
| Output speed | 29 rpm |
| Output torque | 281.4 Nm |
| Nominal torque | 562.7 Nm |
| Max output torque | 562.7 Nm |
| Service factor | 2 |
| Efficiency | 80% |
| Centre distance | 110 mm |
| Output bore | 42 mm |
| Type | Worm Gearbox |
| Housing material | Aluminium |
| Series | UMSG110 |
| Brand | Universal Motors |
| Warranty | 12 months manufacturer |
| SKU | IMW-UMSG110-50.0-1.1kW-B5 |
| Input power | 1.5 kW |
|---|---|
| Input flange | B14 |
| IEC frame | 90 |
| Input speed | 1400 rpm |
| Ratio | 50:1 |
| Output speed | 29 rpm |
| Output torque | 383.7 Nm |
| Nominal torque | 562.7 Nm |
| Max output torque | 562.7 Nm |
| Service factor | 1.47 |
| Efficiency | 80% |
| Centre distance | 110 mm |
| Output bore | 42 mm |
| Type | Worm Gearbox |
| Housing material | Aluminium |
| Series | UMSG110 |
| Brand | Universal Motors |
| Warranty | 12 months manufacturer |
| SKU | IMW-UMSG110-50.0-1.5kW-B14 |
| Input power | 1.5 kW |
|---|---|
| Input flange | B5 |
| IEC frame | 90 |
| Input speed | 1400 rpm |
| Ratio | 50:1 |
| Output speed | 29 rpm |
| Output torque | 383.7 Nm |
| Nominal torque | 562.7 Nm |
| Max output torque | 562.7 Nm |
| Service factor | 1.47 |
| Efficiency | 80% |
| Centre distance | 110 mm |
| Output bore | 42 mm |
| Type | Worm Gearbox |
| Housing material | Aluminium |
| Series | UMSG110 |
| Brand | Universal Motors |
| Warranty | 12 months manufacturer |
| SKU | IMW-UMSG110-50.0-1.5kW-B5 |
| Input power | 2.2 kW |
|---|---|
| Input flange | B14 |
| IEC frame | 100 |
| Input speed | 1400 rpm |
| Ratio | 50:1 |
| Output speed | 29 rpm |
| Output torque | 562.7 Nm |
| Nominal torque | 562.7 Nm |
| Max output torque | 562.7 Nm |
| Service factor | 1 |
| Efficiency | 80% |
| Centre distance | 110 mm |
| Output bore | 42 mm |
| Type | Worm Gearbox |
| Housing material | Aluminium |
| Series | UMSG110 |
| Brand | Universal Motors |
| Warranty | 12 months manufacturer |
| SKU | IMW-UMSG110-50.0-2.2kW-B14 |
| Input power | 2.2 kW |
|---|---|
| Input flange | B5 |
| IEC frame | 100 |
| Input speed | 1400 rpm |
| Ratio | 50:1 |
| Output speed | 29 rpm |
| Output torque | 562.7 Nm |
| Nominal torque | 562.7 Nm |
| Max output torque | 562.7 Nm |
| Service factor | 1 |
| Efficiency | 80% |
| Centre distance | 110 mm |
| Output bore | 42 mm |
| Type | Worm Gearbox |
| Housing material | Aluminium |
| Series | UMSG110 |
| Brand | Universal Motors |
| Warranty | 12 months manufacturer |
| SKU | IMW-UMSG110-50.0-2.2kW-B5 |
UK delivery
Next working day to most of the UK, on a fully tracked courier - you'll have the tracking link the moment it leaves our racking.
★ 2pm Promise: place your order before 2pm and it is despatched the same working day. Guaranteed, not just aimed for.
Shipping worldwide
We ship to 70+ countries with rates calculated live at checkout, so the price you see is the price you pay - no surprise invoice a week later. Moving several units, or need pallet freight? Get a freight quote on WhatsApp.
Returns
Specified the wrong one? Send it back within 14 days, unused and in its original packaging, and we'll refund it. Built-to-order and modified items are the one exception. Read the full returns policy →
Availability
7 × 1.1kW / B14 Face on the shelf in our UK warehouse, boxed and ready to go out today.
2 × 1.1kW / B5 Flange on the shelf in our UK warehouse, boxed and ready to go out today.
3 × 1.5kW / B14 Face on the shelf in our UK warehouse, boxed and ready to go out today.
4 × 1.5kW / B5 Flange on the shelf in our UK warehouse, boxed and ready to go out today.
2 × 2.2kW / B14 Face on the shelf in our UK warehouse, boxed and ready to go out today.
2 × 2.2kW / B5 Flange on the shelf in our UK warehouse, boxed and ready to go out today.
Which mounting do I need?
The mounting type describes how the motor is fixed in place and how the shaft connects to your equipment. Choosing the right one ensures a direct, drop-in fit.
- B3 (Foot) - bolts down through feet on the base. The most common general-purpose mounting.
- B5 (Flange) - a large machined flange with clearance holes bolts directly to your gearbox or machine face.
- B14 (Face) - a smaller spigot/face flange with tapped holes, for lighter direct-coupled loads.
- B35 / B34 - combination mountings that provide both feet and a flange for extra support.
Still not sure? Message an engineer with your machine or existing motor's frame and we'll confirm the exact mounting for you.
