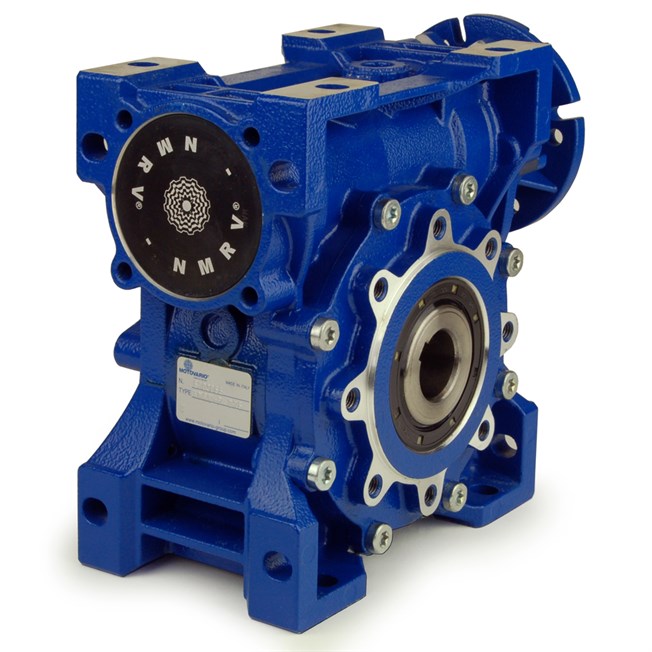

NMRV-P063 10:1 Worm Gearbox - 25mm Hollow Output Bore, IEC 71/80/90 Input, Aluminium

Drop-in replacement - standard IEC input flange and output shaft.
SKU: NMRV-P063-010-D71C
NMRV-P063 10:1 Worm Gearbox - 25mm Hollow Output Bore, IEC 71/80/90 Input, Aluminium

Datasheet

★ Free · Per-variant
CEUKCARoHS
£325.98 ex VAT
£391.18 inc. VAT
Motor Input
Order in - → despatched today, arrives tomorrow before 5pm
★ 2pm Promise: place your order before 2pm and it is despatched the same working day. Guaranteed, not just aimed for.
Not sure this is the right gearbox? Talk to a UK engineer. Average response < 5 min. 100% no-obligation
WhatsApp an engineer Call 0116 403 0175
Larger quantities? Get in touch for a custom quote.
Request a quote

The Motovario NMRV-P063 10:1 worm gearbox is a hybrid pre-stage worm reducer with a 63mm second-stage centre distance and a 25mm hollow output bore. The helical pre-stage delivers higher reduction in a smaller envelope than a standard NMRV063. Available with IEC 71/80/90 B14 motor input - select your motor frame from the dropdown. Supplied bare (no motor) with synthetic long-life lubrication.

Technical specification

  • Frame: NMRV-P063 (centre distance 63mm)
  • Reduction ratio: 10:1
  • Output bore: 25mm hollow (reducing bushes available)
  • Input mounting: IEC 71/80/90 B14 face flange
  • Housing: aluminium, B3 foot-mounted
  • Worm: hardened & ground steel; wheel: centrifugally cast bronze
  • Lubrication: synthetic long-life, factory filled
  • Approx. gearbox weight: 9.5kg
  • Duty: S1 continuous
  • Motovario part numbers: NMRV-P063-010-D71C, NMRV-P063-010-D80C, NMRV-P063-010-D90C

Applications

Conveyors, dosing pumps, mixers, label applicators, rotary tables, packaging machinery, light material handling.

Warranty and delivery

24-month Motovario manufacturer warranty. UK stock with next-day delivery.
