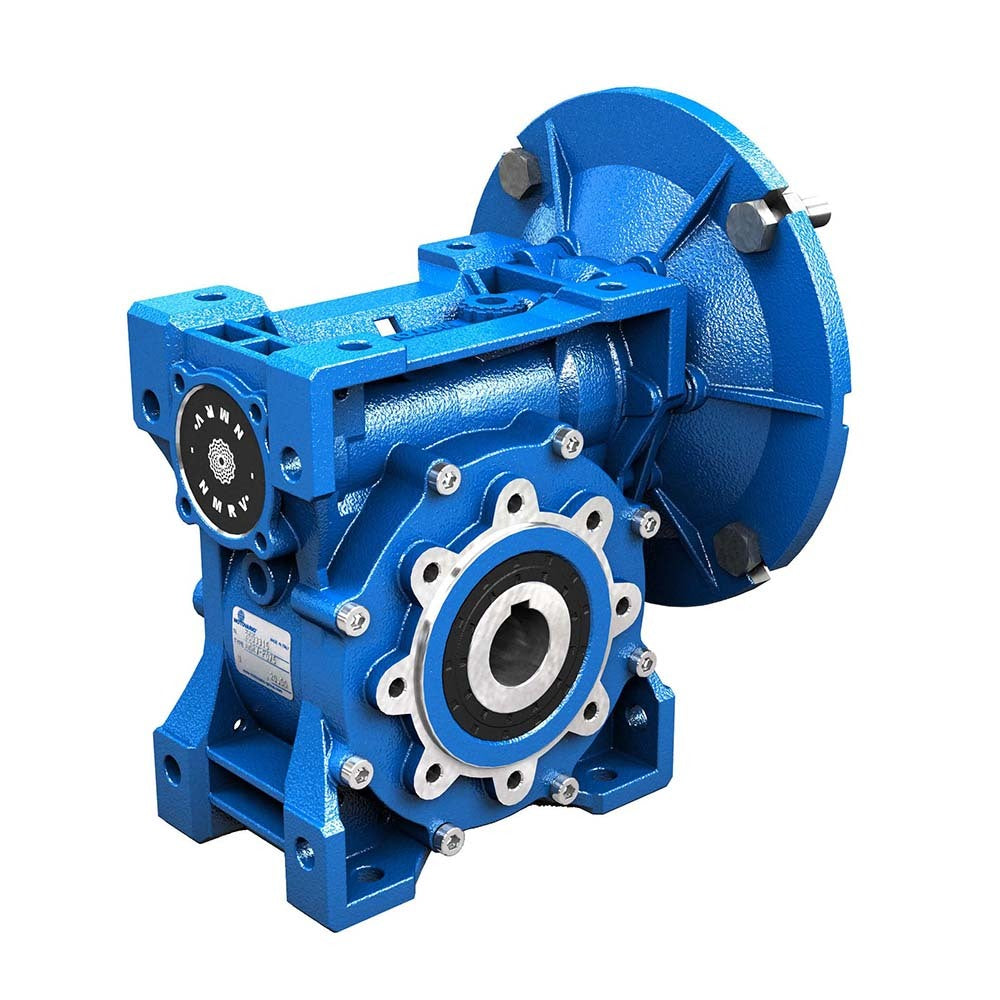

NMRV050 10:1 worm gearbox - 25mm hollow bore, IEC 71/80 B14 motor input
NMRV050 10:1 worm gearbox - 25mm hollow bore, IEC 71/80 B14 motor input

NMRV050 10:1 Worm Gearbox - 25mm Hollow Output Bore, IEC 71/80 Input, Aluminium

£220.68 GBP exc. VAT
£220.68 GBP
Shipping calculated at checkout.

The Motovario NMRV050 10:1 worm gearbox is a single-reduction, aluminium-housed 50mm centre-distance worm/wheel reducer with a 25mm hollow output bore. Available with IEC 71/80 B14 motor input - select your motor frame from the dropdown. Supplied bare (no motor) with synthetic long-life lubrication.

Technical specification

  • Frame: NMRV050 (centre distance 50mm)
  • Reduction ratio: 10:1
  • Output bore: 25mm hollow (reducing bushes available)
  • Input mounting: IEC 71/80 B14 face flange
  • Housing: aluminium, B3 foot-mounted
  • Worm: hardened & ground steel; wheel: centrifugally cast bronze
  • Lubrication: synthetic long-life, factory filled
  • Approx. gearbox weight: 5.5kg
  • Duty: S1 continuous
  • Motovario part numbers: NMRV050-010-D71C, NMRV050-010-D80C

Applications

Conveyors, dosing pumps, mixers, label applicators, rotary tables, packaging machinery, light material handling.

Warranty and delivery

24-month Motovario manufacturer warranty. UK stock with next-day delivery.
