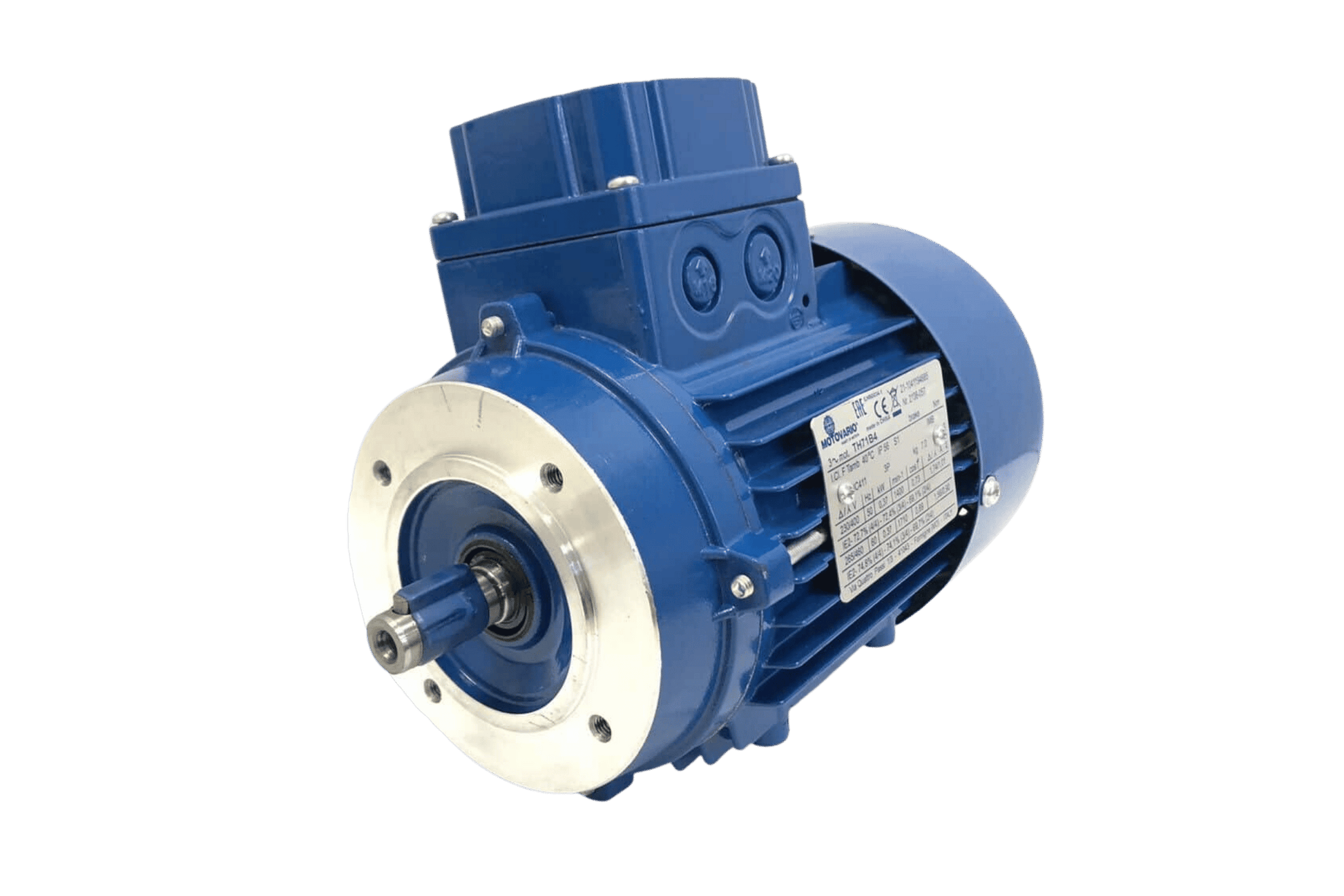

Motovario TH71B4 0.37 kW 4-Pole 71 Frame Three-Phase Motor (IE2) (B14 Face)

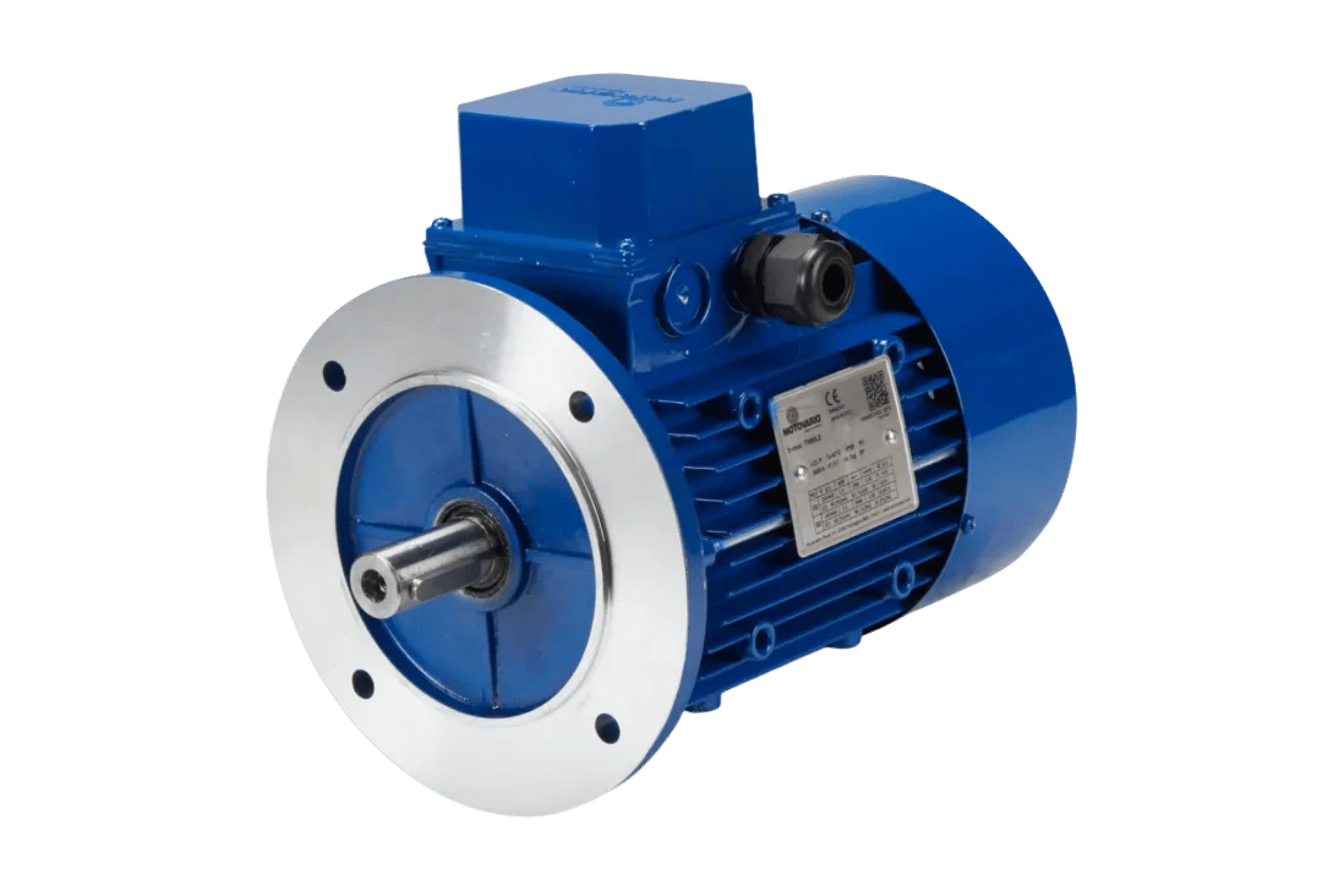

Motovario TH71B4 0.37 kW 4-Pole 71 Frame Three-Phase Motor (IE2) (B5 Flange)
Motovario TH71B4 0.37 kW 4-Pole 71 Frame Three-Phase Motor (IE2) (B14 Face)
Motovario TH71B4 0.37 kW 4-Pole 71 Frame Three-Phase Motor (IE2) (B5 Flange)
Motovario TH71B4 0.37 kW 4-Pole 71 Frame Three-Phase Motor (IE2) (B14 Face)
Motovario TH71B4 0.37 kW 4-Pole 71 Frame Three-Phase Motor (IE2) (B5 Flange)

Motovario TH71B4 0.37 kW 4-Pole 71 Frame Three-Phase Motor (IE2)

£144.48 GBP exc. VAT
£144.48 GBP
Shipping calculated at checkout.

The Motovario TH71B4 is a 0.37 kW 4-pole three-phase asynchronous motor in IEC 71 aluminium frame, available with B5 flange or B14 face mount. Supplied direct from Industrial Motor Warehouse with rapid UK and worldwide despatch.

Specification

Brand Motovario
Series M Series (TH-TBH)
Motor Type Code TH71B4
Rated Power 0.37 kW
Poles 4-Pole (1400 rpm @ 50 Hz)
Frame Size IEC 71
Mounting Options B5 (Flange) and B14 (Face) – select on variant picker
Voltage 230/400-265/460 V
Phase / Frequency 3-Phase / 50–60 Hz
Efficiency Class IE2
Rated Efficiency (4/4 load) 72.7%
Power Factor (cosφ) 0.73
Rated Current (400V) 1.01 A
Rated Torque 2.50 Nm
Insulation Class Class F
Protection IP55
Cooling IC411 (TEFC, self-ventilated)
Frame Material Aluminium
Flange Diameter Ø105
Shaft (DE) Ø14x30
Net Weight 7.0 kg
Country of Origin Italy

Features

  • IE2 efficiency class – meets EU minimum efficiency regulations (MEPS)
  • Aluminium frame – lightweight, corrosion-resistant, easy to handle and install
  • Suitable for variable-frequency drive (VFD) operation
  • Class F insulation – long winding and bearing life
  • IP55 protection – dust- and water-jet protected for harsh industrial environments
  • Dual-voltage (star/delta) connection, 50/60 Hz operation
  • Choice of B5 flange or B14 face mount on a single SKU page

Typical Applications

  • Pumps, fans and blowers
  • Conveyors and material-handling equipment
  • Compressors and packaging machinery
  • Machine tools and general-purpose industrial drives
  • Drop-in pairing with Motovario NMRV, NMRV-P and HW worm gearboxes

Datasheet & Drawings

Per-variant Motovario datasheet (full electrical, mechanical and dimensional drawings) available on the variant picker above. For technical assistance contact Industrial Motor Warehouse on +44 116 403 0175 or info@industrialmotorwarehouse.com.
