Motovario TH63B6 0.12 kW 6-Pole 63 Frame Three-Phase Motor (IE2)
Drop-in replacement - IEC frame dimensions.
SKU: AH63-00012-D63B14
£167.70
ex VAT
£201.24 inc. VAT
Mounting
Order in -
→ despatched today, arrives tomorrow before 5pm
★ 2pm Promise: place your order before 2pm and it is despatched the same working day. Guaranteed, not just aimed for.
Not sure this is the right motor?
Talk to a UK engineer. Average response < 5 min. 100% no-obligation
Larger quantities?
Get in touch for a custom quote.
The Motovario TH63B6 is a 0.12 kW 6-pole three-phase asynchronous motor in IEC 63 aluminium frame, available with B5 flange or B14 face mount. Supplied direct from Industrial Motor Warehouse with rapid UK and worldwide despatch.
Specification
| Brand | Motovario |
|---|---|
| Series | M Series (TH-TBH) |
| Motor Type Code | TH63B6 |
| Rated Power | 0.12 kW |
| Poles | 6-Pole (870 rpm @ 50 Hz) |
| Frame Size | IEC 63 |
| Mounting Options | B5 (Flange) and B14 (Face) – select on variant picker |
| Voltage | 230/400-265/460 V |
| Phase / Frequency | 3-Phase / 50–60 Hz |
| Efficiency Class | IE2 |
| Rated Efficiency (4/4 load) | 50.6% |
| Power Factor (cosφ) | 0.58 |
| Rated Current (400V) | 0.59 A |
| Rated Torque | 1.32 Nm |
| Insulation Class | Class F |
| Protection | IP55 |
| Cooling | IC411 (TEFC, self-ventilated) |
| Frame Material | Aluminium |
| Flange Diameter | Ø90 |
| Shaft (DE) | Ø11x23 |
| Net Weight | 5.1 kg |
| Country of Origin | Italy |
Features
- IE2 efficiency class – meets EU minimum efficiency regulations (MEPS)
- Aluminium frame – lightweight, corrosion-resistant, easy to handle and install
- Suitable for variable-frequency drive (VFD) operation
- Class F insulation – long winding and bearing life
- IP55 protection – dust- and water-jet protected for harsh industrial environments
- Dual-voltage (star/delta) connection, 50/60 Hz operation
- Choice of B5 flange or B14 face mount on a single SKU page
Typical Applications
- Pumps, fans and blowers
- Conveyors and material-handling equipment
- Compressors and packaging machinery
- Machine tools and general-purpose industrial drives
- Drop-in pairing with Motovario NMRV, NMRV-P and HW worm gearboxes
Datasheet & Drawings
Per-variant Motovario datasheet (full electrical, mechanical and dimensional drawings) available on the variant picker above. For technical assistance contact Industrial Motor Warehouse on +44 116 403 0175 or info@industrialmotorwarehouse.com.
| Power | 0.12 kW |
|---|---|
| Poles | 6 |
| Full-load speed | 870 rpm |
| Frequency | 50 Hz |
| Voltage | 230/400 V |
| Phase | 3-phase |
| Power factor (cos φ) | 0.58 |
| Efficiency class | IE2 |
| Efficiency | 50.6% |
| Protection rating | IP55 |
| Insulation class | F |
| Frame size | 63 |
| Frame material | Aluminium |
| Mounting | B14 |
| Weight | 5.1 kg |
| Series | M Series |
| Brand | Motovario |
| Motor type code | TH63B6 |
| Base part number | AH63-00012-D63 |
| Full part number | AH63-00012-D63B14 |
| Country of origin | Italy |
| Flange dim mm | Ø90 |
| Shaft dim mm | Ø11x23 |
| Warranty | 12 months manufacturer |
| SKU | AH63-00012-D63B14 |
| Power | 0.12 kW |
|---|---|
| Poles | 6 |
| Full-load speed | 870 rpm |
| Frequency | 50 Hz |
| Voltage | 230/400 V |
| Phase | 3-phase |
| Power factor (cos φ) | 0.58 |
| Efficiency class | IE2 |
| Efficiency | 50.6% |
| Protection rating | IP55 |
| Insulation class | F |
| Frame size | 63 |
| Frame material | Aluminium |
| Mounting | B5 |
| Weight | 5.1 kg |
| Series | M Series |
| Brand | Motovario |
| Motor type code | TH63B6 |
| Base part number | AH63-00012-D63 |
| Full part number | AH63-00012-D63B5 |
| Country of origin | Italy |
| Flange dim mm | Ø140 |
| Shaft dim mm | Ø11x23 |
| Warranty | 12 months manufacturer |
| SKU | AH63-00012-D63B5 |
UK delivery
Next working day to most of the UK, on a fully tracked courier - you'll have the tracking link the moment it leaves our racking.
★ 2pm Promise: place your order before 2pm and it is despatched the same working day. Guaranteed, not just aimed for.
Shipping worldwide
We ship to 70+ countries with rates calculated live at checkout, so the price you see is the price you pay - no surprise invoice a week later. Moving several units, or need pallet freight? Get a freight quote on WhatsApp.
Returns
Specified the wrong one? Send it back within 14 days, unused and in its original packaging, and we'll refund it. Built-to-order and modified items are the one exception. Read the full returns policy →
Availability
7 × B14 Face mounting on the shelf in our UK warehouse, boxed and ready to go out today.
4 × B5 Flange mounting on the shelf in our UK warehouse, boxed and ready to go out today.
Which mounting do I need?
The mounting type describes how the motor is fixed in place and how the shaft connects to your equipment. Choosing the right one ensures a direct, drop-in fit.
- B3 (Foot) - bolts down through feet on the base. The most common general-purpose mounting.

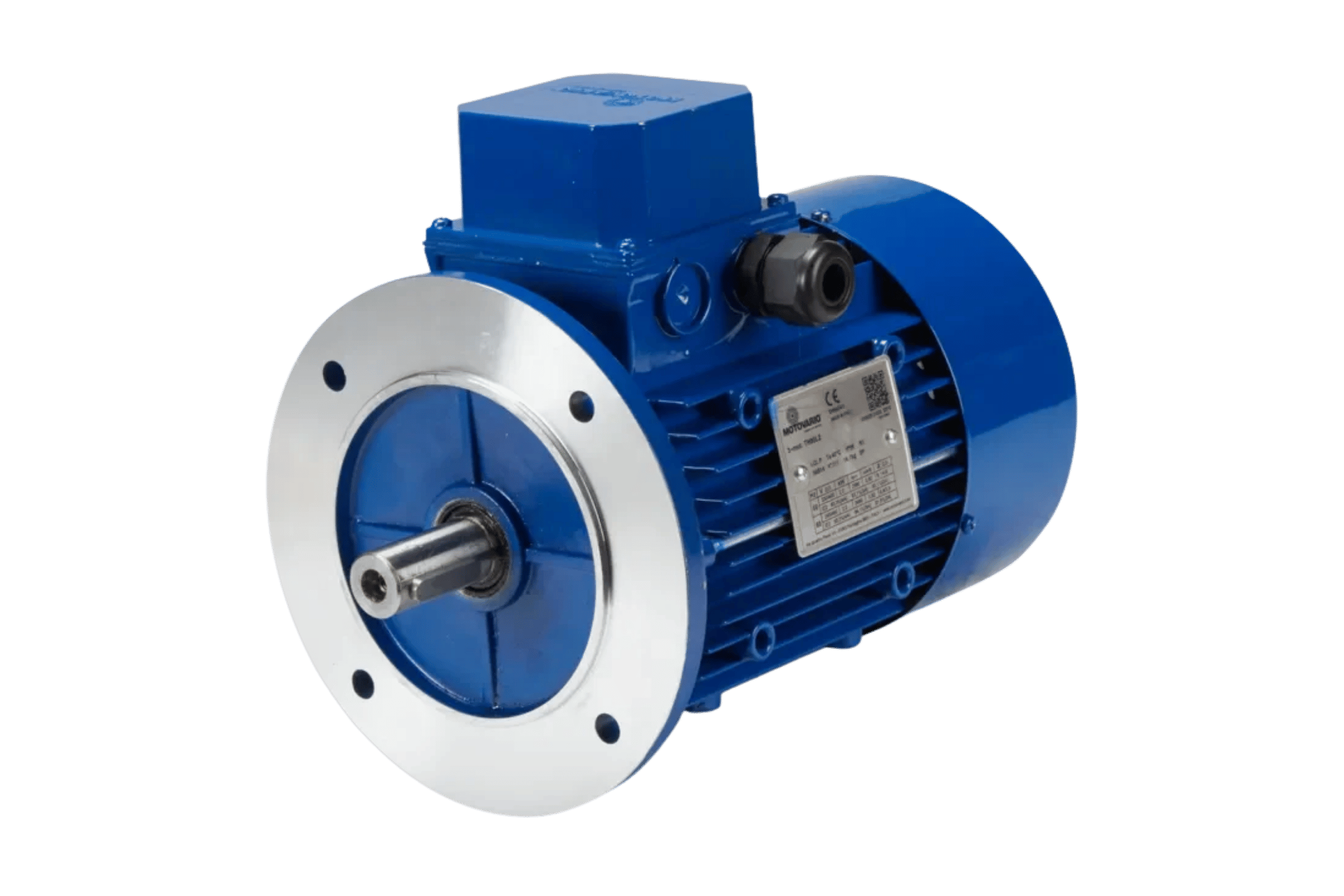

- B5 (Flange) - a large machined flange with clearance holes bolts directly to your gearbox or machine face.

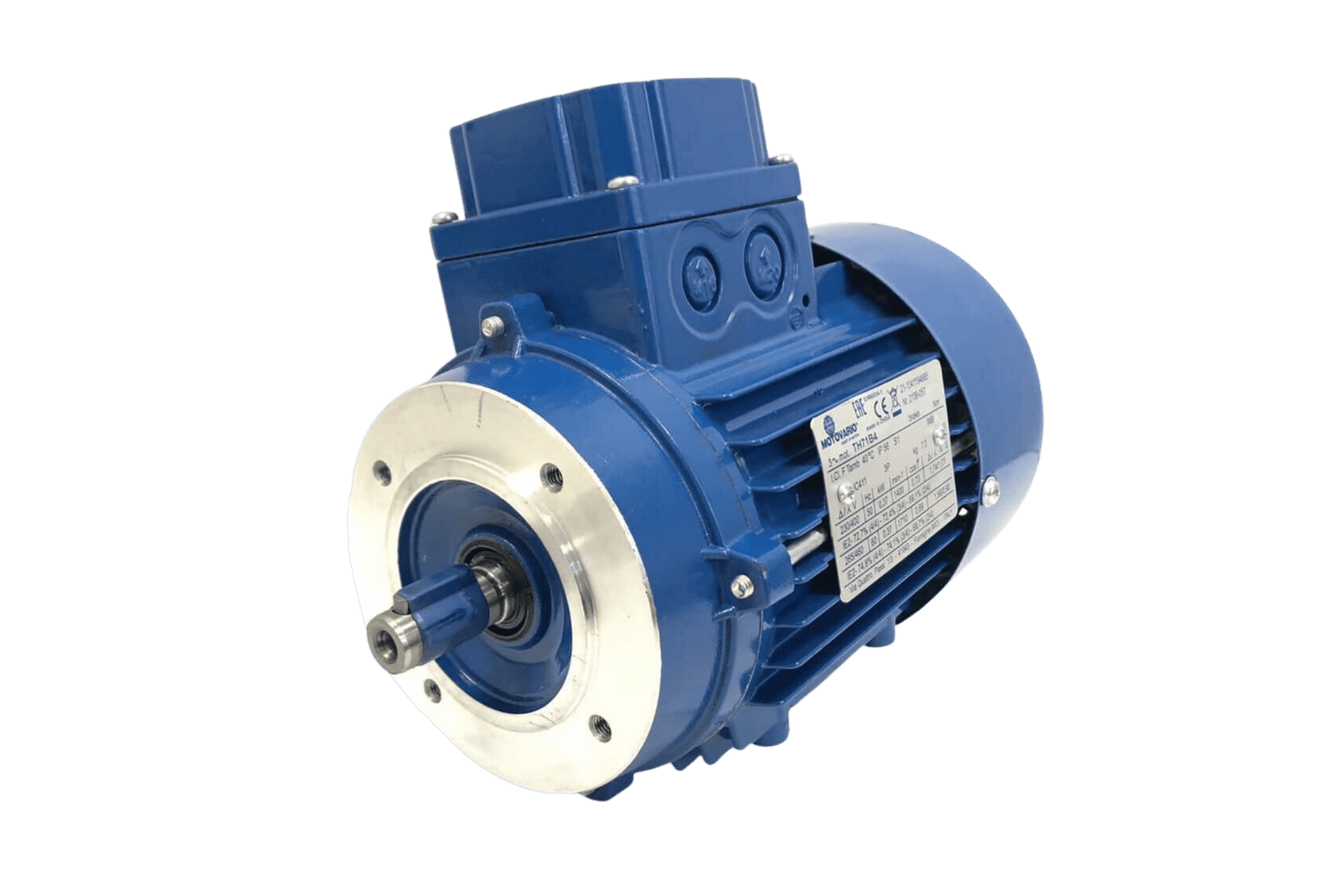

- B14 (Face) - a smaller spigot/face flange with tapped holes, for lighter direct-coupled loads.
- B35 / B34 - combination mountings that provide both feet and a flange for extra support.
Still not sure? Message an engineer with your machine or existing motor's frame and we'll confirm the exact mounting for you.
