Lenze I55AE215F10V10000S (16064940) i550-C1.5/400-3 - 1.5 kW Three Phase 400 V Frequency Inverter (i550)
Direct swap - standard panel footprint and terminal layout.
SKU: 16064940
£868.00
ex VAT
£1,041.60 inc. VAT
Availability
Only 2 left in stock
In our UK warehouse, ready to despatch today
Order in -
→ despatched today, arrives tomorrow before 5pm
★ 2pm Promise: place your order before 2pm and it is despatched the same working day. Guaranteed, not just aimed for.
Not sure this is the right drive?
Talk to a UK engineer. Average response < 5 min. 100% no-obligation
Larger quantities?
Get in touch for a custom quote.

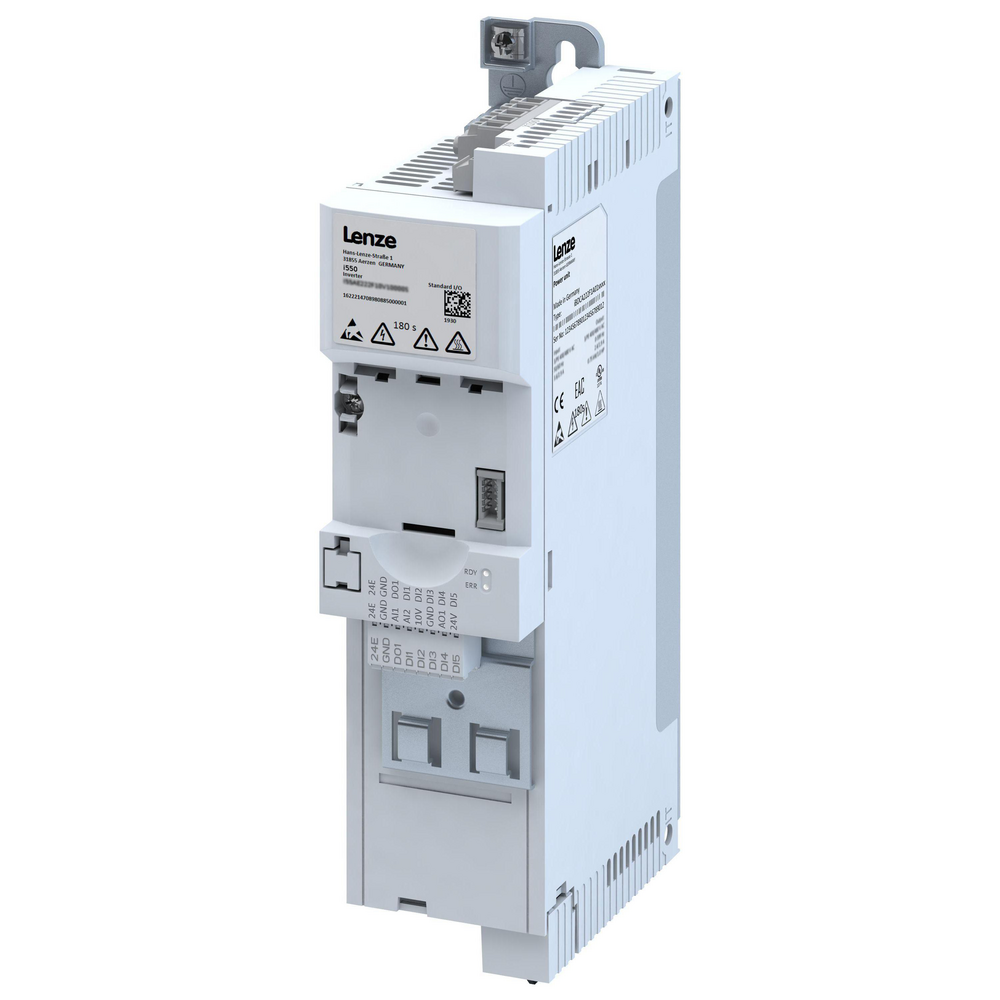

The Lenze I55AE215F10V10000S (i550-C1.5/400-3) is a 1.5 kW three-phase frequency inverter from the i550 cabinet series, designed for control-cabinet installation in machine and plant engineering applications. Mains: 3/PE 400/480 V AC. Output: 3-phase variable frequency to the motor. IP20, integrated RFI filter, Standard I/O. Lenze material number 16064940.
Previous material number: 15938513
| Power | 1.5 kW |
|---|---|
| Power (HP) | 2 HP |
| Rated output current | 3.9 A |
| Supply voltage | 400 / 480 V AC |
| Supply phase | Three-phase |
| Output frequency | 0–599 Hz |
| RFI filter | Integrated |
| IP rating | IP20 |
| Weight | 1.51 kg |
| Series | i550 |
| Brand | Lenze |
| Manufacturer part no. | I55AE215F10V10000S |
| Warranty | 12 months manufacturer |
| SKU | 16064940 |
UK delivery
Next working day to most of the UK, on a fully tracked courier - you'll have the tracking link the moment it leaves our racking.
★ 2pm Promise: place your order before 2pm and it is despatched the same working day. Guaranteed, not just aimed for.
Shipping worldwide
We ship to 70+ countries with rates calculated live at checkout, so the price you see is the price you pay - no surprise invoice a week later. Moving several units, or need pallet freight? Get a freight quote on WhatsApp.
Returns
Specified the wrong one? Send it back within 14 days, unused and in its original packaging, and we'll refund it. Built-to-order and modified items are the one exception. Read the full returns policy →
Availability
2 × Three Phase / Three Phase / IP20 on the shelf in our UK warehouse, boxed and ready to go out today.
Which mounting do I need?
The mounting type describes how the motor is fixed in place and how the shaft connects to your equipment. Choosing the right one ensures a direct, drop-in fit.
- B3 (Foot) - bolts down through feet on the base. The most common general-purpose mounting.
- B5 (Flange) - a large machined flange with clearance holes bolts directly to your gearbox or machine face.
- B14 (Face) - a smaller spigot/face flange with tapped holes, for lighter direct-coupled loads.
- B35 / B34 - combination mountings that provide both feet and a flange for extra support.
Still not sure? Message an engineer with your machine or existing motor's frame and we'll confirm the exact mounting for you.
