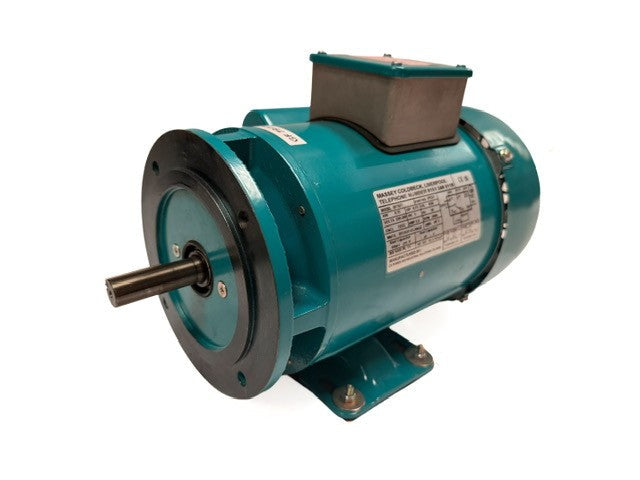

Crompton Greaves 0.25 kW 4-Pole B56 Three-Phase TEFV Motor (IM361)
Drop-in replacement - IEC frame dimensions.
SKU: IM361
£165.00
ex VAT
£198.00 inc. VAT
Availability
In stock
In our UK warehouse, ready to despatch today
Order in -
→ despatched today, arrives tomorrow before 5pm
★ 2pm Promise: place your order before 2pm and it is despatched the same working day. Guaranteed, not just aimed for.
Not sure this is the right motor?
Talk to a UK engineer. Average response < 5 min. 100% no-obligation
Larger quantities?
Get in touch for a custom quote.
The Crompton Greaves IM361 0.25 kW (0.34 HP) 4-pole three-phase B56 motor is a general-purpose induction motor in a Totally Enclosed Fan Ventilated (TEFV) enclosure, rated IP44. Supplied direct from Industrial Motor Warehouse with fast UK and worldwide despatch.
- Output: 0.25 kW (0.34 HP)
- Poles / Speed: 4-pole, 1425 rpm (full load)
- Phase: Three-Phase
- Voltage: 380/415 V, 50 Hz
- Frame: B56 (NEMA 56 frame size)
- Enclosure: Totally Enclosed Fan Ventilated (TEFV) – IP44
- Mounting: B35 Foot & Flange
- Shaft diameter: 5/8" (15.9 mm)
Part number IM361. Class F insulation. Every motor is supplied with its Crompton Greaves B56 datasheet.
Cross-reference: Crompton Greaves model GF7953 · GF7743.
| Power | 0.25 kW |
|---|---|
| Poles | 4 |
| Full-load speed | 1425 rpm |
| Frequency | 50 Hz |
| Voltage | 380/415 V |
| Phase | 3-phase |
| Protection rating | IP44 |
| Insulation class | F |
| Frame size | B56 |
| Mounting | Foot/Flange |
| Series | General Purpose |
| Brand | Crompton Greaves |
| Motor type code | IM361 |
| Base part number | IM361 |
| Full part number | IM361 |
| Country of origin | India |
| Also known as | ["GF7953","GF7743"] |
| Shaft dim mm | 5/8" (15.9 mm) |
| Warranty | 12 months manufacturer |
| SKU | IM361 |
UK delivery
Next working day to most of the UK, on a fully tracked courier - you'll have the tracking link the moment it leaves our racking.
★ 2pm Promise: place your order before 2pm and it is despatched the same working day. Guaranteed, not just aimed for.
Shipping worldwide
We ship to 70+ countries with rates calculated live at checkout, so the price you see is the price you pay - no surprise invoice a week later. Moving several units, or need pallet freight? Get a freight quote on WhatsApp.
Returns
Specified the wrong one? Send it back within 14 days, unused and in its original packaging, and we'll refund it. Built-to-order and modified items are the one exception. Read the full returns policy →
Availability
Foot/Flange mounting is available and ready to go out today.
Which mounting do I need?
The mounting type describes how the motor is fixed in place and how the shaft connects to your equipment. Choosing the right one ensures a direct, drop-in fit.
- B3 (Foot) - bolts down through feet on the base. The most common general-purpose mounting.
- B5 (Flange) - a large machined flange with clearance holes bolts directly to your gearbox or machine face.
- B14 (Face) - a smaller spigot/face flange with tapped holes, for lighter direct-coupled loads.
- B35 / B34 - combination mountings that provide both feet and a flange for extra support.
Still not sure? Message an engineer with your machine or existing motor's frame and we'll confirm the exact mounting for you.
